Bomag BF 700 C-2 Paver Operating and Maintenance Instructions 00820030

$20.00

Type Of Manual: Operating and Maintenance Instructions
Manual ID: 00820030
Format: PDF
Size: 8.9MB
Number of Pages: 220
Serial Number:
821892051001 and up

Category: Bomag Operator Manual PDF

Model List:
- BF 700 C-2 Paver

1. Table of contents
2. Introduction
2.1. Foreword
2.2. Machine type plate and engine type plate
3. Technical data
3.1. Noise and vibration data
4. Concerning your safety
4.1. General prerequisites
4.2. Definition of responsible persons
4.3. Basic safety regulations for safe operation
4.4. Handling fuels and lubricants
4.5. Loading/transporting the machine
4.6. Taking the machine into service
4.7. Driving the machine, working operation
4.8. Refuelling
4.9. Topping up AdBlue/DEF
4.10. What to do in events of emergency
4.11. Maintenance work
4.12. Repair
4.13. Stickers and decals
5. Display and control elements
5.1. Operators stand
5.2. Outside of machine
5.3. Outside control panels
5.4. Screed operating console
5.5. Operating console for screed heating
6. Tests before taking into operation
6.1. Notes on safety
6.2. Visual inspections and function tests
6.3. Checking the engine oil level
6.4. Checking the fuel level, topping up fuel
6.5. Checking the AdBlue/DEF level, topping up
6.6. Checking the hydraulic oil level
6.7. Checking the coolant level
6.8. Checking the emulsion level, topping up
6.9. Lubricating the machine
6.10. Check the grease supply in the central lubrication system
7. Operation
7.1. Settingup the work place
7.2. Start the engine
7.3. Driving the machine in transport mode
7.4. Braking the machine
7.5. Preparing for work
7.6. Operation
7.7. Park the machine in secured condition.
7.8. Adjusting the auger height
7.9. Operating the screed
7.10. Operating the screed heating
7.11. Operating the protection roof
7.12. Emergency procedures
8. Loading / transporting the machine
8.1. Prepare for transport
8.2. Loading the machine
8.3. Lashing the machine to the transport vehicle
8.4. Loading by crane
9. Maintenance
9.1. Preliminary remarks and safety notes

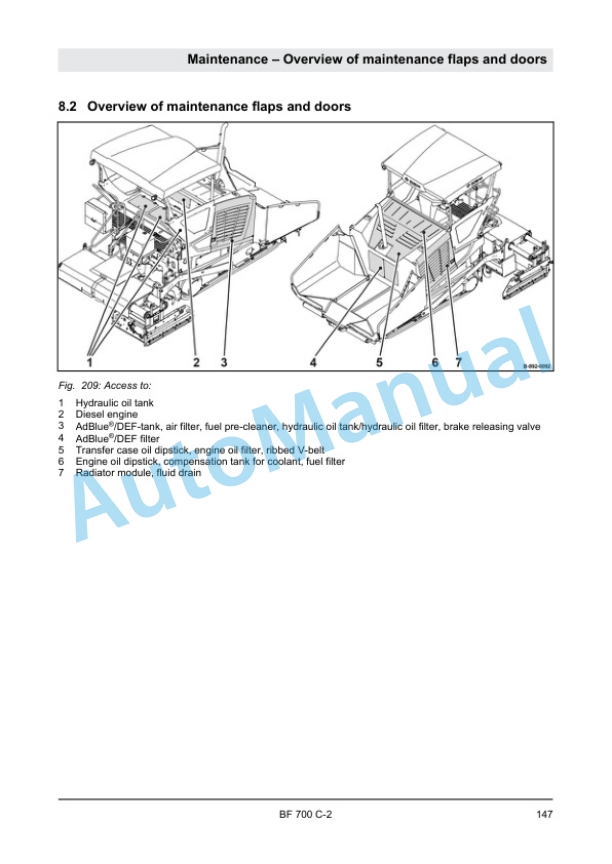

9.2. Overview of maintenance flaps and doors
9.3. Fuels and lubricants
9.4. List of fuels and lubricants
9.5. Runningin instructions
9.6. Maintenance table
9.7. Every 50 operating hours

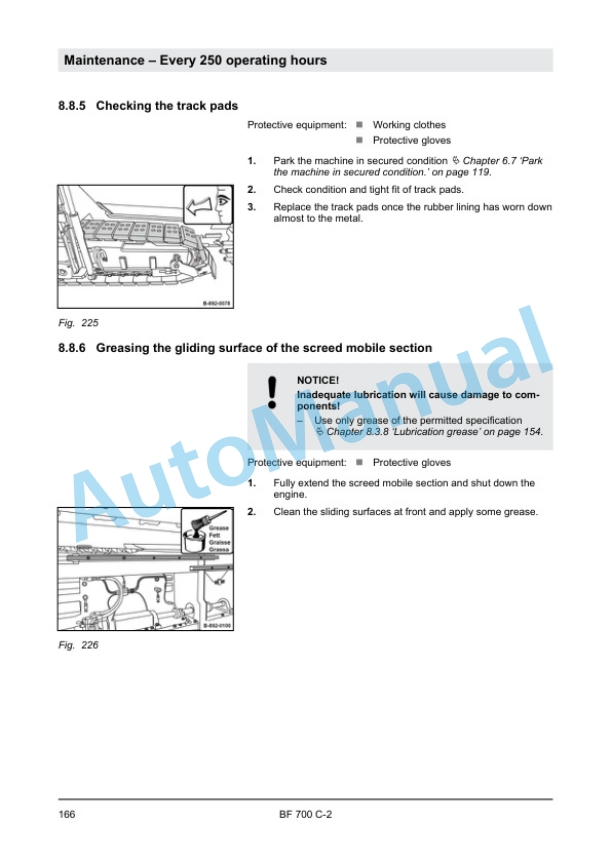

9.8. Every 250 operating hours

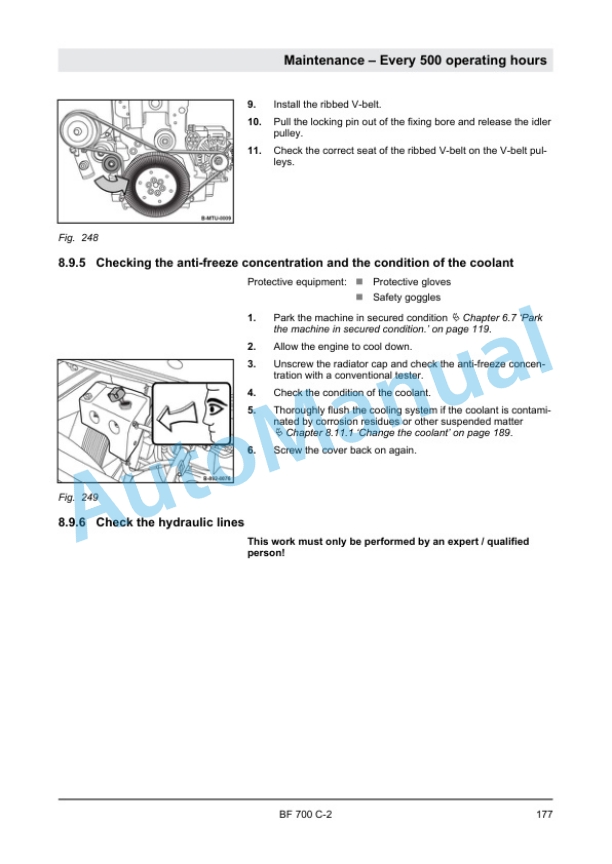

9.9. Every 500 operating hours
9.10. Every 1000 operating hours
9.11. Every 2000 operating hours
9.12. As required
10. Troubleshooting
10.1. Preliminary remarks
10.2. Starting the engine with jump leads
10.3. Screed heating fault code display
10.4. Fuse assignment
10.5. Fault code display in the LCDisplay unit
10.6. Engine faults
11. Waste disposal
11.1. Final shutdown of machine
12. List of special tools
