Hyster B60Z (A230), B80Z (A233) Rider Parts Manual

Hyster B60Z (A230), B80Z (A233) Rider Parts Manual - Image 2

Hyster B60Z (A230), B80Z (A233) Rider Parts Manual - Image 3

Hyster B60Z (A230), B80Z (A233) Rider Parts Manual - Image 4

Hyster B60Z (A230), B80Z (A233) Rider Parts Manual - Image 5

hyster b60z a230 b80z a233 rider parts manual 2

hyster b60z a230 b80z a233 rider parts manual 3

Hyster B60Z (A230), B80Z (A233) Rider Parts Manual

$30.00

Type Of Manual: Parts Manual
Number of Pages: 168
Size: 3.0MB
Format: PDF

Category: Hyster Parts Manual PDF

Model List:
- B60Z (A230), B80Z (A233) Rider

1. FRAME/DRIVE UNIT
1.1. GENERAL TRUCK DRIVE END
1.2. BATTERY RETENTION
1.3. BATTERY RETENTION FOOD PROCESSING – A233
1.4. DECAL AND PLATE LOCATION
1.5. BATTERY DISCONNECT
1.6. MASTER DRIVE UNIT A230 ( S/N A230N02081Y)
1.7. MASTER DRIVE UNIT A230 (S/N A230N02082Y )
1.8. MASTER DRIVE UNIT A233 ( S/N A233N02475B)
1.9. MASTER DRIVE UNIT A233 (S/N A233N02476B 6/2008)
1.10. MASTER DRIVE UNIT A233 (6/2008 )
1.11. DRIVE UNIT ASSEMBLY A230 ( S/N A230N02081Y)
1.12. DRIVE UNIT ASSEMBLY A230 (S/N A230N02082Y )
1.13. DRIVE UNIT ASSEMBLY A233
2. ELECTRICAL SYSTEM
2.1. CONTROL PANEL ASSEMBLY ARCTIC
2.2. CONTROL PANEL ASSEMBLY
2.3. CONTROL PANEL ASSEMBLY A233 – ALL – A230 (S/N A230N02082Y )
2.4. TRACTION MOTOR A230 ( S/N A230N02082Y)
2.5. TRACTION MOTOR A230 (S/N A230N02082Y )
2.6. TRACTION MOTOR A233 – EE/FOOD PROCESSING ( S/N A233N02370B Standard)
2.7. TRACTION MOTOR A233 – STANDARD (S/N A233N02371B )
3. STEER HANDLE/BRAKE SYSTEM
3.1. ELECTRIC BRAKE A230 ( S/N A230N02081Y)
3.2. ELECTRIC BRAKE A230 (S/N A230N02082Y )
3.3. ELECTRIC BRAKE A233
3.4. STEER HANDLE ARM ASSEMBLY
3.5. STEER HANDLE SWIVEL ASSEMBLY
3.6. STEER HANDLE ASSEMBLY
3.7. AUXILIARY CONTROL BOX
4. LIFT LINKAGE AND FORKS
4.1. LIFT LINKAGE
4.2. LIFT LINKAGE FOOD PROCESSING
4.3. CASTER ASSEMBLY A230 ( 10/2001)
4.4. CASTER ASSEMBLY A233 – ALL – A230 – 10/2001 >

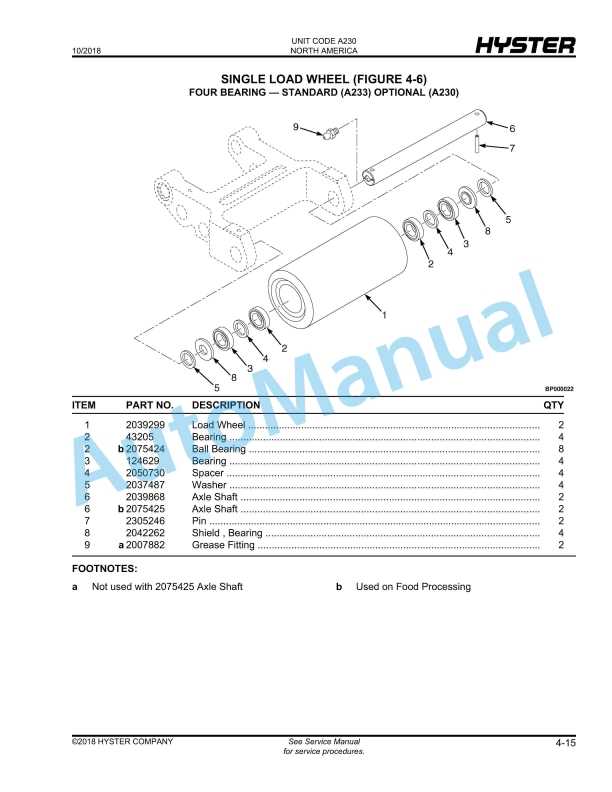

4.5. SINGLE LOAD WHEEL TWO BEARING – STANDARD (A230) OPTIONAL (A233)
4.6. SINGLE LOAD WHEEL FOUR BEARING – STANDARD (A233) OPTIONAL (A230)
4.7. LOAD WHEEL DUAL OPTION
5. HYDRAULIC SYSTEM
5.1. HYDRAULIC ASSEMBLY A230
5.2. HYDRAULIC ASSEMBLY A233
5.3. HYDRAULIC POWER UNIT A230
5.4. HYDRAULIC POWER UNIT A233
5.5. LIFT CYLINDER ASSEMBLY

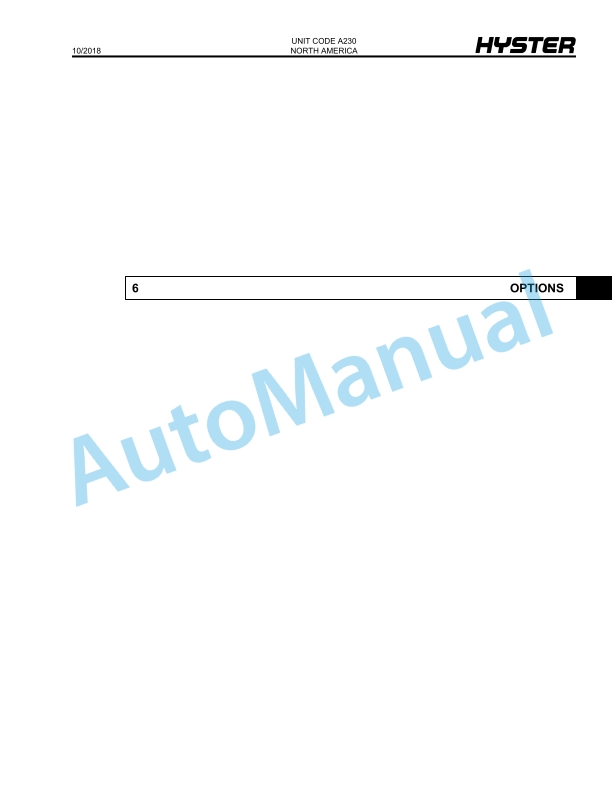

6. OPTIONS
6.1. FORK WELDMENT AND PULL ROD OPTIONS
6.2. FORK WELDMENT OPTIONS FOOD PROCESSING
6.3. DOUBLE PALLET FORK OPTION A233 – 13.4 IN. BATTERY BOX
6.4. DOUBLE PALLET FORK OPTION FOOD PROCESSING – A233
6.5. SIDE GLIDE OPTION
6.6. LOAD BACKREST OPTION
6.7. BATTERY ROLLERS OPTION
6.8. HEAVY DUTY CASTER OPTION
6.9. HEAVY DUTY CASTER OPTION
6.10. HEAVY DUTY CASTER OPTION
6.11. LOAD WHEEL DUAL OPTION
6.12. CONVENIENCE TRAY OPTION
6.13. DIAGNOSTIC HANDSET
7. FIELD SERVICE KITS
7.1. COLD STORAGE HANDLE HEATER KITS
8. NUMERICAL INDEX
