Hyster E070-120Z (D098) Parts Manual

$30.00

Type Of Manual: Parts Manual
Number of Pages: 372
Size: 6.6MB
Format: PDF

Category: Hyster Parts Manual PDF

Model List:
- E070-120Z (D098)

1. FLOOR PLATES AND COVERS
2. EE/CRE INSTALLATION
3. BATTERY SPACER
4. NON-SUSPENSION SEAT
5. SEMI-SUSPENSION SEAT
6. FULL SUSPENSION SEAT SHEET 1 OF 2
7. FULL SUSPENSION SEAT SHEET 2 OF 2
8. FULL SUSPENSION SWIVEL SEAT
9. OVERHEAD GUARD WITH CURVED LEG
10. COUNTERWEIGHT
11. LOAD BACKREST EXTENSION
12. FORKS CLASS III
13. FORKS CLASS IV
14. ELECTRICAL SYSTEM
14.1. ELECTRICAL SYSTEM
14.2. CONTROL PANEL 36/48 VOLT
14.3. CONTROL PANEL 72/80 VOLT
14.4. CONTACTOR PANEL
14.5. CONTACTOR POWER STEERING
14.6. LINE CONTACTOR
14.7. WIRE HARNESS MAIN CONTROL – SHEET 1 0F 2 ( S/N D098N01717C)
14.8. WIRE HARNESS MAIN CONTROL – SHEET 2 OF 2 ( S/N D098N01717C)
14.9. WIRE HARNESS MAIN CONTROL – SHEET 1 0F 2 (S/N D098N01718C )
14.10. WIRE HARNESS MAIN CONTROL – SHEET 2 OF 2 (S/N D098N01718C )
14.11. WIRE HARNESS 80 VOLT MAIN CONTROL – SHEET 1 OF 2
14.12. WIRE HARNESS 80 VOLT MAIN CONTROL – SHEET 2 OF 2
14.13. WIRE HARNESS DASH DISPLAY
14.14. WIRE HARNESS LIGHTS ( S/N D098N02036D)
14.15. WIRE HARNESS LIGHTS (S/N D098N02037D )
14.16. BRAKE SWITCH HARNESS
15. DRIVE UNIT
15.1. DRIVE TIRE AND WHEEL
15.2. DRIVE AXLE
15.3. TRANSMISSION ASSEMBLY
15.4. TRACTION MOTOR
16. STEERING SYSTEM
16.1. STEER AXLE
16.2. STEER CYLINDER
16.3. STEERING MOTOR AND PUMP
16.4. GEAR PUMP
16.5. STEERING COLUMN
16.6. STEERING PUMP
16.7. SHIFT LEVER
16.8. STEER TIRE AND WHEEL
17. BRAKE/ACCELERATOR SYSTEM
17.1. PARK BRAKE LEVER ACTUATED
17.2. PARK BRAKE LINKAGE SEAT ACTUATED ( S/N D098N01898D)
17.3. PARK BRAKE LINKAGE SEAT ACTUATED (S/N D098N01899D )
17.4. BRAKE ASSEMBLY SEAT ACTUATED
17.5. BRAKE PRESSURE SWITCH
17.6. BRAKE LINKAGE
17.7. BRAKE ASSEMBLY
17.8. BRAKE ASSEMBLY ALTERNATE
17.9. MASTER CYLINDER
17.10. ACCELERATOR
17.11. ACCELERATOR PEDAL MONOTROL
18. HYDRAULIC SYSTEM
18.1. HYDRAULICS SINGLE PUMP AND MOTOR
18.2. SUPPLY AND RETURN
18.3. HYDRAULIC PUMP 29 CC
18.4. HYDRAULIC MOTOR
18.5. HYDRAULIC FILTER
18.6. HYDRAULIC PLUMBING CONTROL VALVE
18.7. HYDRAULIC CONTROL HAND LEVERS
18.8. CONTROL VALVE THREE FUNCTION
18.9. CONTROL VALVE FOUR FUNCTION
18.10. CONTROL VALVE FIVE FUNCTION
18.11. MAST INSTALLATION
18.12. TILT CYLINDER
19. Mast-Two Stage Limited Free-Lift
19.1. OUTER MAST TWO STAGE LIMITED FREE-LIFT
19.2. INNER MAST TWO STAGE LIMITED FREE-LIFT
19.3. MAIN LIFT TWO STAGE LIMITED FREE-LIFT
19.4. MAIN CYLINDER TWO STAGE LIMITED FREE-LIFT – E70-80Z, E100ZS
19.5. MAIN CYLINDER TWO STAGE LIMITED FREE-LIFT – E100-120Z
19.6. HEADER HOSE TWO STAGE LIMITED FREE-LIFT – MAST HEIGHTS 3650MM, 3390MM, 3990 MM
19.7. HEADER HOSE TWO STAGE LIMITED FREE-LIFT – MAST HEIGHTS 2790MM AND 3050MM
19.8. CARRIAGE ASSEMBLY TWO STAGE LIMITED FREE-LIFT
20. Mast-Three Stage Full Free-Lift
20.1. OUTER MAST THREE STAGE FULL FREE-LIFT
20.2. INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT
20.3. INNER MAST THREE STAGE FULL FREE-LIFT
20.4. MAIN LIFT THREE STAGE FULL FREE-LIFT
20.5. MAIN CYLINDER THREE STAGE FULL FREE-LIFT
20.6. FREE LIFT THREE STAGE FULL FREE-LIFT
20.7. FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT
20.8. HEADER HOSE THREE STAGE FULL FREE-LIFT
20.9. HEADER HOSE THREE STAGE FULL FREE-LIFT – MAST HEIGHTS 5240 AND 5500
20.10. CARRIAGE ASSEMBLY THREE STAGE FULL FREE-LIFT
21. Mast-Two Stage Full Free-Lift
21.1. OUTER MAST TWO STAGE FULL FREE-LIFT
21.2. INNER MAST TWO STAGE FULL FREE-LIFT
21.3. MAIN LIFT TWO STAGE FULL FREE-LIFT
21.4. MAIN LIFT CYLINDER TWO STAGE FULL FREE-LIFT
21.5. FREE-LIFT TWO STAGE FULL FREE-LIFT
21.6. FREE-LIFT CYLINDER TWO STAGE FULL FREE-LIFT
21.7. CARRIAGE TWO STAGE FULL FREE-LIFT
21.8. HEADER HOSES TWO STAGE FULL FREE-LIFT – MAST HEIGHT 3390 MM, 3650 MM AND UP

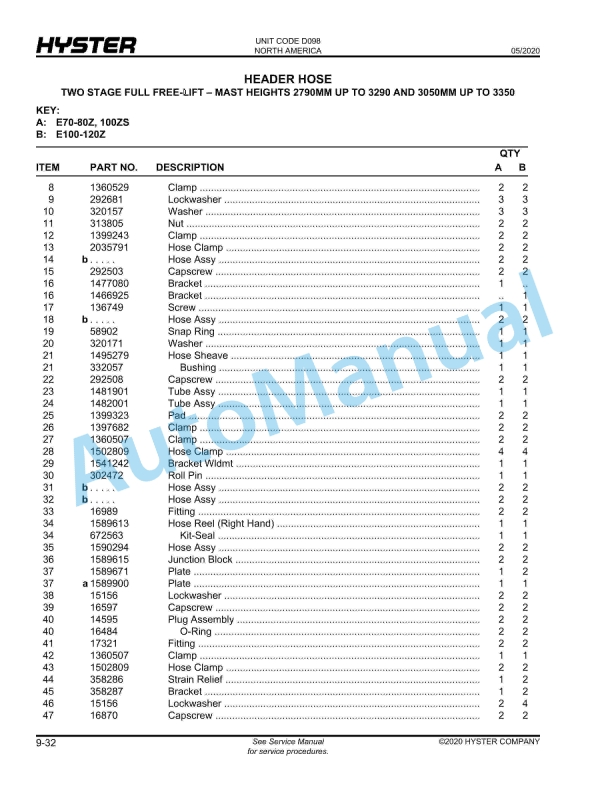

21.9. HEADER HOSE TWO STAGE FULL FREE-LIFT – MAST HEIGHTS 2790MM UP TO 3290 AND 3050MM UP TO 3350
22. OPTIONS
22.1. DC-DC CONVERTER 36/48 VOLT TO 12 VOLT – 70/80 VOLT TO 12 VOLT
22.2. DRIVE LIGHTS 12 VOLT
22.3. LED BACK-UP AND BRAKE LIGHTS
22.4. STROBE LIGHT
22.5. ACCUMULATOR
22.6. INTEGRAL SIDE-SHIFT TWO STAGE LIMITED FREE-LIFT – E100-120Z
22.7. INTEGRAL SIDE-SHIFT TWO STAGE LIMITED FREE-LIFT – E70-80Z, E100ZS
22.8. INTEGRAL SIDE-SHIFT TWO STAGE FULL FREE-LIFT – E70-80Z, E100ZS
22.9. INTEGRAL SIDE-SHIFT TWO STAGE FULL FREE-LIFT – E100-120Z
22.10. INTEGRAL SIDE-SHIFT THREE STAGE FULL FREE-LIFT – E70-80Z, E100ZS
22.11. INTEGRAL SIDE-SHIFT THREE STAGE FULL FREE-LIFT – E100-120Z
22.12. INTEGRAL SIDE-SHIFT CARRIAGE TWO STAGE FULL FREE-LIFT – 1067 MM (42 IN.) CLASS III
22.13. INTEGRAL SIDE-SHIFT CARRIAGE TWO STAGE FULL FREE-LIFT – 1219 MM (48 IN.) CLASS III
22.14. INTEGRAL SIDE-SHIFT CARRIAGE TWO STAGE FULL FREE-LIFT – 1219 MM (48 IN.) CLASS IV
22.15. INTEGRAL SIDE-SHIFT CARRIAGE TWO STAGE LIMITED FREE-LIFT – 1067 MM (42 IN.) CLASS III
22.16. INTEGRAL SIDE-SHIFT CARRIAGE TWO STAGE LIMITED FREE-LIFT – 1219 MM (48 IN.) CLASS III
22.17. INTEGRAL SIDE-SHIFT CARRIAGE TWO STAGE LIMITED FREE-LIFT – 1219 MM (48 IN.) CLASS IV
22.18. INTEGRAL SIDE-SHIFT CARRIAGE THREE STAGE FULL FREE-LIFT – 1067 MM (42 IN.) CLASS III
22.19. INTEGRAL SIDE-SHIFT CARRIAGE THREE STAGE FULL FREE-LIFT – 1219 MM (48 IN.) CLASS III
22.20. INTEGRAL SIDE-SHIFT CARRIAGE THREE STAGE FULL FREE-LIFT – 1219 MM (48 IN.) CLASS IV
22.21. SIDE ROLLER ISS CARRIAGE – KIT
23. FIELD CONVERSION KITS
23.1. ELECTRICAL CONVERSIONS
23.2. LIGHTS CONVERSION KITS
23.3. AUDIBLE ALARM KITS
23.4. DIRECTIONAL CONTROL CONVERSION
23.5. CONTROL VALVE CONVERSION KITS
23.6. TILT CONVERSION
23.7. AUXILIARY TUBE EXTENSION KIT
24. NUMERICAL INDEX
