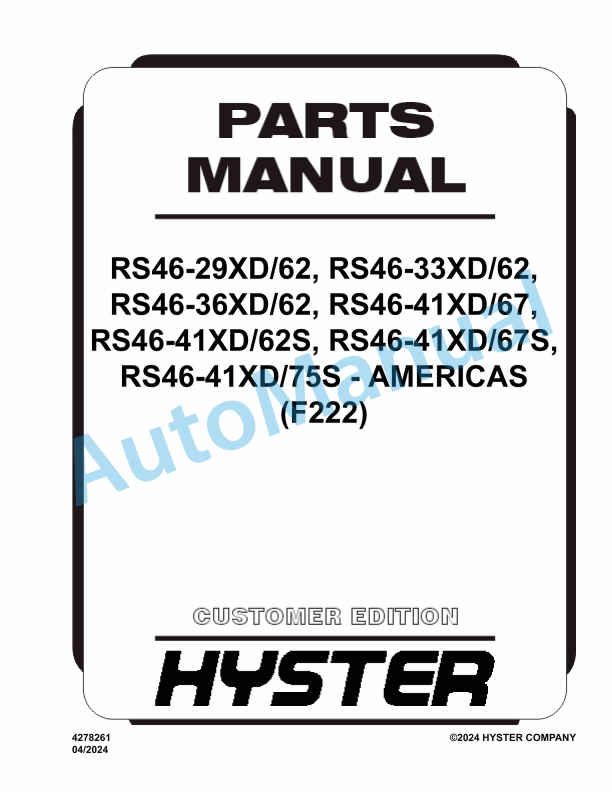

Hyster RS46-29XD-62 to RS46-41XD-75S Americas (F222) Parts Manual

Hyster RS46-29XD-62 to RS46-41XD-75S Americas (F222) Parts Manual - Image 2

Hyster RS46-29XD-62 to RS46-41XD-75S Americas (F222) Parts Manual - Image 3

Hyster RS46-29XD-62 to RS46-41XD-75S Americas (F222) Parts Manual - Image 4

Hyster RS46-29XD-62 to RS46-41XD-75S Americas (F222) Parts Manual - Image 5

hyster rs46 29xd 62 to rs46 41xd 75s americas f222 parts manual 2

hyster rs46 29xd 62 to rs46 41xd 75s americas f222 parts manual 3

Hyster RS46-29XD-62 to RS46-41XD-75S Americas (F222) Parts Manual

$30.00

Type Of Manual: Parts Manual
Number of Pages: 1680
Size: 202.2MB
Format: PDF

Category: Hyster Parts Manual PDF

Model List:
- RS46-29XD-62, RS46-33XD-62, RS46-36XD-62, RS46-41XD-67, RS46-41XD-62S, RS46-41XD-67S, RS46-41XD-75S Americas (F222)

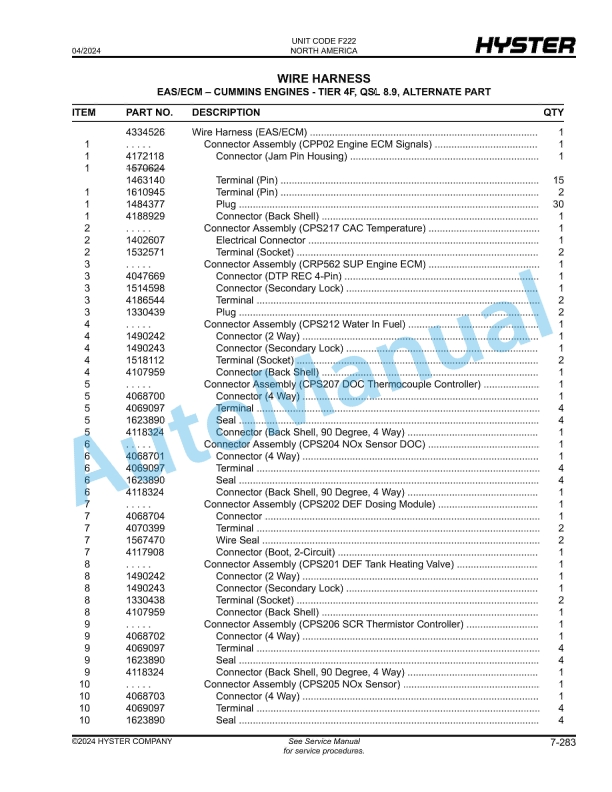

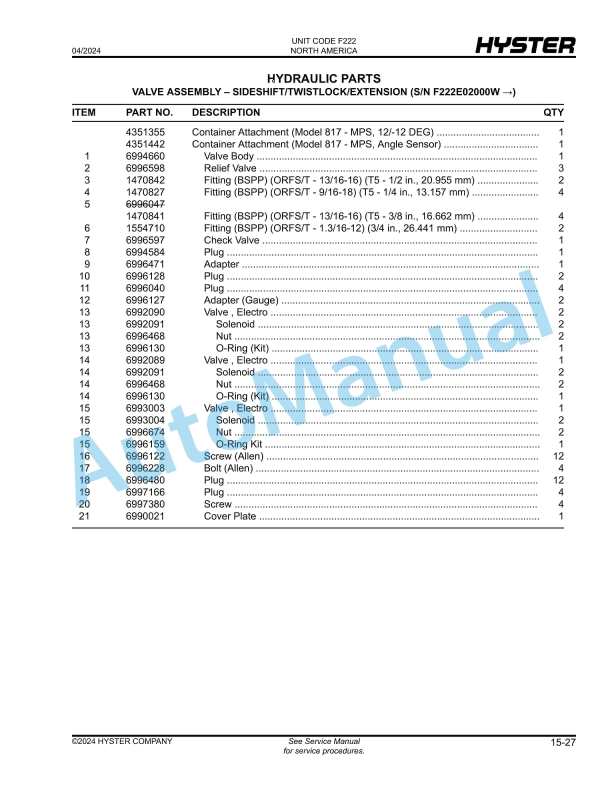

1. COVERS CUMMINS ENGINES – TIER 3, QSM 11 AND TIER 4F, QSL 8.9
2. COVERS CUMMINS ENGINES – TIER 3/TIER 4F, X12 ( S/N F222E03499X)
3. COVERS CUMMINS ENGINES – TIER 3/TIER 4F, X12 (S/N F222E03500X )
4. COUNTERWEIGHT
5. HANDRAILS AND PLATFORM LH SIDE
6. HANDRAILS AND PLATFORM RH SIDE
7. HANDRAILS AND STEP FRONT FENDERS – WITH POWER SLIDING CAB OPTION
8. HANDRAILS FRONT FENDERS – WITHOUT POWER SLIDING CAB OPTION
9. STAIRS – LH WITH 25 INCH TIRES
10. STAIRS – LH WITH 33 INCH TIRES
11. STAIRS – RH
12. COVER WITHOUT RH STAIRS
13. STORAGE BOX
14. FRONT FENDERS
15. MIRRORS FRONT FENDERS – WITHOUT POWER SLIDING CAB OPTION
16. MIRRORS FRONT FENDERS – WITH POWER SLIDING CAB OPTION
17. REAR FENDERS CUMMINS ENGINES – TIER 3, QSM 11 AND TIER 4F, QSL 8.9 – 6200 MM WHEEL BASE
18. REAR FENDERS CUMMINS ENGINES – TIER 3, QSM 11 AND TIER 4F, QSL 8.9 – 6700 MM WHEEL BASE
19. REAR FENDERS CUMMINS ENGINES – TIER 3, QSM 11 AND TIER 4F, QSL 8.9 – 7500 MM WHEEL BASE
20. REAR FENDERS CUMMINS ENGINES – TIER 3, X12 – 6200 MM WHEEL BASE
21. REAR FENDERS CUMMINS ENGINES – TIER 4F, X12 – 6200 MM WHEEL BASE
22. REAR FENDERS CUMMINS ENGINES – TIER 3, X12 – 6700 MM WHEEL BASE, PAGE 1 OF 2
23. REAR FENDERS CUMMINS ENGINES – TIER 3, X12 – 6700 MM WHEEL BASE, PAGE 2 OF 2
24. REAR FENDERS CUMMINS ENGINES – TIER 4F, X12 – 6700 MM WHEEL BASE, PAGE 1 OF 2
25. REAR FENDERS CUMMINS ENGINES – TIER 4F, X12 – 6700 MM WHEEL BASE, PAGE 2 OF 2
26. REAR FENDERS CUMMINS ENGINES – TIER 3, X12 – 7500 MM WHEEL BASE, PAGE 1 OF 2
27. REAR FENDERS CUMMINS ENGINES – TIER 3, X12 – 7500 MM WHEEL BASE, PAGE 2 OF 2
28. REAR FENDERS CUMMINS ENGINES – TIER 4F, X12 – 7500 MM WHEEL BASE, PAGE 1 OF 2
29. REAR FENDERS CUMMINS ENGINES – TIER 4F, X12 – 7500 MM WHEEL BASE, PAGE 2 OF 2
30. CAB MOUNTING NON-POWERED SLIDING CAB
31. CAB MOUNTING POWERED SLIDING CAB
32. CAB ROOF PANEL GROUP
33. CAB DOOR LH
34. CAB DOOR RH
35. CAB RH REAR COVER W/O CONDENSER
36. CAB DOOR STOPPERS
37. CAB DOOR STEP
38. CAB GROUP
39. CAB ASSEMBLY
40. CAB SUB-ASSEMBLY PAGE 1 OF 2
41. CAB SUB-ASSEMBLY PAGE 2 OF 2
42. CAB REAR WIPER ASSEMBLY
43. CAB WINDOW WIPER ASSEMBLY
44. CAB INSULATION
45. CAB INTERIOR
46. CAB FLOORMATS
47. CAB GAS SPRING
48. CAB DOCUMENT CLIP
49. DISPLAY MOUNT
50. LIFE HAMMER
51. CAB PASSENGER SEAT MOUNTING
52. SEAT SLIDING RAIL
53. SEAT BASE
54. SEAT AND HEADREST
55. SEAT AND HEADREST
56. SEAT ARMREST LH ( PENDING PER ECN 68901-28)
57. SEAT ASSEMBLY, AIR SUSPENSION 2-POINT BELT, DELUXE – PAGE 1 OF 2
58. SEAT ASSEMBLY, AIR SUSPENSION 2-POINT BELT, DELUXE – PAGE 2 OF 2
59. SEAT ASSEMBLY, AIR SUSPENSION 2 AND 3-POINT BELT, DELUXE, TEMPERATURE CONTROL – PAGE 1 OF 2
60. SEAT ASSEMBLY, AIR SUSPENSION 2 AND 3-POINT BELT, DELUXE, TEMPERATURE CONTROL – PAGE 2 OF 2
61. SEAT ASSEMBLY, AIR SUSPENSION 2 AND 3-POINT BELT, DELUXE – PAGE 1 OF 2
62. SEAT ASSEMBLY, AIR SUSPENSION 2 AND 3-POINT BELT, DELUXE – PAGE 2 OF 2
63. SEAT ASSEMBLY, AIR AND MECHANICAL SUSPENSION 2-POINT BELT, LOW BACK – PAGE 1 OF 2
64. SEAT ASSEMBLY, AIR SUSPENSION 2-POINT BELT, LOW BACK – PAGE 2 OF 2
65. CAB SUNVISORS
66. CAB SUNSHADES
67. CAB SINGLE WIPER GROUP
68. CAB H-WIPER GROUP
69. CAB HEATER AND AIR CONDITIONER MOUNTING
70. CAB HEATER AND AIR CONDITIONER MOUNTING
71. CAB HEATER AND AIR CONDITIONER ASSEMBLIES
72. CAB HEATER AND AIR CONDITIONER ASSEMBLIES
73. CONDENSER AND ATTACHING PARTS
74. CONDENSER UNIT ASSEMBLY
75. HEATER HOSES CUMMINS ENGINES – TIER 3, QSM 11
76. HEATER HOSES CUMMINS ENGINES – TIER 4F, QSL 8.9
77. HEATER HOSES CUMMINS ENGINES – TIER 3/TIER 4F, X12
78. AIR CONDITIONER HOSES CUMMINS ENGINES – TIER 3, QSM 11
79. AIR CONDITIONER HOSES CUMMINS ENGINES – TIER 4F, QSL 8.9
80. AIR CONDITIONER HOSES CUMMINS ENGINES – TIER 3/TIER 4F, X12
81. LABELS EXTERIOR – PAGE 1 OF 3
82. LABELS EXTERIOR – PAGE 2 OF 3
83. LABELS EXTERIOR – PAGE 3 OF 3
84. LABELS INTERIOR
85. CAB ROOF PLUG AND CAB REAR RH GASKET AND PLATE WITHOUT VAM TELEMETRY OPTION (S/N F222E03500X )
86. PLUG GROUP – WITHOUT VAM TELEMETRY
87. ENGINE ASSEMBLY – CUMMINS – TIER 3, QSM 11
87.1. ENGINE MOUNTING
87.2. ACCESSORY DRIVE PULLEY
87.3. AIR CLEANER PLUMBING
87.4. AIR INTAKE CONNECTION
87.5. AIR INTAKE HOSE
87.6. AIR INTAKE MANIFOLD
87.7. AIR TRANSFER CONNECTION
87.8. ALTERNATOR
87.9. ALTERNATOR MOUNTING
87.10. ALTERNATOR DRIVE PULLEY
87.11. BREATHER PLUMBING
87.12. CAM FOLLOWER LEVERS
87.13. CAMSHAFT
87.14. COMPRESSOR MOUNTING
87.15. COOLANT HEATER STARTING AID
87.16. CORROSION RESISTOR
87.17. CRANKSHAFT
87.18. CRANKSHAFT MAIN BEARINGS
87.19. CYLINDER BLOCK
87.20. CYLINDER BLOCK PLUMBING
87.21. CYLINDER HEAD
87.22. ENGINE CONTROL SYSTEM
87.23. ENGINE OIL FILL
87.24. ETR CONTROL MODULE WIRING
87.25. EXHAUST MANIFOLD
87.26. EXHAUST OUTLET CONNECTION
87.27. FAN DRIVE AND SPACER
87.28. FLYWHEEL HOUSING
87.29. FLYWHEEL
87.30. FRONT DRIVE TRAIN
87.31. FRONT ENGINE SUPPORT
87.32. FRONT GEAR COVER
87.33. FUEL FILTER
87.34. FUEL FILTER WIF
87.35. FUEL FILTER PLUMBING
87.36. FUEL INJECTOR
87.37. FUEL PUMP ASSEMBLY
87.38. FUEL PUMP COUPLING
87.39. FUEL PUMP DRIVE
87.40. FUEL PUMP INTAKE FITTING
87.41. FUEL PUMP PLUMBING
87.42. GEAR HOUSING
87.43. IDLER GEAR
87.44. INTAKE CONNECTOR AIR COMPRESSOR
87.45. LIFTING BRACKET
87.46. OIL COOLER WATER PLUMBING
87.47. OIL LEVEL GAUGE
87.48. OIL FILLER
87.49. OIL FILTER
87.50. OIL COOLER AND FILTER HEAD ADAPTER
87.51. OIL PAN
87.52. OIL PUMP AND ATTACHING PARTS
87.53. PISTON AND CONNECTING ROD
87.54. RADIATOR PLUMBING
87.55. ROCKER LEVER HOUSING
87.56. STARTER MOTOR AND MOUNTING
87.57. THERMOSTAT
87.58. THERMOSTAT HOUSING
87.59. TURBOCHARGER
87.60. TURBOCHARGER PLUMBING
87.61. VALVE COVER
87.62. VIBRATION DAMPER
87.63. WATER PUMP
88. ENGINE ASSEMBLY – CUMMINS – TIER 4F, QSL 8.9
88.1. ENGINE AND OIL FILTER MOUNTING
88.2. ACCESSORY DRIVE PULLEY
88.3. AIR INTAKE CONNECTION
88.4. AIR INTAKE HOSE
88.5. AIR TRANSFER CONNECTION
88.6. ALTERNATOR
88.7. ALTERNATOR MOUNTING
88.8. BELT TENSIONER
88.9. CABIN HEATER PLUMBING
88.10. CAMSHAFT AND TIMING GEAR
88.11. CONNECTING RODS AND PISTONS
88.12. COOLANT HEATER STARTING AID PLUG
88.13. CRANKCASE BREATHER
88.14. CRANKSHAFT AND BEARINGS
88.15. CYLINDER BLOCK
88.16. CYLINDER BLOCK COVER
88.17. CYLINDER HEAD
88.18. CYLINDER HEAD PLUMBING
88.19. ENGINE CONTROL MODULE
88.20. ENGINE COOLANT PLUMBING
88.21. ENGINE SUPPORT
88.22. ETR CONTROL MODULE WIRING
88.23. EXHAUST MANIFOLD
88.24. EXHAUST RECIRCULATION
88.25. EXHAUST RECIRCULATION AIR PLUMBING
88.26. EXHAUST RECIRCULATION WATER PLUMBING
88.27. FAN DRIVE AND MOUNTING
88.28. FLAT MULTI-RIBBED (V) BELT
88.29. FLYWHEEL
88.30. FRONT GEAR COVER
88.31. FRONT GEAR TRAIN ACCESSORY MOUNTING
88.32. FUEL DRAIN PLUMBING
88.33. FUEL FILTERS
88.34. FUEL FILTER PLUMBING
88.35. FUEL INJECTORS
88.36. FUEL INJECTOR PLUMBING
88.37. FUEL PUMP
88.38. FUEL PUMP INTAKE FITTING
88.39. FUEL PUMP MOUNTING
88.40. FUEL SUPPLY PLUMBING
88.41. FUEL TRANSFER PUMP
88.42. GEAR HOUSING
88.43. HEAT SHIELD
88.44. INTAKE MANIFOLD
88.45. LIFTING BRACKETS
88.46. OIL COOLER
88.47. OIL FILTER
88.48. OIL LEVEL GAUGE
88.49. OIL PAN
88.50. OIL PUMP
88.51. PLUG, CYLINDER BLOCK COOLANT PLUMBING
88.52. PLUG, TORQUE CONVERTER OIL COOLER
88.53. ROCKER LEVERS
88.54. STARTER MOTOR
88.55. THERMOSTAT
88.56. TURBOCHARGER
88.57. TURBOCHARGER WATER PLUMBING
88.58. VALVE COVER
88.59. VALVE TAPPET
88.60. VIBRATION DAMPER
88.61. WATER INLET CONNECTION
88.62. WATER PUMP AND OUTLET
89. ENGINE ASSEMBLY – CUMMINS – TIER 3/TIER 4F, X12
89.1. ENGINE MOUNTING
89.2. AIR CLEANER
89.3. AIR HEATER STARTING AID
89.4. AIR INTAKE CONNECTION
89.5. AIR INTAKE MANIFOLD
89.6. AIR TRANSFER CONNECTION
89.7. ALTERNATOR
89.8. ALTERNATOR DRIVE BELT
89.9. ALTERNATOR MOUNTING
89.10. AUXILIARY COOLING PLUMBING
89.11. BREATHER
89.12. CABIN HEATER PLUMBING
89.13. CAMSHAFT
89.14. CAMSHAFT MOUNTING
89.15. COMPRESSOR AIR INLET
89.16. CONNECTING ROD AND PISTON
89.17. COOLANT HEATER STARTING AID
89.18. CRANKSHAFT AND BEARINGS
89.19. CYLINDER BLOCK
89.20. CYLINDER BLOCK PLUMBING
89.21. CYLINDER HEAD
89.22. DRAIN VALVE
89.23. ENGINE CONTROL MODULE
89.24. ENGINE OIL COOLER
89.25. EXHAUST CLAMP
89.26. EXHAUST MANIFOLD
89.27. FAN BELT
89.28. FAN DRIVE
89.29. FLYWHEEL
89.30. FLYWHEEL HOUSING
89.31. FLYWHEEL MOUNTING
89.32. FUEL DRAIN PLUMBING
89.33. FUEL FILTER
89.34. FUEL FILTER CUMMINS X12 T3 250 KW – ALTERNATE ASSEMBLY
89.35. FUEL INJECTORS
89.36. FUEL INLET FITTING
89.37. FUEL PUMP
89.38. IDLER GEAR
89.39. INJECTOR PLUMBING
89.40. LIFTING BRACKETS
89.41. LIFTING BRACKET MOUNTING
89.42. NITROGEN OXIDE SENSOR
89.43. OIL FILTER
89.44. OIL LEVEL GAUGE
89.45. OIL PUMP
89.46. OIL HEATER STARTING AID
89.47. OIL PAN
89.48. REMOTE OIL FILTER
89.49. ROCKER LEVERS
89.50. STARTER MOTOR
89.51. STARTER MOTOR MOUNTING
89.52. THERMOSTAT AND WATER OUTLET CONNECTION
89.53. THERMOSTAT HOUSING
89.54. TURBOCHARGER
89.55. TURBOCHARGER PLUMBING
89.56. VALVE COVER
89.57. VIBRATION DAMPER
89.58. WATER MANIFOLD
89.59. WIRE HARNESS ELECTRONIC CONTROL MODULE
89.60. WIRE HARNESS ENGINE CONTROL
90. COOLING AND EXHAUST SYSTEMS
90.1. EXHAUST SYSTEM CUMMINS ENGINES – TIER 3, QSM 11
90.2. EXHAUST SYSTEM CUMMINS ENGINES – TIER 4F, QSL 8.9
90.3. EXHAUST PIPE DRT – CUMMINS ENGINES – TIER 4F, QSL 8.9
90.4. EXHAUST SYSTEM CUMMINS ENGINES – TIER 3, X12
90.5. EXHAUST SYSTEM CUMMINS ENGINES – TIER 4F, X12 – PAGE 1 OF 3
90.6. EXHAUST SYSTEM CUMMINS ENGINES – TIER 4F, X12 – PAGE 2 OF 3
90.7. EXHAUST SYSTEM CUMMINS ENGINES – TIER 4F, X12 – PAGE 3 OF 3
90.8. COOLING SYSTEM CUMMINS ENGINES – TIER 3, QSM 11 – PAGE 1 OF 2
90.9. COOLING SYSTEM CUMMINS ENGINES – TIER 3, QSM 11 – PAGE 2 OF 2
90.10. COOLER ASSEMBLY CUMMINS ENGINES – TIER 3, QSM 11
90.11. COOLING SYSTEM CUMMINS ENGINES – TIER 4F, QSL 8.9 – PAGE 1 OF 2
90.12. COOLING SYSTEM CUMMINS ENGINES – TIER 4F, QSL 8.9 – PAGE 2 OF 2
90.13. COOLER ASSEMBLY CUMMINS ENGINES – TIER 4F, QSL 8.9
90.14. COOLING SYSTEM CUMMINS ENGINES – TIER 3/TIER 4F, X12 – PAGE 1 OF 2
90.15. COOLING SYSTEM CUMMINS ENGINES – TIER 3/TIER 4F, X12 – PAGE 2 OF 2
90.16. COOLING SYSTEM CUMMINS ENGINES – TIER 3/TIER 4F, X12 – PAGE 2 OF 2, ALTERNATE CONFIGURATION
90.17. RADIATOR ASSEMBLY CUMMINS ENGINES – TIER 3/TIER 4F, X12
90.18. COOLANT LEVEL SIGHT GLASS
90.19. MUFFLER/CATALYTIC CONVERTER ASSEMBLY DOC
91. FUEL SYSTEM
91.1. FUEL TANK
91.2. ACCELERATOR PEDAL FORWARD/REVERSE LEVER
91.3. FUEL HOSES CUMMINS ENGINES – TIER 3, QSM 11
91.4. FUEL HOSES CUMMINS ENGINES – TIER 4F, QSL 8.9
91.5. FUEL FILTER AND HOSES CUMMINS ENGINES – TIER 3/TIER 4F, X12
91.6. FUEL FILTER ASSEMBLY CUMMINS ENGINES – TIER 3/TIER 4F, X12
91.7. DEF SYSTEM CUMMINS ENGINES – TIER 4F, QSL 8.9
91.8. DEF TANK ASSEMBLY CUMMINS ENGINES – TIER 4F, QSL 8.9 ( S/N F222E01756X INC. 02009)
91.9. DEF SUPPLY MODULE CUMMINS ENGINES – TIER 4F, QSL 8.9
91.10. DEF HOSES CUMMINS ENGINES – TIER 4F, QSL 8.9
91.11. DEF SYSTEM CUMMINS ENGINES – TIER 4F, X12
91.12. DEF SYSTEM CUMMINS ENGINES – TIER 4F, X12 – ALTERNATE CONFIGURATION
91.13. DEF MANIFOLD AND ATTACHING PARTS CUMMINS ENGINES – TIER 4F, X12
91.14. DEF TANK ASSEMBLY CUMMINS ENGINES – TIER 4F, X12
91.15. AIR INTAKE SYSTEM CUMMINS ENGINES – TIER 3, QSM 11
91.16. AIR FILTER ASSEMBLY CUMMINS ENGINES – TIER 3, QSM 11
91.17. AIR INTAKE SYSTEM CUMMINS ENGINES – TIER 4F, QSL 8.9
91.18. AIR INTAKE SYSTEM CUMMINS ENGINES – TIER 3/TIER 4F, X12
91.19. AIR FILTER ASSEMBLY CUMMINS ENGINES – TIER 3/TIER 4F, X12
91.20. CHARGE AIR COOLER GROUP CUMMINS ENGINES – TIER 3/TIER 4F, X12
92. ELECTRICAL SYSTEM
92.1. ELECTRICAL SYSTEM CUMMINS ENGINES – TIER 3, QSM 11 – PAGE 1 OF 2
92.2. ELECTRICAL SYSTEM CUMMINS ENGINES – TIER 3, QSM 11 – PAGE 2 OF 2
92.3. ELECTRICAL SYSTEM CUMMINS ENGINES – TIER 3, QSM 11 – PAGE 1 OF 4, ALTERNATE CONFIGURATION
92.4. ELECTRICAL SYSTEM CUMMINS ENGINES – TIER 3, QSM 11 – PAGE 2 OF 4, ALTERNATE CONFIGURATION
92.5. ELECTRICAL SYSTEM CUMMINS ENGINES – TIER 3, QSM 11 – PAGE 3 OF 4, ALTERNATE CONFIGURATION
92.6. ELECTRICAL SYSTEM CUMMINS ENGINES – TIER 3, QSM 11 – PAGE 4 OF 4, ALTERNATE CONFIGURATION
92.7. ELECTRICAL SYSTEM CUMMINS ENGINES – TIER 4F, QSL 8.9 – PAGE 1 OF 2
92.8. ELECTRICAL SYSTEM CUMMINS ENGINES – TIER 4F, QSL 8.9 – PAGE 2 OF 2
92.9. ELECTRICAL SYSTEM CUMMINS ENGINES – TIER 4F, QSL 8.9 – PAGE 1 OF 4, ALTERNATE CONFIGURATION

Rate this product
