Hyster W45ZHD (A419) Parts Manual

$30.00

Type Of Manual: Parts Manual
Number of Pages: 166
Size: 3.1MB
Format: PDF

Category: Hyster Parts Manual PDF

Model List:
- W45ZHD (A419)

1. FRAME/DRIVE UNIT
1.1. MASTER DRIVE UNIT ASSEMBLY
1.2. MASTER DRIVE UNIT ASSEMBLY
1.3. MASTER DRIVE UNIT ASSEMBLY
1.4. MASTER DRIVE UNIT AND ATTACHING PARTS
1.5. TRACTION MOTOR
1.6. GEAR BOX
1.7. CASTER WHEEL ASSEMBLY SEALED
1.8. CASTER WHEEL ASSEMBLY SEALED – ALTERNATE ASSEMBLY
1.9. CASTER WHEEL ASSEMBLY GREASABLE
1.10. DECALS AND MANUAL HOLDER
1.11. DRIVE TIRE AND STATIC STRAP
1.12. STABILIZERS
1.13. STABILIZERS
1.14. GRAB HANDLES, BATTERY COVER
1.15. LOAD BACKREST, MOVEABLE 8 INCH BATTERY BOX – STANDARD
1.16. LOAD BACKREST, MOVEABLE 8 INCH BATTERY BOX – BEVERAGE TRUCK
1.17. LOAD BACKREST 9 INCH BATTERY BOX BOLT-ON – 1219 MM/48 IN
1.18. LOAD BACKREST 9 INCH BATTERY BOX BOLT-ON – 1524 MM/60 IN
1.19. LOAD BACKREST 9 INCH BATTERY BOX BOLT-ON – 1829 MM/72 IN
1.20. LOAD BACKREST 8 INCH BATTERY BOX BOLT-ON – 1219 MM/48 IN
1.21. LOAD BACKREST 8 INCH BATTERY BOX BOLT-ON – 1524 MM/60 IN
1.22. LOAD BACKREST 8 INCH BATTERY BOX BOLT-ON – 1829 MM/72 IN
1.23. LOAD BACKREST BOLT-ON, USED WITH LITHIUM-ION BATTERY BOX – 1219 MM/48 IN
1.24. LOAD BACKREST BOLT-ON, USED WITH LITHIUM-ION BATTERY BOX – 1524 MM/60 IN
1.25. LOAD BACKREST BOLT-ON, USED WITH LITHIUM-ION BATTERY BOX – 1829 MM/72 IN
1.26. LOAD BACKREST (BEVERAGE TRUCK)
1.27. LOAD BACKREST (BEVERAGE TRUCK) MOVEABLE PALLET
1.28. LOAD BACKREST (BEVERAGE TRUCK) MOVEABLE PALLET – ENCLOSED BATTERY BOX
1.29. LOAD BACKREST (BEVERAGE TRUCK) MOVEABLE PALLET – 9 IN. BATTERY BOX
1.30. LOAD BACKREST MOVEABLE PALLET – ENCLOSED BATTERY BOX
1.31. LOAD BACKREST MOVEABLE PALLET – 9 IN. BATTERY BOX
2. ELECTRICAL SYSTEM
2.1. ELECTRICAL SYSTEM
2.2. CONTACTOR
2.3. WIRE HARNESS OPTION HARNESS
2.4. WIRE HARNESS MAIN
2.5. BATTERIES FLOODED AND AGM
2.6. BATTERY AND TRAY LITHIUM-ION WITH SINGLE PACK
2.7. BATTERY AND TRAY LITHIUM-ION, ALT CONFIG – WITH ONE, TWO AND THREE PACK OPTIONS
2.8. BATTERY CABLES LITHIUM-ION BATTERY

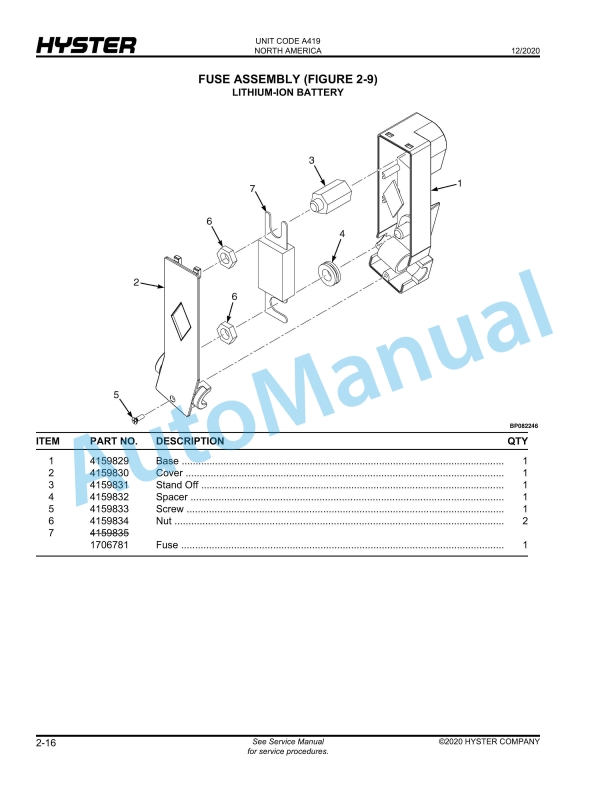

2.9. FUSE ASSEMBLY LITHIUM-ION BATTERY
2.10. BATTERY CHARGER 20 AMP
2.11. BATTERY CHARGER 30 AMP
2.12. PALLET PRO BATTERY RETENTION
2.13. BATTERY COVER
2.14. WAKE-UP CIRCUIT LITHIUM-ION BATTERY
2.15. WIRE HARNESS LITHIUM-ION
2.16. WIRE HARNESS LITHIUM-ION MULTI-PACK
2.17. WIRE HARNESS TILLER
2.18. WIRE HARNESS TELEMETRY – INTERLOCK
2.19. WIRE HARNESS TELEMETRY – POWER
2.20. WIRE HARNESS TELEMETRY – DISPLAY, UPPER
2.21. BUZZER ASSEMBLY TELEMETRY
2.22. WIRE HARNESS KEY PAD
3. STEER HANDLE/BRAKE SYSTEM
3.1. DELIVERY HANDLE AND MOUNTING WELDMENT

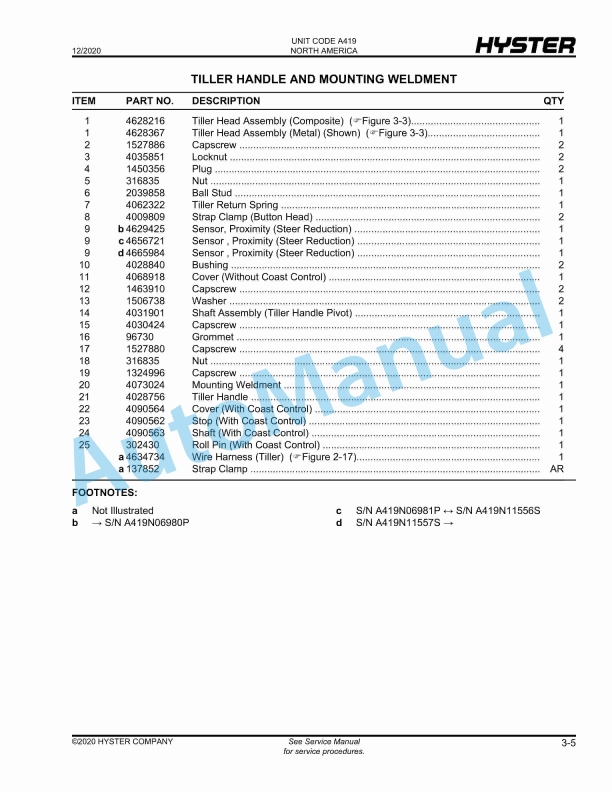

3.2. TILLER HANDLE AND MOUNTING WELDMENT
3.3. TILLER HEAD ASSEMBLY
4. LIFT LINKAGE AND FORKS
4.1. LIFT LINKAGE
4.2. LOAD WHEEL SEALED BEARING – VULKOLLAN
4.3. LOAD WHEEL SEALED BEARING – POLYURETHANE
4.4. LOAD WHEEL GREASABLE BEARING – VULKOLLAN
4.5. LOAD WHEEL GREASABLE BEARING – POLYURETHANE

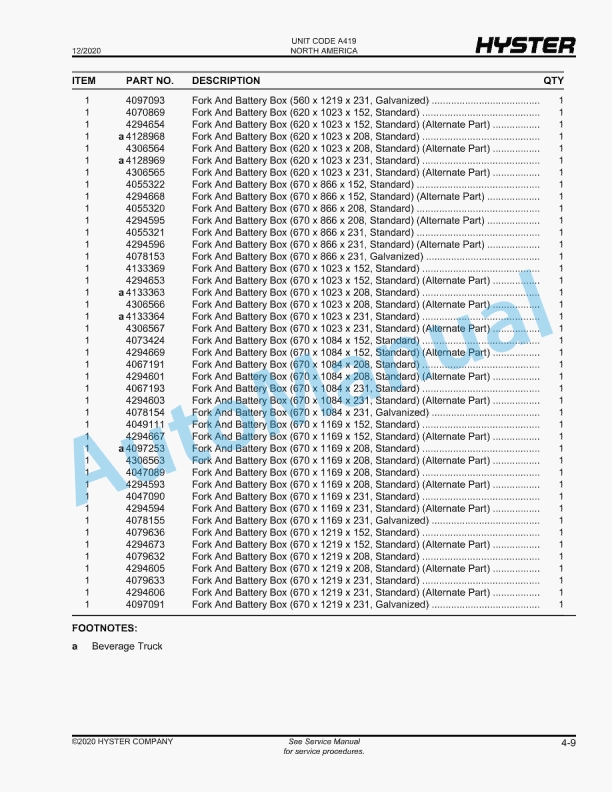

4.6. FORK AND BATTERY BOX
5. HYDRAULIC SYSTEM
5.1. HYDRAULIC SYSTEM
5.2. CYLINDER ASSEMBLY
5.3. HYDRAULIC POWER UNIT ASSEMBLY
6. OPTIONS
6.1. CONVENIENCE TRAY BOLT-ON
6.2. CONVENIENCE TRAY MAGNET MOUNT
6.3. AUDIBLE ALARM
6.4. SPEED REDUCTION
6.5. TOW SWITCH
6.6. PALLET STRAP OPTION
6.7. PALLET STRAP OPTION WITH EXTENSION STRAP
6.8. PALLET SKID ADAPTER OPTION
6.9. TELEMETRY OPTIONS
6.10. TELEMETRY COVER GROUP
6.11. LIFT INTERRUPT SENSOR
7. FIELD SERVICE KITS
7.1. TRACTION CONTROL KIT
7.2. BATTERY KITS
7.3. TELEMETRY KITS
8. NUMERICAL INDEX
