JCB VMT860 Vibromax Operator Manual 9811-4950

JCB VMT860 Vibromax Operator Manual 9811-4950 - Image 2

JCB VMT860 Vibromax Operator Manual 9811-4950 - Image 3

JCB VMT860 Vibromax Operator Manual 9811-4950 - Image 4

JCB VMT860 Vibromax Operator Manual 9811-4950 - Image 5

jcb vmt860 vibromax operator manual 9811 4950 2

jcb vmt860 vibromax operator manual 9811 4950 3

JCB VMT860 Vibromax Operator Manual 9811-4950

$20.00

Type Of Manual: Operator Manual
ManualID: 9811-4950
Number of Pages: 137
Size: 11.4MB
Format: PDF

Category: JCB Operator Manual PDF

Model List:
- VMT860 Vibromax

1. Safety Notices
2. Important Information …………………………………………………………………………1
3. The Operator Manual …………………………………………………………………….1
4. Safety Warnings ……………………………………………………………………………1
5. Introduction
6. About This Manual ……………………………………………………………………………..3
7. Machine Model and Serial Number ………………………………………………….3
8. Using this Manual ………………………………………………………………………….3
9. Left Side, Right Side ………………………………………………………………………3
10. Cab-Canopy …………………………………………………………………………………3
11. Cross References ………………………………………………………………………….3
12. Machine Description …………………………………………………………………………..4
13. The JCB Vibromax Vibratory Tandem Drum Roller …………………………….4
14. Intended Use ………………………………………………………………………………..4
15. Component Locations ……………………………………………………………………5
16. Safety Check List ……………………………………………………………………………….7
17. Safety – Yours and Others ………………………………………………………………7
18. General Safety ……………………………………………………………………………..7
19. Operating Safety …………………………………………………………………………..9
20. Maintenance Safety ……………………………………………………………………..12
21. Safety Labels …………………………………………………………………………………..17
22. Introduction …………………………………………………………………………………17
23. Safety Label Identification …………………………………………………………….18
24. Identifying Your Machine …………………………………………………………………..21
25. Machine Identification Plate ………………………………………………………….21
26. Machine Security ……………………………………………………………………………..22
27. Construction Equipment Security And Registration Scheme (CESAR) .22
28. Operation
29. Introduction ……………………………………………………………………………………..23
30. Before Entering the Cab-Canopy ………………………………………………………..24
31. Entering and Leaving the Cab ……………………………………………………………25
32. Emergency Exit …………………………………………………………………………..26
33. Doors and Windows …………………………………………………………………………27
34. Opening and Closing the Doors …………………………………………………….27
35. Opening and Closing the Upper Door Section …………………………………28
36. Seat Controls …………………………………………………………………………………..29
37. Introduction …………………………………………………………………………………29
38. Seat …………………………………………………………………………………………..29
39. Seat Belt …………………………………………………………………………………………31
40. Static Seat Belt ……………………………………………………………………………31
41. Visibility Aids ……………………………………………………………………………………32
42. Mirrors ……………………………………………………………………………………….32
43. Cab-Canopy Layout ………………………………………………………………………….35
44. Component Key …………………………………………………………………………..35
45. Drive Controls, Switches and Instruments ……………………………………………36
46. Drive Controls ……………………………………………………………………………..36
47. Switches …………………………………………………………………………………….38
48. Instrument Panel …………………………………………………………………………42
49. Air Conditioning and Heater Controls ……………………………………………..43
50. Before Starting the Engine …………………………………………………………………44
51. Starting the Engine …………………………………………………………………………..45
52. Getting the Machine Moving ………………………………………………………………46
53. Operating Procedure ……………………………………………………………………46
54. Stopping and Parking the Machine ……………………………………………………..47
55. Emergency Stopping of the Engine ………………………………………………..47
56. Working With the Machine …………………………………………………………………48
57. Operating Practices and Site Safety ………………………………………………48
58. Safety Practices ………………………………………………………………………….48
59. Danger Zone ………………………………………………………………………………50
60. Use of Machines on Gradients or Slopes ………………………………………..50
61. Operation Without Vibration ………………………………………………………….51
62. Operation With Vibration ………………………………………………………………52
63. Operating the Sprinklers ……………………………………………………………….53
64. Operating Environment ……………………………………………………………………..54
65. Introduction …………………………………………………………………………………54
66. Operating in Low Temperatures …………………………………………………….54
67. Operating in High Temperatures ……………………………………………………54
68. Operating in Dusty or Sandy Areas ………………………………………………..54
69. Operating in Coastal Regions ……………………………………………………….54
70. Operating on Wet or Soft Ground …………………………………………………..54
71. Cab Filters ………………………………………………………………………………….55
72. Moving a Disabled Machine ………………………………………………………………56
73. Retrieval …………………………………………………………………………………….56
74. Transporting the Machine ………………………………………………………………….58
75. Articulation Lock ………………………………………………………………………….59
76. Lifting the Machine …………………………………………………………………………..60
77. Storage of the Machine …………………………………………………………………….61
78. Introduction …………………………………………………………………………………61
79. Storage Area ………………………………………………………………………………61
80. Prepare the Machine for Storage …………………………………………………..61
81. Put the Machine into Storage ………………………………………………………..61
82. During Storage ……………………………………………………………………………61
83. Take the Machine Out of Storage …………………………………………………..62
84. Routine Maintenance
85. Service Requirements ………………………………………………………………………63
86. Introduction …………………………………………………………………………………63
87. Owner-Operator Support ………………………………………………………………63
88. Service-Maintenance Agreements …………………………………………………63

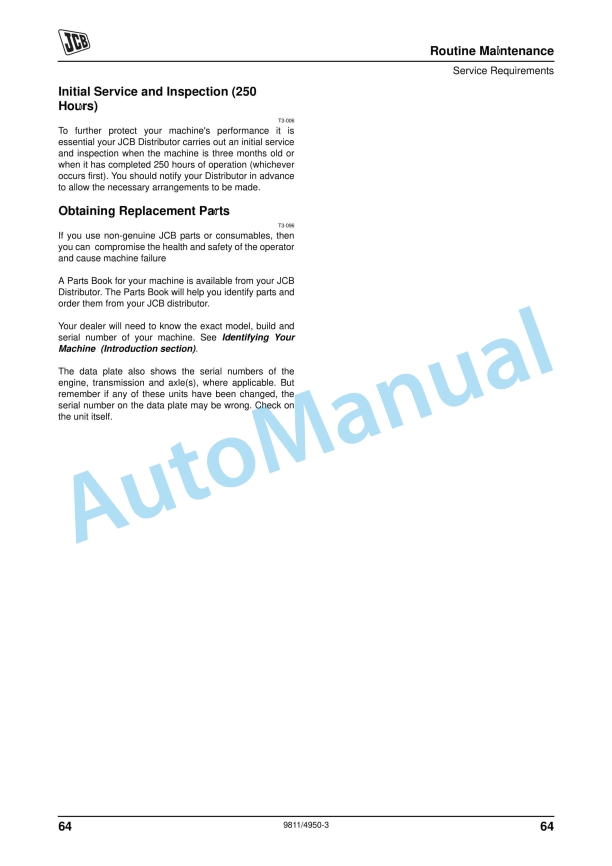

89. Initial Service and Inspection (250 Hours) ……………………………………….64
90. Obtaining Replacement Parts ………………………………………………………..64
91. Health and Safety …………………………………………………………………………….65
92. Lubricants …………………………………………………………………………………..65
93. Battery ……………………………………………………………………………………….67
94. Service Schedules ……………………………………………………………………………69
95. Introduction …………………………………………………………………………………69
96. Calendar Equivalents …………………………………………………………………..69
97. How to Use the Service Schedules ………………………………………………..69
98. Pre-start Cold Checks, Service Points and Fluid Levels ……………………70
99. Functional Test and Final Inspection ………………………………………………73
100. Fluids, Lubricants and Capacities ……………………………………………………….75
101. Coolant Mixtures …………………………………………………………………………76
102. Fuel …………………………………………………………………………………………..77
103. Tools ………………………………………………………………………………………………80
104. Toolbox (if fitted) ………………………………………………………………………….80
105. Carrying Tools onto the Machine ……………………………………………………80
106. Prepare the Machine for Maintenance ………………………………………………..81
107. Introduction …………………………………………………………………………………81
108. Make the Machine Safe ………………………………………………………………..81
109. Cleaning the Machine ……………………………………………………………………….82
110. Introduction …………………………………………………………………………………82
111. Prepare the Machine ……………………………………………………………………82
112. Cleaning the Machine …………………………………………………………………..83
113. Check the Machine for Damage …………………………………………………………84
114. Check the Machine Body and Structure ………………………………………….84
115. Check the Hydraulic Hoses and Fittings …………………………………………84
116. Check the Seat and Seat Belt ……………………………………………………….84
117. Check the Drums …………………………………………………………………………84
118. Coolant System …………………………………………………………………………..84
119. Checking the ROPS Structure ……………………………………………………….85
120. Access Panels …………………………………………………………………………………86
121. Engine Air Filter Cover …………………………………………………………………86
122. Battery Cover ……………………………………………………………………………..86
123. Engine Cover ………………………………………………………………………………86
124. Brakes ……………………………………………………………………………………………87

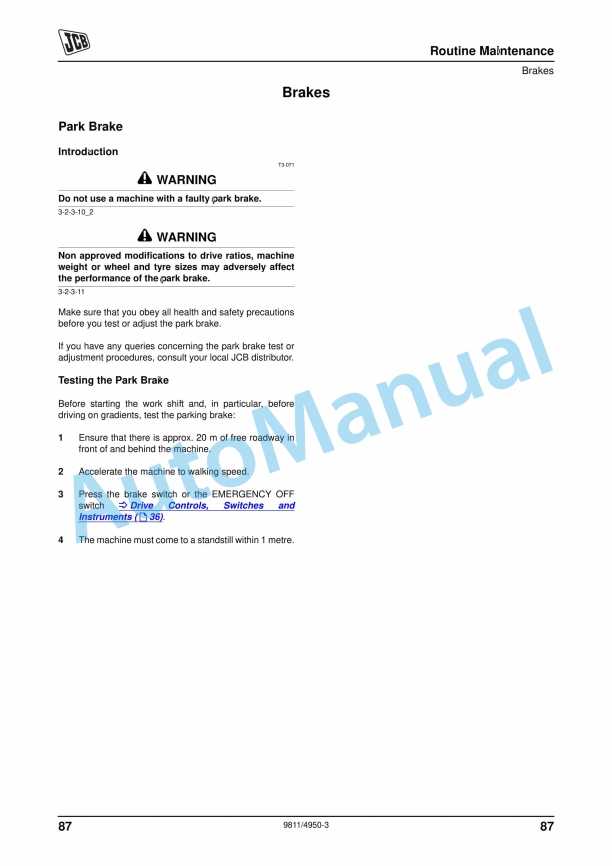

125. Park Brake ………………………………………………………………………………….87
126. Electrical System ……………………………………………………………………………..88
127. Battery ……………………………………………………………………………………….88
128. Jump Starting the Engine ……………………………………………………………..89
129. Fuses …………………………………………………………………………………………90
130. Relays ……………………………………………………………………………………….91
131. Engine ……………………………………………………………………………………………92
132. Oil and Filter ……………………………………………………………………………….92
133. Cooling System …………………………………………………………………………..94
134. Front End Accessory Drive (FEAD) Belt …………………………………………96

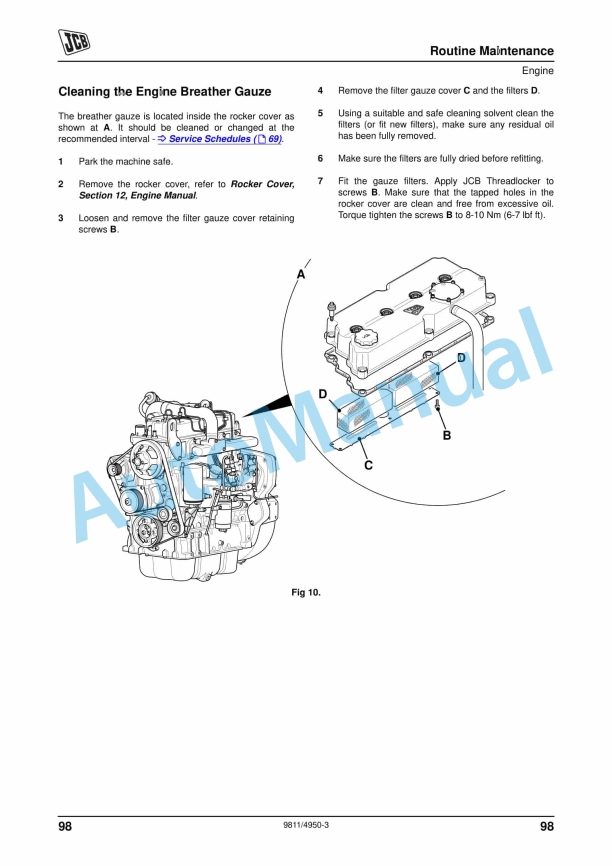

135. Cleaning the Engine Breather Gauze ……………………………………………..98
136. Engine Air Filter …………………………………………………………………………..99
137. Fuel System …………………………………………………………………………………..100
138. Introduction ……………………………………………………………………………….100
139. Low Fuel Levels ………………………………………………………………………..101
140. Filling the Tank ………………………………………………………………………….101
141. Draining the Fuel Tank ……………………………………………………………….102

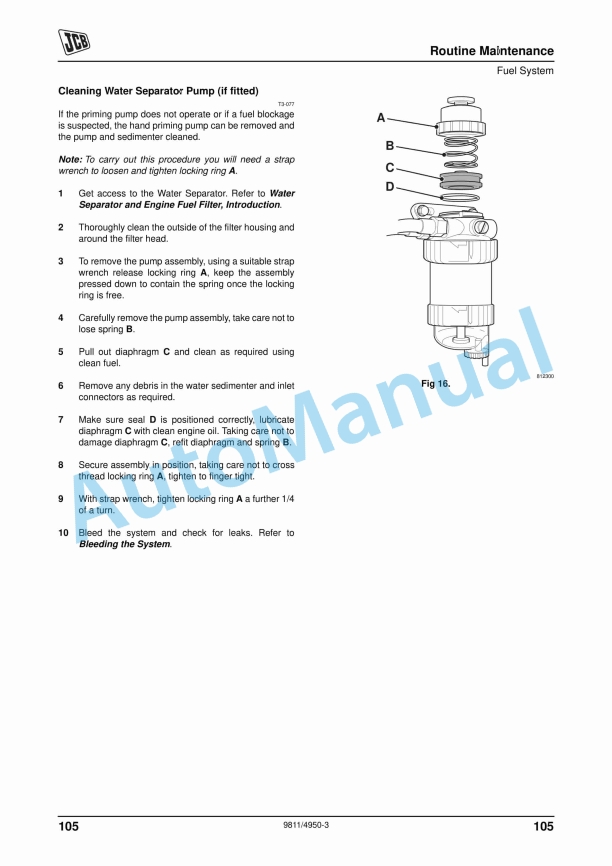

142. Water Separator and Engine Fuel Filter ………………………………………..102
143. Bleeding the System ………………………………………………………………….107
144. Hydraulic System ……………………………………………………………………………108
145. Introduction ……………………………………………………………………………….108
146. Releasing the Hydraulic Pressure ………………………………………………..109
147. Oil and Filter ……………………………………………………………………………..109
148. Sprinkler System …………………………………………………………………………… 112
149. Checking the Sprinkler Water Level …………………………………………….. 112
150. Draining the Sprinkler System …………………………………………………….. 112
151. Replace the Water Filter Element ………………………………………………… 113
152. Cleaning the Sprinkler System ……………………………………………………. 113
153. Drum ……………………………………………………………………………………………. 114
154. Smooth Drum Scraper ……………………………………………………………….. 114
155. Rubber Buffers …………………………………………………………………………. 114
156. Drum Drive Gearbox …………………………………………………………………. 115
157. Vibration System …………………………………………………………………………… 116
158. Oil …………………………………………………………………………………………… 116
159. Specifications
160. Static Dimensions ………………………………………………………………………….. 119
161. Performance Dimensions ………………………………………………………………..120
162. Operating Weights ………………………………………………………………………….122
163. Noise Data …………………………………………………………………………………….123
164. Introduction ……………………………………………………………………………….123
165. All Machines ……………………………………………………………………………..123
166. Vibration Data ………………………………………………………………………………..124
167. Warranty Information
168. Machine Service Record Sheet ………………………………………………………..125
169. Registration Information ………………………………………………………………….127
170. European Community Standards
171. EC Declaration of Conformity …………………………………………………………..129
172. Introduction ……………………………………………………………………………….129
173. Explanation of the EC Declaration of Conformity ……………………………131
