Komatsu D37E-2, D37P-2 Bull Dozer Parts Manual PEPDU1170201

$30.00

Type Of Manual: Parts Manual
Manual ID: PEPDU1170201
Format: PDF
Size: 13.8MB
Number of Pages: 229

Category: Komatsu Parts Manual PDF

Model List:
- D37E-2 Bull Dozer
- D37P-2 Bull Dozer

1. MAIN MENU
2. COVER
3. FOREWARD
4. REFERENCE NUMBER TABLE
5. CONTENTS
6. CYLINDER HEAD
6.1. FIG. 0101 CYLINDER HEAD
6.2. FIG. 0102 CYLINDER HEAD (HIGH ALTITUDE SPEC.)
6.3. FIG. 0111 ROCKER ARM
6.4. FIG. 0115 CYLINDER HEAD COVER
6.5. FIG. 0116 CYLINDER HEAD COVER (HIGH ALTITUDE SPEC.)
6.6. FIG. 0131 AIR INTAKE MANIFOLD AND CONNECTION (ENGINE NO. 29245 40454)
6.7. FIG. 0131A AIR INTAKE MANIFOLD AND CONNECTION (ENGINE NO. 40455 _ )
6.8. FIG. 0132 AIR INTAKE MANIFOLD AND CONNECTION (HIGH ALTITUDE SPEC.)
6.9. FIG. 0141 AIR CLEANER
6.10. FIG. 0142 AIR CLEANER (HIGH ALTITUDE SPEC.)
6.11. FIG. 0151 EXHAUST MANIFOLD AND MUFFLER
6.12. FIG. 0152 EXHAUST MANIFOLD AND TURBOCHARGER (HIGH ALTITUDE SPEC.)
6.13. FIG. 0155 TURBOCHARGER (HIGH ALTITUDE SPEC.)
6.14. FIG. 0161 MUFFLER (HIGH ALTITUDE SPEC.)
7. CYLINDER BLOCK
7.1. FIG. 0201 CYLINDER BLOCK
7.2. FIG. 0202 CYLINDER BLOCK (HIGH ALTITUDE SPEC.)
7.3. FIG. 0205 FRONT COVER AND GEAR
7.4. FIG. 0211 OIL PAN
7.5. FIG. 0221 FLYWHEEL AND FLYWHEEL HOUSING
7.6. FIG. 0231 CRANKSHAFT
7.7. FIG. 0232 CRANKSHAFT (HIGH ALTITUDE SPEC.)
7.8. FIG. 0235 PISTON AND CONNECTING ROD
7.9. FIG. 0241 CAMSHAFT AND TAPPET
8. LUBRICATING OIL SYSTEM
8.1. FIG. 0301 LUBRICATING OIL PUMP AND SUCTION PIPE
8.2. FIG. 0302 LUBRICATING OIL PUMP AND SUCTION PIPE (HIGH ALTITUDE SPEC.)
8.3. FIG. 0311 LUBRICATING OIL FILTER
8.4. FIG. 0325 TURBOCHARGER LUBRICATING OIL PIPING (HIGH ALTITUDE SPEC.)
9. FUEL SYSTEM
9.1. FIG. 0401 FUEL INJECTION PUMP AND PIPING
9.2. FIG. 0402 FUEL INJECTION PUMP AND PIPING (HIGH ALTITUDE SPEC.)
9.3. FIG. 0411 FUEL FILTER AND PIPING
9.4. FIG. 0412 FUEL FILTER AND PIPING (HIGH ALTITUDE SPEC.)
9.5. FIG. 0421 FUEL NOZZLE AND SPILL PIPE
9.6. FIG. 0451 FUEL INJECTION PUMP (PUMP)
9.7. FIG. 0452 FUEL INJECTION PUMP (PUMP) (HIGH ALTITUDE SPEC.)
9.8. FIG. 0461 FUEL INJECTION PUMP (GOVERNOR) (1/2)
9.9. FIG. 0462 FUEL INJECTION PUMP (GOVERNOR) (2/2)
9.10. FIG. 0463 FUEL INJECTOR PUMP (GOVERNOR) (1/2) (HIGH ALTITUDE SPEC.)
9.11. FIG. 0464 FUEL INJECTOR PUMP (GOVERNOR) (2/2) (HIGH ALTITUDE SPEC.)
9.12. FIG. 0481 FUEL INJECTION PUMP (FEED PUMP)
9.13. FIG. 0482 FUEL INJECTION PUMP (FEED PUMP) (HIGH ALTITUDE SPEC.)
10. COOLING SYSTEM
10.1. FIG. 0501 WATER PUMP AND COOLING FAN
10.2. FIG. 0502 WATER PUMP AND COOLING FAN (HIGH ALTITUDE SPEC.)
10.3. FIG. 0515 TENSION PULLEY (HIGH ALTITUDE SPEC.)
11. ELECTRICAL SYSTEM
11.1. FIG. 0601 ALTERNATOR AND MOUNTING
11.2. FIG. 0602 ALTERNATOR AND MOUNTING (HIGH ALTITUDE SPEC.)
11.3. FIG. 0621 STARTING MOTOR AND MOUNTING
11.4. FIG. 0641 ALTERNATOR (15A)
11.5. FIG. 0642 ALTERNATOR (25A) (HIGH ALTITUDE SPEC.)
11.6. FIG. 0661 STARTING MOTOR (5.5KW)
12. TOOL AND KIT

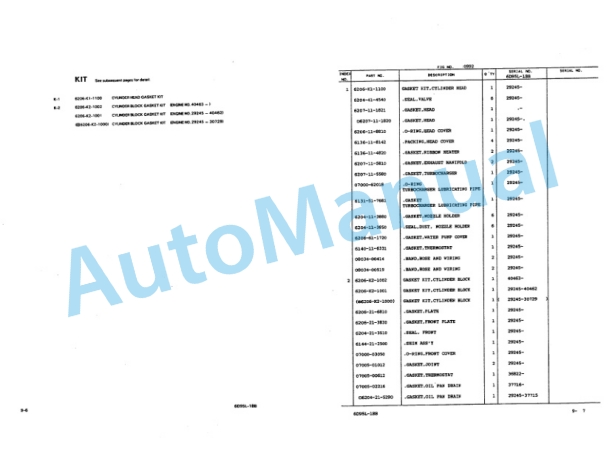

12.1. GASKET KIT
12.2. GASKET KIT (HIGH ALTITUDE SPEC.)
13. ENGINE RELATED PARTS AND ELECTRICAL SYSTEM
13.1. FIG. 1001 ENGINE MOUNTING PARTS
13.2. FIG. 1201 RADIATOR AND PIPING
13.3. FIG. 1301 FUEL TANK AND PIPING
13.4. FIG. 1401 BATTERY
13.5. FIG. 1411 INSTRUMENT PANEL
13.6. FIG. 1421 ELECTRICAL SYSTEM
14. DAMPER, TRANSMISSION, STEERING AND FINAL DRIVE
14.1. FIG. 2001 UNIVERSAL JOINT
14.2. FIG. 2201 DAMPER
14.3. FIG. 2501 TRANSMISSION (CASE) (1/7)
14.4. FIG. 2502 TRANSMISSION (REVERSE HOUSING) (2/7)
14.5. FIG. 2503 TRANSMISSION (FORWARD AND 3RD HOUSING) (3/7)
14.6. FIG. 2504 TRANSMISSION (2ND HOUSING) (4/7)
14.7. FIG. 2505 TRANSMISSION (1ST HOUSING) (5/7)
14.8. FIG. 2506 TRANSMISSION (TRANSFER) (6/7)
14.9. FIG. 2507 TRANSMISSION (PUMP) (7/7)
14.10. FIG. 2551 TRANSMISSION VALVE (MODULATION)
14.11. FIG. 2561 TRANSMISSION VALVE (SELECTOR AND INCHING)
14.12. FIG. 2601 STEERING CASE AND MAIN FRAME
14.13. FIG. 2611 BEVEL GEAR AND SHAFT
14.14. FIG. 2621 STEERING CLUTCH
14.15. FIG. 2631 BRAKE
14.16. FIG. 2633 STEERING CASE COVER
14.17. FIG. 2701 FINAL DRIVE CASE (D37E SERIAL NO. 1501 _ )
14.18. FIG. 2703 FINAL DRIVE GEAR (D37E SERIAL NO. 1501 _ )
14.19. FIG. 2705 SPROCKET AND SHAFT (D37E SERIAL NO. 1501 _ )
14.20. FIG. 2711 FINAL DRIVE CASE (D37P SERIAL NO. 1501 _ )
14.21. FIG. 2713 FINAL DRIVE GEAR (D37P SERIAL NO. 1501 _ )
14.22. FIG. 2715 SPROCKET AND SHAFT (D37P SERIAL NO. 1501 _ )
15. TRACK
15.1. FIG. 3001 TRACK FRAME
15.2. FIG. 3011 RECOIL SPRING

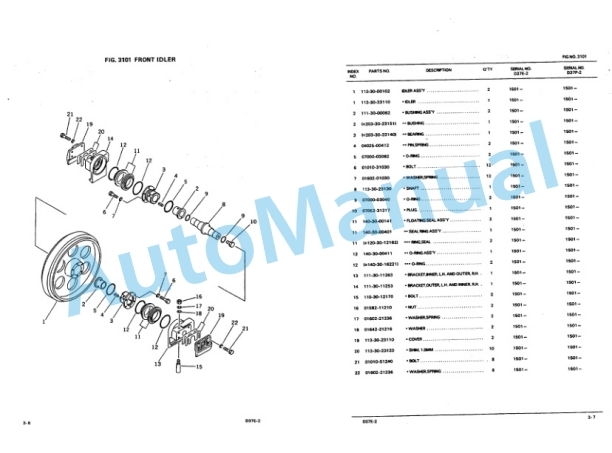

15.3. FIG. 3101 FRONT IDLER
15.4. FIG. 3201 TRACK ROLLER
15.5. FIG. 3301 CARRIER ROLLER
15.6. FIG. 3401 TRACK SHOE (MASTER PIN TYPE) (SINGLE GROUSER)
15.7. FIG. 3451 TRACK SHOE (MASTER PIN TYPE) (SWAMP TYPE) (D37P SERIAL NO. 1501 _ )
15.8. FIG. 3601 TRACK SHOE (LUBRICATE TYPE) (SINGLE GROUSER)
15.9. FIG. 3651 TRACK SHOE (LUBRICATE TYPE (SWAMP TYPE) (D37P SERIAL NO. 1501 _ )
16. CONTROL SYSTEM
16.1. FIG. 4001 FUEL CONTROL LEVER
16.2. FIG. 4201 TRANSMISSION CONTROL LEVER
16.3. FIG. 4202 TRANSMISSION CONTROL LINKAGE
16.4. FIG. 4211 INCHING PEDAL
16.5. FIG. 4212 INCHING PEDAL LINKAGE
16.6. FIG. 4301 STEERING CONTROL LEVER
16.7. FIG. 4302 STEERING CONTROL LINKAGE (1/2)
16.8. FIG. 4303 STEERING CONTROL LINKAGE (2/2)
16.9. FIG. 4351 BRAKE PEDAL
16.10. FIG. 4352 BRAKE PEDAL LINKAGE
16.11. FIG. 4501 STEERING VALVE
16.12. FIG. 4511 STEERING PIPING
16.13. FIG. 4601 OIL COOLER PIPING
17. GUARD
17.1. FIG. 5001 RADIATOR GUARD AND HOOD
17.2. FIG. 5021 LOADER FRAME AND FLOOR PLATE
17.3. FIG. 5031 REAR COVER AND HYDRAULIC TANK
17.4. FIG. 5051 UNDER GUARD
17.5. FIG. 5101 OPERATORS SEAT
17.6. FIG. 5301 CROSS BAR (D37E SERIAL NO. 1501 _ )
17.7. FIG. 5303 CROSS BAR (D37P SERIAL NO. 1501 _ )
18. WORK EQUIPMENT HYDRAULIC CONTROL SYSTEM
18.1. FIG. 6001 HYDRAULIC TANK AND FILTER
18.2. FIG. 6101 WORK EQUIPMENT PUMP
18.3. FIG. 6201 WORK EQUIPMENT VALVE (1/2)
18.4. FIG. 6202 WORK EQUIPMENT VALVE (2/2)
18.5. FIG. 6401 LIFT CYLINDER

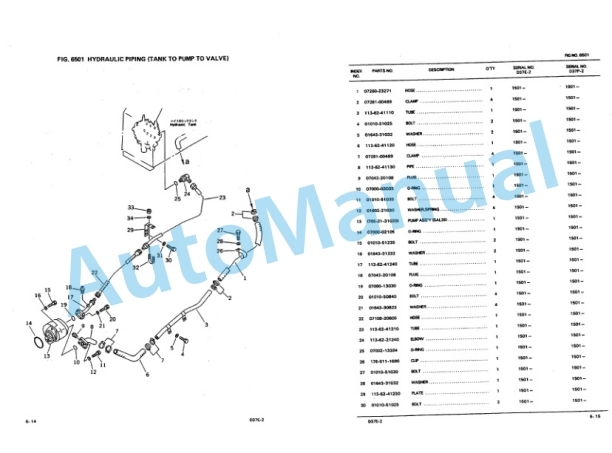

18.6. FIG. 6501 HYDRAULIC PIPING (TANK TO PUMP TO VALVE)
18.7. FIG. 6511 HYDRAULIC PIPING (LIFT CYLINDER LINE)
18.8. FIG. 6521 HYDRAULIC PIPING (TILT CYLINDER LINE) (CHASSIS SIDE)
18.9. FIG. 6531 HYDRAULIC PIPING (ANGLE CYLINDER LINE) (CHASSIS SIDE)
18.10. FIG. 6701 WORK EQUIPMENT CONTROL LEVER (1/2)
18.11. FIG. 6702 WORK EQUIPMENT CONTROL LEVER (2/2)
19. DOZER AND DRAWBAR
19.1. FIG. 7001 ANGLE TILT BLADE (D37E SERIAL NO. 1501 _ )
19.2. FIG. 7002 ANGLE TILT BLADE (D37P SERIAL NO. 1501 _ )
19.3. FIG. 7003 ANGLE TILT FRAME
19.4. FIG. 7011 TILT CYLINDER
19.5. FIG. 7013 ANGLE CYLINDER
19.6. FIG. 7021 HYDRAULIC PIPING (TILT CYLINDER LINE) (DOZER SIDE)
19.7. FIG. 7023 HYDRAULIC PIPING (ANGLE CYLINDER LINE) (DOZER SIDE)
19.8. FIG. 7025 HYDRAULIC PIPING COVER
19.9. FIG. 7901 HITCH
20. MARK PLATE, TOOL AND KIT
20.1. FIG. 9802 MARKS AND PLATES (ENGLISH) (D37E SERIAL NO. 1501 _ )
20.2. FIG. 9810 MARKS AND PLATES (GERMAN) (D37E SERIAL NO. 1501 _ )
20.3. FIG. 9811 MARKS AND PLATES (FRENCH) (D37E SERIAL NO. 1501 _ )
20.4. FIG. 9832 MARKS AND PLATES (ENGLISH) (D37P SERIAL NO. 1501 _ )
20.5. FIG. 9840 MARKS AND PLATES (GERMAN) (D37P SERIAL NO. 1501 _ )
20.6. FIG. 9841 MARKS AND PLATES (FRENCH) (D37P SERIAL NO. 1501 _ )
20.7. FIG. 9901 TOOL
20.8. FIG. 9903 ACCESSORY PARTS
20.9. FIG. 9905 SPARE PARTS
21. NUMERICAL INDEX
21.1. NUMERICAL INDEX
