Komatsu HD325-7R, HD405-7R Dump Truck Field Assembly Instruction GEN00084-00

$20.00

Type Of Manual: Field Assembly Instruction
Manual ID: GEN00084-00
Format: PDF
Size: 6.1MB
Number of Pages: 69

Category: Komatsu Operation and Maintenance Manual PDF

Model List:
- HD325-7R Dump Truck
- HD405-7R Dump Truck

1. COVER
2. CONTENTS
3. OUTLINE OF DIVISION (ONLY MAIN COMPONENTS)
4. DIMENSIONS OF MAIN COMPONENTS
5. ROUGH SCHEDULE OF ASSEMBLY AND WELDING
6. LIST OF EQUIPMENTS, TOOLS, AND CONSUMABLES
7. ASSEMBLY PROCESS NO.
7.1. OIL, GREASE, AND COOLANT
7.2. LEVELS OF OIL, GREASE, AND COOLANT
7.3. SLINGING BARE MACHINE
7.4. POSITIONING BARE MACHINE
7.5. ASSEMBLY OF TIRE AND WHEEL ASSEMBLY
7.6. INSTALLING TIRE AND WHEEL ASSEMBLY
7.7. INSTALLING REAR TIRE VALVE EXTENSION
7.8. INSTALLING REAR MONITOR
7.9. INSTALLING L.H PLATFORM
7.10. INSTALLING L.H HANDRAIL
7.11. INSTALLING RADIO ANTENNA AND FIXING ITS CABLE
7.12. INSTALLING SIDE VIEW MIRRORS
7.13. INSTALLING UNDER VIEW MIRRORS (FOR GENERAL OVERSEAS COUNTRIES)
7.14. INSTALLING UNDER VIEW MIRRORS (FOR EU)

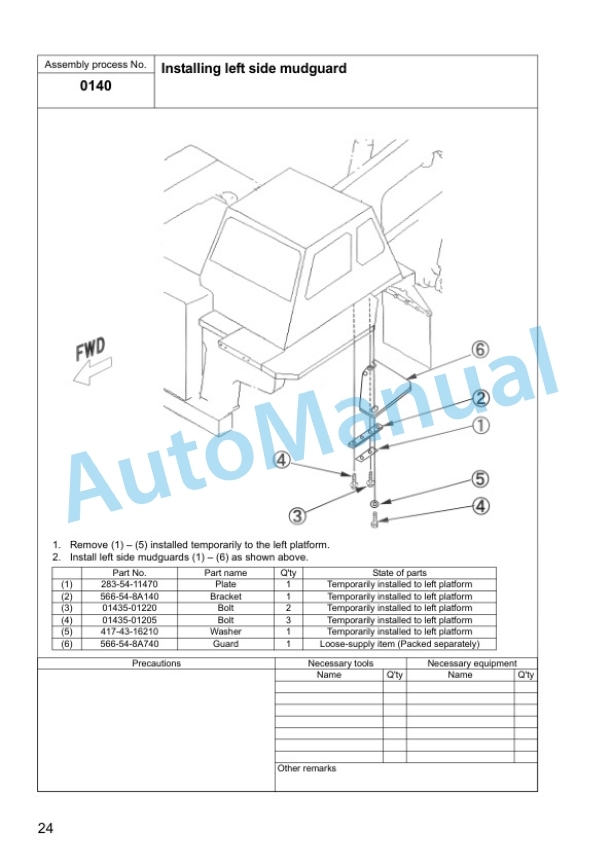

7.15. INSTALLING LEFT SIDE MUDGUARD
7.16. INSTALLING RIGHT SIDE MUDGUARD
7.17. PREPARATION OF INSTALLING BODY
7.18. WELDING BODY
7.19. INSTALLING 150MM BODY SPILL GUARD (IF EQUIPPED)
7.20. INSTALLING 250MM BODY SPILL GUARD (IF EQUIPPED)
7.21. INSTALLING PLATFORM GUARD
7.22. SLINGING BODY
7.23. INSTALLING BODY HINGE PIN
7.24. INSTALLING HOIST CYLINDER
7.25. INSTALLING BODY SHIM
7.26. ADJUSTING BODY SHIMS
7.27. INSTALLING MUFFLER FLANGE
7.28. INSTALLING BODY ACCESSORIES

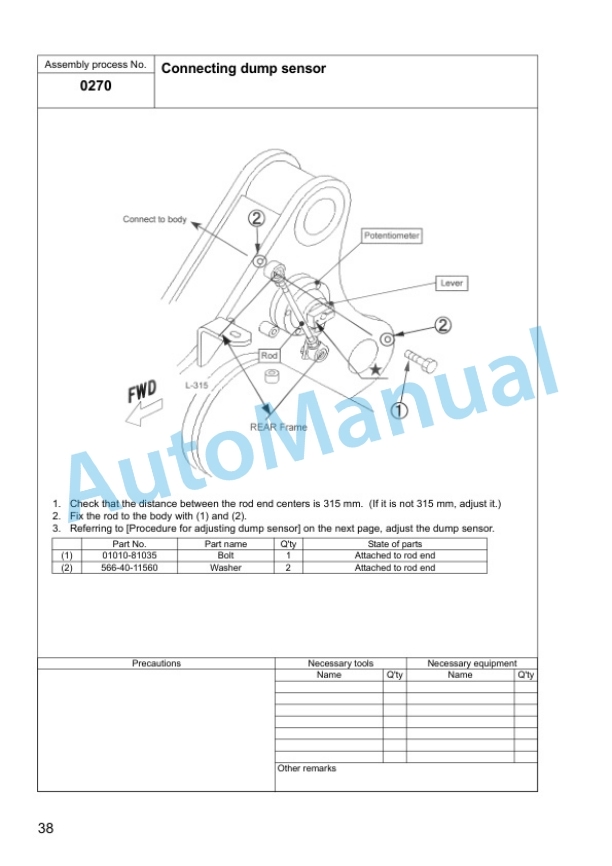

7.29. CONNECTING DUMP SENSOR
7.30. PROCEDURE FOR ADJUSTING DUMP SENSOR
7.31. CALIBRATING DUMP CONTROL
7.32. GREASING
7.33. TOUCHING UP
7.34. ADJUSTING SUSPENSION
7.35. STICKING BODY DECAL
7.36. ADJUSTMENT OF VIEW RANGE IN MIRROR (FOR EU)
7.37. ADJUSTMENT OF VIEW RANGE IN MIRROR (FOR GENERAL OVERSEAS COUNTRIES)
7.38. CHECK AND ADDITION OF LUBRICANTS (1/2)
7.39. CHECK AND ADDITION OF LUBRICANTS (2/2)
7.40. C0010 PREPARATION OF WELDING BODY
7.41. C0020 ASSEMBLY OF SPLIT BODY
7.42. C0030 TACK WELDING BODY

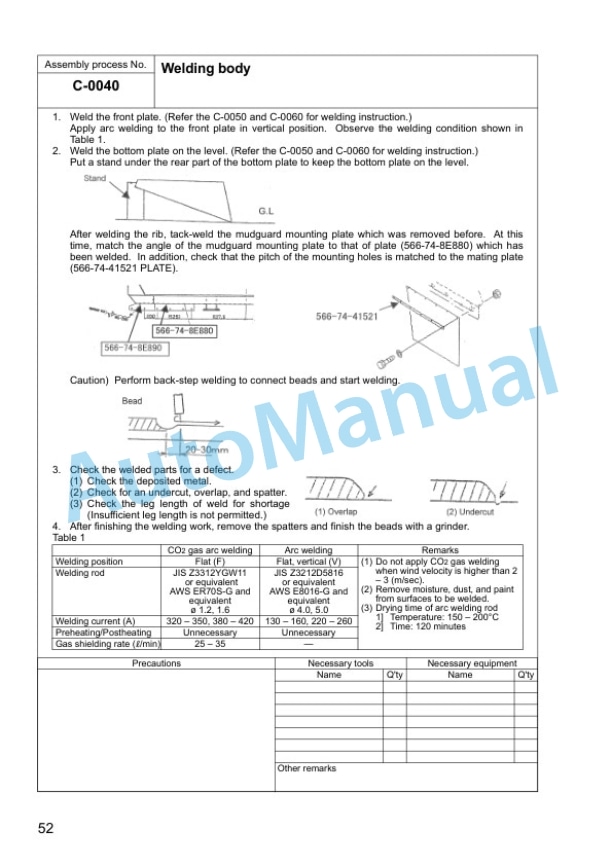

7.43. C0040 WELDING BODY
7.44. C0050 WELDING BODY INSTRUCTION (1/2)
7.45. C0060 WELDING BODY INSTRUCTION (2/2)
7.46. C0070 TURN OVER THE BODY
7.47. C0080 WELDING BODY PROTECTOR (1/2)
7.48. C0090 WELDING BODY PROTECTOR (2/2)
7.49. C0100 FINISHING AND PAINTING WELDED PARTS OF BODY
8. FIELD ASSEMBLY INSPECTION REPORT
