Komatsu PC450LCD-6K Hydraulic Excavator Parts Manual

$30.00

  • Type Of Manual: Parts Manual
  • Format: PDF
  • Size: 2.5MB
  • Number of Pages: 103
Category:
  • Model List:

    • PC450LCD-6K Hydraulic Excavator
  • 1. INTERMEDIATE LINK
  • 3. LINK
  • 4. BOOM PIPING (1)
  • 5. THIS PAGE INTENTIONALLY BLANK
  • 6. INTERMEDIATE LINK PIPING
  • 7. ARM PIPING
  • 8. BOOM LUBRICATION PIPING
  • 9. INTERMEDIATE LINK LUBRICATION PIPING
  • 10. MAIN VALVE (1)
  • 11. MAIN VALVE (2)
  • 12. MAIN VALVE (3)
  • 13. ATTACHMENT PIPING GROUP
  • 14. ATTACHMENT PIPING BRACKET GROUP
  • 15. BASE MACHINE PIPING GROUP
  • 16. HOSES BETWEEN BASE MACHINE AND BOOM

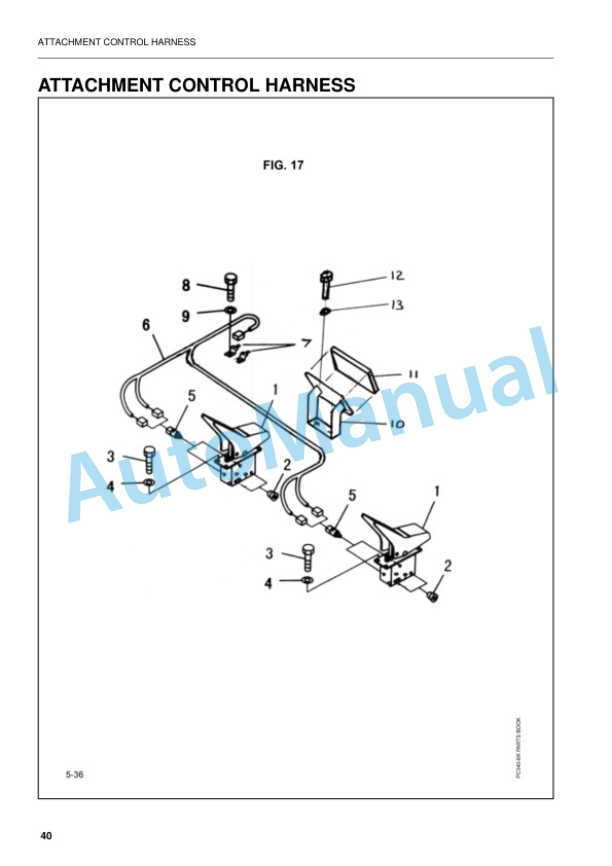

  • 17. ATTACHMENT CONTROL HARNESS
  • 18. PPC VALVE HYDRAULIC GROUP
  • 19. PPC PIPING
  • 20. PPC PIPING
  • 21. COUNTERWEIGHT
  • 22. CENTER BEAM COVERS
  • 23. UNDERCOVERS GROUP
  • 24. TRACKFRAME UNDERCOVERS
  • 25. CAB (FIXED)
  • 26. PARTITION (CAB REAR) GROUP

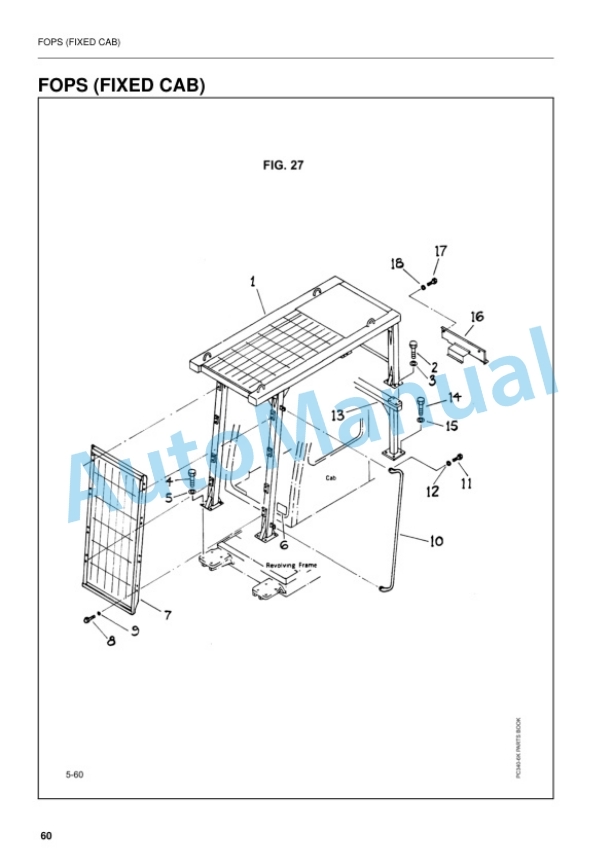

  • 27. FOPS (FIXED CAB)
  • 28. TILTING CAB WITH FOPS
  • 29. TILTING CAB MOUNTINGS
  • 30. TILTING CAB HYDRAULIC GROUP
  • 31. TILTING CAB COVERS GROUP
  • 32. TILTING CAB FRAME ASSEMBLY
  • 33. TILTING CAB LUBRICATION GROUP
  • 34. TILTING CAB RAISE CYLINDER ASSEMBLY
  • 35. WORK EQUIPMENT LAMP
  • 36. TRANSPORT PIN
  • 37. ANGLE INDICATOR
  • 38. BOOM ANGLE WARNING BUZZER
  • 39. TANK COVER

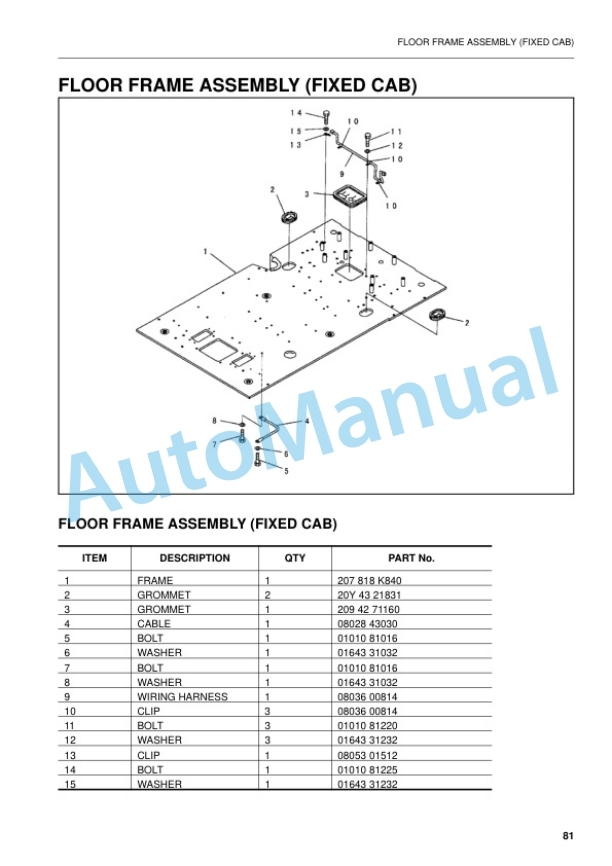

  • 40. FLOOR FRAME ASSEMBLY (FIXED CAB)
  • 41. FLOOR MAT
  • 42. INTERMEDIATE LINK/ARM CYLINDER
  • 43. BUCKET CYLINDER (1)
  • 44. BUCKET CYLINDER (2)
  • 45. HOSE BURST PROTECTION VALVE PIPING
  • 46. HOSE BURST PROTECTION VALVE PIPING
  • 47. DIGGING BOOM AND PIPING
  • 48. THIS PAGE INTENTIONALLY BLANK
  • 49. DIGGING BOOM AND PIPING
  • 50. DIGGING BOOM LUBRICATION PIPING
