Linde 1101-02 – EW30, EW40, EWR30, EWR40 Production site LMH-NA Operating Instructions SN A11101J00001 and up

$20.00

  • Type Of Manual: Operating Instructions
  • Manual ID: SN A11101J00001 and up
  • Format: PDF
  • Size: 12.6MB
  • Number of Pages: 94
  • Serial Number:
    SN A11101J00001 and up
Category:
  • Model List:

    • EW30
    • EW40
    • EWR30
    • EWR40
  • 1. series Electric Pallet TruckModels EW 30, EWR 30, EW 40, EWR 40
  • 1.1. Table of content
  • 1.2. Introduction
  • 1.2.1. Scope
  • 1.2.2. Obligations of the Equipment Owner
  • 1.2.3. Operator Responsibilities
  • 1.2.4. Proper use
  • 1.2.5. Hazard messages
  • 1.3. Safety
  • 1.3.1. Before Operation
  • 1.3.2. Operator daily checklist
  • 1.3.3. Operating Position
  • 1.3.4. Travel
  • 1.3.5. Inclines, Ramps, Docks, Elevators
  • 1.3.6. Parking
  • 1.3.7. Battery Safety
  • 1.3.8. Safety During Maintenance
  • 1.3.8.1. Personnel Qualifications
  • 1.3.8.2. Hazardous Substances
  • 1.3.9. Operator Warning Decals
  • 1.3.9.1. Data plate
  • 1.3.9.2. No riding decal
  • 1.3.9.3. Trained operator warning decal
  • 1.3.9.4. Test or service warning decal
  • 1.3.9.5. Voltage decal
  • 1.3.9.6. Platform surface warning decal
  • 1.3.9.7. Order picking system decal
  • 1.4. Overview
  • 1.4.1. Technical Description
  • 1.4.2. Truck Components
  • 1.4.3. Controls
  • 1.4.4. Display Unit
  • 1.4.5. Data Plate
  • 1.4.6. Decal and Data Plate Location
  • 1.4.7. Definition of Directions
  • 1.4.8. Options
  • 1.5. Operation
  • 1.5.1. Unloading and Preparing a New Truck for Operation
  • 1.5.2. Turning the Truck On and Off
  • 1.5.3. Driving
  • 1.5.4. Steering
  • 1.5.5. Horn
  • 1.5.6. Braking
  • 1.5.7. Raising and Lowering the Forks
  • 1.5.8. Order Picking System (Optional equipment)
  • 1.5.9. CreepSpeed Function
  • 1.5.10. Connecting and Disconnecting the Battery
  • 1.5.11. Connecting the Battery to an External Charger
  • 1.5.12. Changing the Battery
  • 1.5.13. Towing the Truck
  • 1.5.14. Hoisting the Truck
  • 1.6. Maintenance
  • 1.6.1. Personnel Qualifications

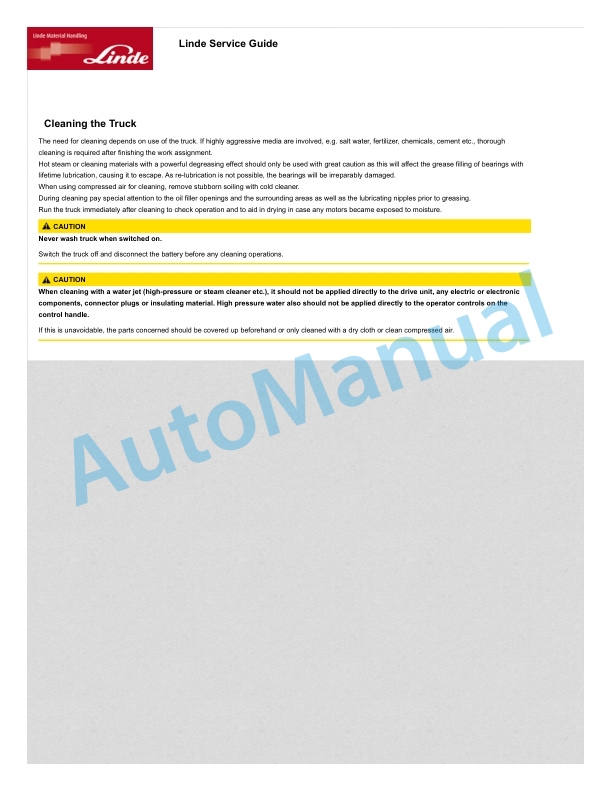

  • 1.6.2. Cleaning the Truck
  • 1.6.3. Operator Inspection and Maintenance
  • 1.6.3.1. Daily Inspection Overview
  • 1.6.4. Routine Lubrication and Inspection
  • 1.6.4.1. Routine Lubrication and Inspection Intervals
  • 1.6.4.2. Minimum Lubrication and Inspection Intervals
  • 1.6.4.3. Check Casters
  • 1.6.4.4. Lubricate Load Wheel Axles
  • 1.6.4.5. Check for Gear Oil Leakage

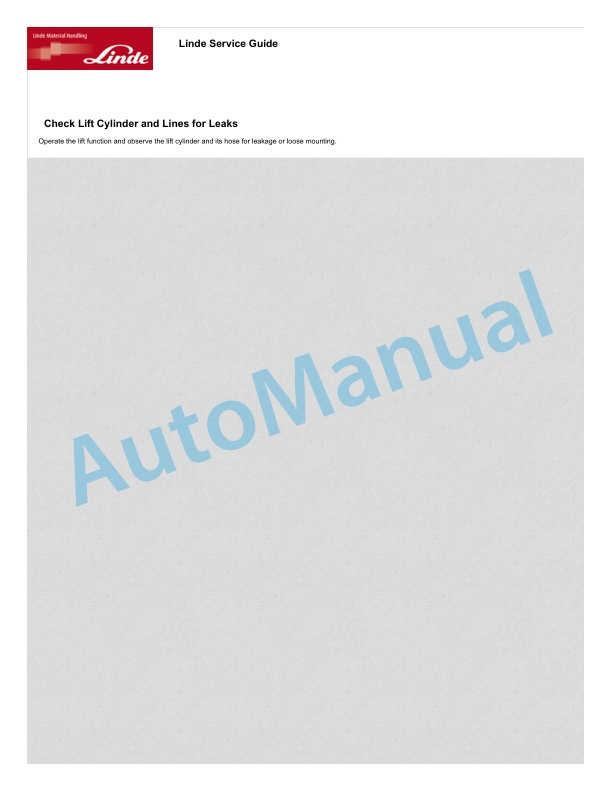

  • 1.6.4.6. Check Lift Cylinder and Lines for Leaks
  • 1.6.4.7. Check Hydraulic Oil Level
  • 1.6.4.8. Check Drive Wheel and Fasteners
  • 1.6.4.9. Lubricate Drive Axle Swivel Bearing
  • 1.6.4.10. Lubricate Tie Bar Linkage

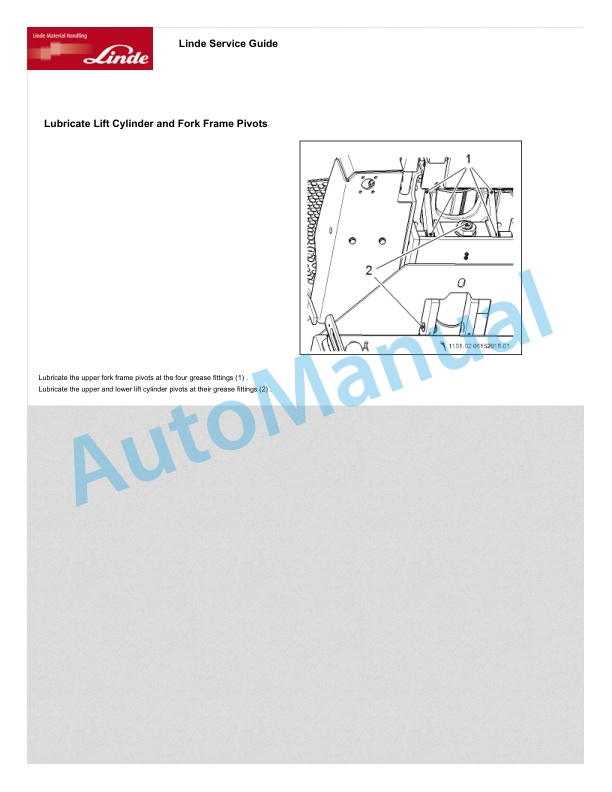

  • 1.6.4.11. Lubricate Lift Cylinder and Fork Frame Pivots
  • 1.6.4.12. Lubricate Caster Swivel Bearings
  • 1.6.4.13. Lubricate Steering Gear (Electric steer only)
  • 1.6.5. Scheduled Maintenance
  • 1.6.5.1. General Maintenance Information
  • 1.6.5.2. Maintenance Schedule
  • 1.6.6. Fluids and Lubricants
  • 1.6.6.1. Fluid and Lubricant Specifications
  • 1.6.6.2. Capacities
  • 1.6.7. Troubleshooting
  • 1.6.7.1. Fuses
  • 1.6.7.2. Diagnostic Connector
  • 1.6.7.3. Maintenance Intervals
  • 1.7. Technical Data
  • 1.7.1. Specifications EW
  • 1.7.2. Specifications EWR
