Linde 1190-01 – P-matic, P30C, P50C Operating Instructions SN W41190V00349 and up

$20.00

Type Of Manual: Operating Instructions
Manual ID: SN W41190V00349 and up
Format: PDF
Size: 26.9MB
Number of Pages: 262
Serial Number:
SN W41190V00349 and up

Category: Linde Operator Manual PDF

Model List:
- P-matic
- P30C
- P50C

1. Leadacid battery charger 24V
2. Leadacid battery charger 24V . 48V
3. Leadacid battery charger 24V . 48V . 80V
4. LiIonCharger 18 kW
5. Lithiumion batteriesD12 . 14, L12 . 14, N24HP, N20HP . L . Li, P30 . 50C, T20 . 25 AP . SP, T30
5.1. Table of content
5.2. Introduction
5.2.1. Introduction
5.2.2. Information on the conformity of lithiumion batteries
5.3. Safety
5.3.1. Special lithiumion safety rules
5.3.2. What to do in the event of incorrect use
5.3.3. Personal protective measures following an incident
5.3.4. What to do in the event of an accidental spillage
5.3.5. Transporting a lithiumion battery
5.3.6. Scrapping lithiumion batteries
5.4. General views
5.4.1. Lithiumion battery types
5.4.2. Labels on the top of lithiumion batteries
5.4.3. Labels on the sides of lithiumion batteries
5.5.1. Checking the charge status
5.5.2. Connecting.disconnecting the battery connector
5.5.3. Commissioning a truck equipped with a side access lithiumion battery
5.5.4. Automatic battery shutoff
5.5.5. Battery fitted with a compartment
5.5.6. Display on a truck equipped with a lithiumion battery
5.5.7. Display functions
5.5.8. Installing the external charger
5.5.9. Charging lithiumion batteries using an external charger
5.5.10. Using the side socket to charge the battery
5.5.11. Battery charging times
5.5.12. Side access lithiumion battery Changing the battery
5.5.13. Battery error codes
5.5.14. Lithiumion batteries Longterm storage
5.6. Maintenance
5.6.1. Maintenance plan for lithiumion batteries
5.6.2. Chassis, bodywork and fittings
5.6.2.1. Cleaning the lithiumion battery
5.6.3. Electrical equipment
5.6.3.1. Harnesses and cables
5.7. Technical specifications
5.7.1. Lithiumion battery weight precision
6. Tow tractorP30C, P50C
6.1. Table of content
6.2. Introduction
6.2.1. Your truck
6.2.2. Conformity marking
6.2.3. Declaration that reflects the content of the declaration of conformity
6.2.4. Identification label
6.2.5. Correct use
6.2.6. Description of use and climatic conditions
6.2.7. Impermissible use
6.2.8. Symbols used
6.2.9. Taking delivery of the industrial truck
6.2.10. Rules for the operating company of industrial trucks
6.2.11. Disposing of gel and lead batteries
6.3. Safety
6.3.1. Safety regulations
6.3.2. Handling consumables
6.3.3. Emissions
6.3.3.1. Noise emission values
6.3.3.2. Vibration values for upper limbs
6.3.4. Residual risks
6.3.5. Stability
6.3.6. Competent person
6.4. General views
6.4.1. General view of the truck
6.4.2. View of the technical compartment
6.4.3. Controls
6.4.4. Multifunction indicator
6.4.5. Labels
6.5.1. Technical description
6.5.2. Checks before first commissioning

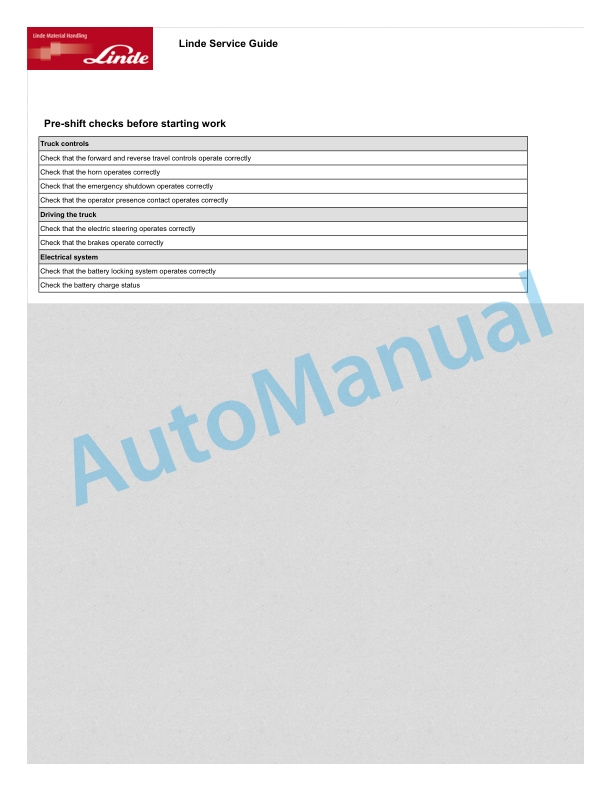

6.5.3. Preshift checks before starting work
6.5.4. Daily checks before starting work
6.5.4.1. Checking the drive direction controls
6.5.4.2. Checking the electric steering
6.5.4.3. Checking the brakes
6.5.4.4. Checking the safety devices
6.5.5. Truck operating instructions
6.5.6. Driving regulations
6.5.7. Display
6.5.7.1. Display settings
6.5.8. Driving
6.5.8.1. Identification of the direction of travel
6.5.8.2. Startup
6.5.8.3. Forward travel . reverse travel
6.5.8.4. Steering
6.5.8.5. Changing the drive direction
6.5.8.6. Emergency stop button
6.5.8.7. Operation in rideon mode
6.5.8.8. Braking, horn, lighting
6.5.8.9. Driving on a slope
6.5.8.10. Safety when cornering speed limitation
6.5.9. connect access system (LFM)
6.5.10. Transporting loads
6.5.10.1. Coupling controls

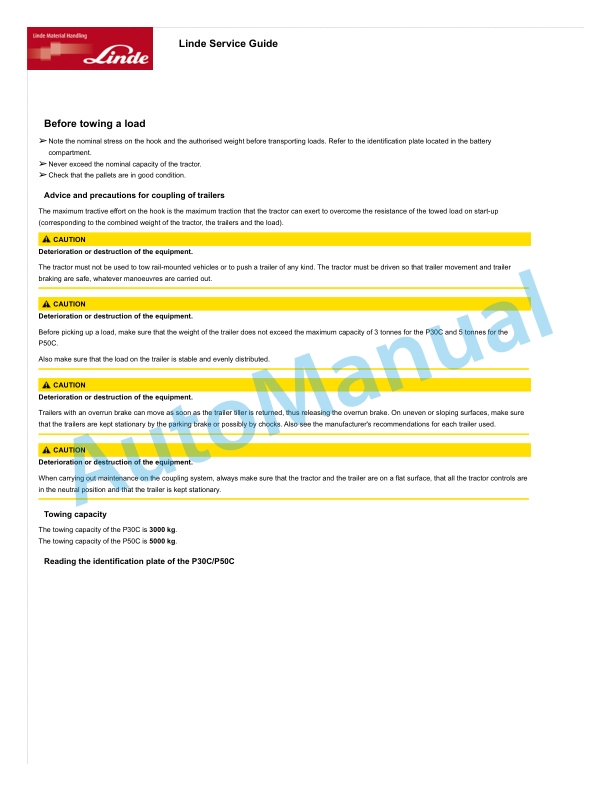

6.5.10.2. Before towing a load
6.5.10.3. Coupling the trailer
6.5.10.4. Driving with a trailer
6.5.11. Before exiting the truck
6.5.12. Gel and lead batteries
6.5.12.1. General information on batteries
6.5.12.2. Charging the battery
6.5.12.3. Checking the battery charge status
6.5.12.4. Opening the battery cover
6.5.12.5. Plugging in . unplugging the battery connector
6.5.12.6. Battery charging with an external charger
6.5.12.7. Side access battery unlocking.locking the battery
6.5.12.8. Replacing the battery
6.5.12.9. Changing the battery using a hoist
6.5.12.10. Changing the side access battery using a roller frame
6.5.12.11. Changing the side access battery using a trolley
6.5.13. Handling the truck in an emergency
6.5.13.1. Towing the tow tractor
6.5.14. Handling the truck in specific situations
6.5.14.1. Slinging the tow tractor
6.5.14.2. Lifting the truck
6.6. Maintenance
6.6.1. General information
6.6.2. Technical data for inspection and maintenance
6.6.3. Recommended lubricants
6.6.4. Accessing the technical compartment
6.6.5. Regular maintenance
6.6.6. Maintenance schedule
6.6.7. Chassis, bodywork and fittings
6.6.7.1. Cleaning the tractor
6.6.7.2. Cleaning the battery and the battery compartment
6.6.7.3. Side access battery selection of battery compartment opening side
6.6.7.4. Seat checking the condition
6.6.7.5. Handlebar checking the condition
6.6.8. Motor
6.6.8.1. Cleaning the traction motor cooling fins
6.6.9. Steering.wheels.braking
6.6.9.1. Checking the condition of the wheels
6.6.9.2. Testing the steering geared motor pinion.turntable
6.6.10. Electrical equipment
6.6.10.1. Cleaning and blowing out the electrical components
6.6.10.2. Checking and cleaning the fan
6.6.10.3. Checking the condition of cables, terminals and the battery connector
6.6.10.4. Checking the electrolyte level and topping up with water
6.6.11. Storage and disposal
6.6.11.1. Tow tractor storage
6.6.11.2. Disposal of old trucks
6.7. Datasheet
6.7.1. Datasheet P30CP50C
6.7.2. Ecodesign requirements for electric motors and variable speed drives
