Linde 332-01 – H35D, H35T, H40D, H40T Spare Parts Manual SN 01.82 and up SN up to 12.89
$30.00
- Type Of Manual: Spare Parts Manual
- Manual ID: SN 01.82 and up SN up to 12.89
- Format: PDF
- Size: 63.1MB
- Number of Pages: 448
- Serial Number:
SN 01.82 and up SN up to 12.89
-
Model List:
- H35D
- H35T
- H40D
- H40T
- 1. H35.40
- 1.1. Power unit engine.motor
- 1.1.1. Flywheel, adapter housing and engine mounting
- 1.1.2. Air filter, cooling air path and pipe cooler
- 1.1.3. exhaust system
- 1.2. Transmission wheels and tyres
- 1.2.1. WHEEL DRIVE AND BRAKE
- 1.2.2. Variable displacement hydraulic motor BMV 50 T
- 1.2.3. Housing, drive shaft, cradle and port plate
- 1.2.4. Valve plate mount, feed pump and servo control
- 1.2.5. WHEELS AND TYRES
- 1.3. chassis, bodywork and fittings
- 1.3.1. Chassis, overhead guard and counterweights
- 1.3.2. Hood and coverings
- 1.3.3. Seat support and drivers seat
- 1.4. STEERING AXLE AND STEERING COMPONENTS
- 1.4.1. Steering axle and steering components
- 1.4.2. Spare steering axle (can be lubricated)
- 1.4.3. steering hydrostatic
- 1.5. Travel and brake operation
- 1.5.1. Travel operation and speed control
- 1.5.2. Parking brake and foot brake operation
- 1.6. electrical installation
- 1.6.1. ELECTRIC ARMATURES AND BATTERY
- 1.6.2. CABLE HARNESSES AND LINES
- 1.6.3. Electric armatures, truck lighting and warning blinker equipment
- 1.7. hydraulic equipment
- 1.7.1. HYDRAULIC PUMP, FILTER, CONTROL VALVE AND LINES
- 1.7.2. Hydraulic pump and lines for hydrostatic steering
- 1.7.3. Oil tank and lines for hydraulic travel system
- 1.7.4. LINES FROM CONTROL VALVE TO TILT AND LIFT CYLINDER
- 1.7.5. cylinder tilt
- 1.8. MAST ASSEMBLY AND AUXILIARY HYDRAULIC SE
- 1.8.1. Mast, fork carriage and fork arms
- 1.8.2. cylinder lift
- 1.8.3. Duplex mast and lift cylinder

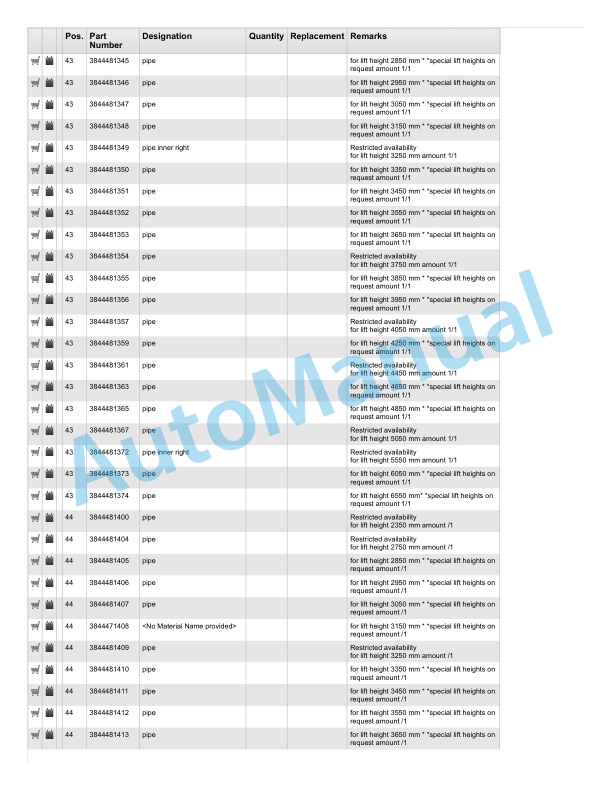

- 1.8.4. Single and double auxiliary hydraulic services, standard mast execution
- 1.8.5. Single and double auxiliary hydraulic services, duplex mast execution
- 1.9. OPTIONS AND ACCESSORIES
- 1.9.1. Load backrest, weather protection, mounting stage 1 and 2
- 1.9.2. light spot
- 1.9.3. Preliminary dustguard filter assembly
- 1.9.4. Road traffic equipment
- 1.10. Miscellaneous
- 1.10.1. Miscellaneous
- 2. H35.40
- 2.1. power unit engine
- 2.1.1. Flywheel, adapter housing and engine mounting
- 2.1.2. Air filter, cooling air path and pipe cooler
- 2.1.3. exhaust system
- 2.1.4. Flywheel, adapter housing and engine mounting, power gas model
- 2.1.5. Exhaust system, LP gas version
- 2.1.6. Water and oil cooling system with lines, LP gas version 1
- 2.1.7. Cooler, execution 2 LPG
- 2.1.8. Piping installation for cooler, execution 2 LPG
- 2.1.9. Air filter and power gas equipment
- 2.2. Transmission, wheels, and tyres
- 2.2.1. WHEEL DRIVE AND BRAKE
- 2.2.2. Variable displacement hydraulic motor BMV 50 T
- 2.2.3. Housing, drive shaft, cradle and port plate
- 2.2.4. PORT PLATE HOUSING, BOOST PUMP AND FILTER
- 2.2.5. Hydraulic remote control
- 2.2.6. WHEELS AND TYRES
- 2.3. chassis, bodywork and fittings
- 2.3.1. Chassis, overhead guard and counterweights
- 2.3.2. Hood and coverings
- 2.3.3. Seat support and drivers seat, execution 1
- 2.3.4. SEAT 2. VERSION
- 2.4. STEERING AXLE AND STEERING COMPONENTS
- 2.4.1. Steering axle, execution 1, and steering components
- 2.4.2. Replacement steering axle (can be greased)
- 2.4.3. Steering axle, execution 2
- 2.5. Travel and brake control linkage
- 2.5.1. Travel operation and speed control
- 2.5.2. servo control apparatus
- 2.5.3. PARKING BRAKE AND FOOT BRAKE LINKAGE
- 2.5.4. Additional parts for single pedal and single lever operation
- 2.6. electrical installation
- 2.6.1. ELECTRIC ARMATURES AND BATTERY

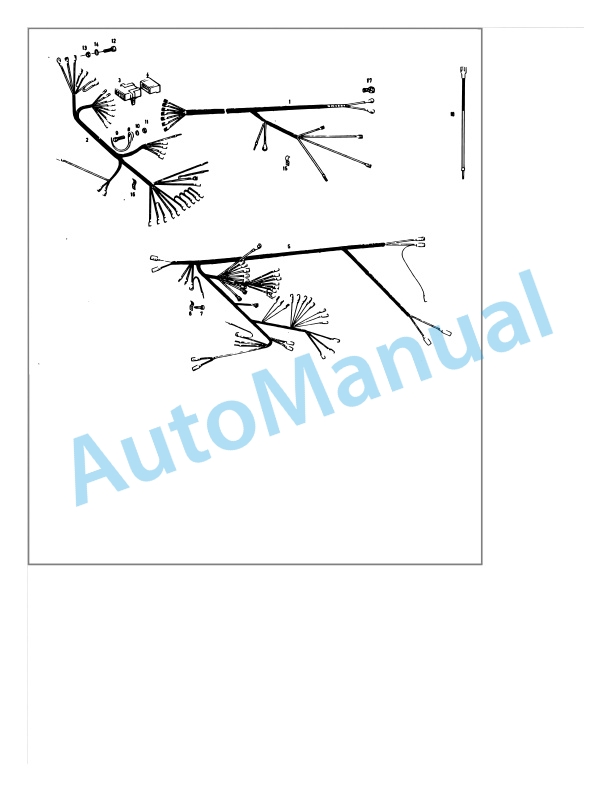

- 2.6.2. CABLE HARNESSES AND LINES
- 2.6.3. Electric armatures, truck lighting and warning blinker equipment
- 2.7. hydraulic equipment
- 2.7.1. Hydraulic pump, filter, control valve and lines, diesel version
- 2.7.2. Hydraulic pump and lines, LP gas version
- 2.7.3. Hydraulic pump and lines for hydrostatic steering, Diesel version
- 2.7.4. Lines for hydrostatic steering, power gas model
- 2.7.5. Oil tank and lines for hydraulic travel system
- 2.7.6. Lines for hydraulic travel system, power gas model
- 2.7.7. LINES FROM CONTROL VALVE TO TILT AND LIFT CYLINDER
- 2.7.8. cylinder tilt
- 2.8. Mast assembly and auxiliary hydraulic se
- 2.8.1. Standard mast type 384, fork carriage and fork arms
- 2.8.2. Lift cylinder for standard type 384
- 2.8.3. Duplex mast and lift cylinder type 385
- 2.8.4. Single and double auxiliary hydraulic services for standard mast type 384
- 2.8.5. Single and double auxiliary hydraulic services, execution 1, for duplex mast typ
- 2.8.6. Single and double auyiliary hydraulic services, execution 2, for duplex mast typ
- 2.8.7. Triplex mast type 389
- 2.8.8. Lift cylinder for triplex mast type 389
- 2.8.9. Single and double auxiliary hydraulic services for triplex mast type 389
- 2.8.10. Standard mast type 166, fork carriage and fork arms
- 2.8.11. Duplex mast type 167
- 2.8.12. Triplex mast type 168
- 2.8.13. Lift cylinder for standard, duplex and triplex mast types 166, 167 and 168
- 2.8.14. Auxiliary hydraulics for standard mast type 166
- 2.8.15. Auxiliary hydraulics for duplex mast type 167
- 2.8.16. Auxiliary hydraulics for triplex mast 168
- 2.9. Options and accessories
- 2.9.1. Load backrest, weather protection, mounting stage 1 and 2
- 2.9.2. ROAD TRAFFIC EQUIPMENT AND SPOT LIGHT
- 2.9.3. Preliminary dustguard filter assembly
- 2.10. Miscellaneous
- 2.10.1. Miscellaneous
