New Holland 160GMS For Boomer 25 Compact Mower Deck Operation and Maintenance Manual 51567834

$20.00

Type Of Manual: Operation and Maintenance Manual
Manual ID: 51567834
Format: PDF
Size: 6.4MB
Number of Pages: 74
Serial Number:
51567834

Category: New Holland Operator Manual PDF

Model List:
- 160GMS For Boomer 25 Compact Mower Deck

1. GENERAL INFORMATION
1.1. Note to the Owner
1.2. Intended use
1.3. Product Identification Number (PIN)
1.4. Operators manual storage on the machine
1.5. Machine orientation
1.6. Machine components
2. SAFETY INFORMATION
2.1. Safety rules and signal word definitions
2.2. Safety rules
2.3. Do not operate tag
2.4. Ecology and the environment
2.5. Safety signs
2.6. Instructional signs
3. WORKING OPERATIONS
3.1. General information
3.1.1. Mower deck Operating

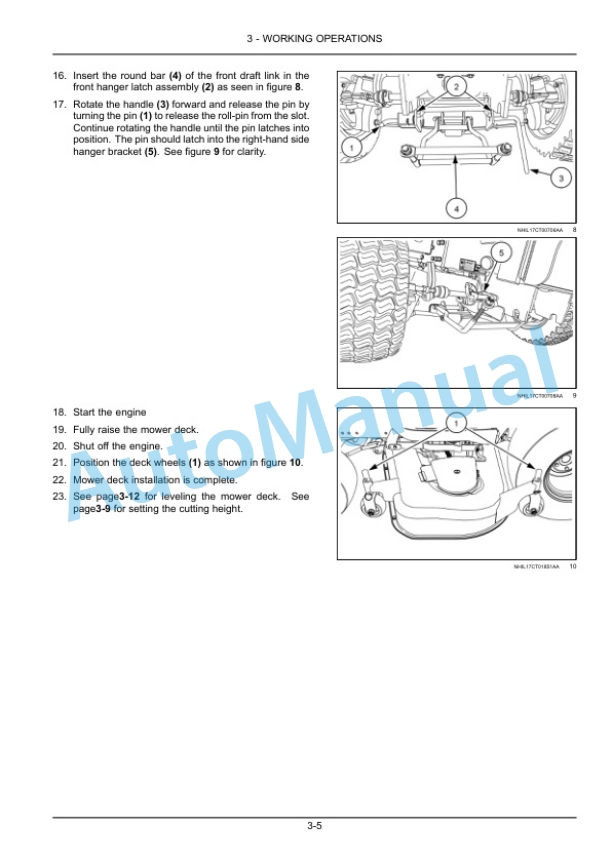

3.1.2. Mower deck Install
3.1.3. Mower deck Removal
3.1.4. Cutting height Adjust
3.1.5. Mower deck Lockup
3.1.6. Mower deck levelness Adjust
3.1.7. Blades Replace
3.1.8. Blade Remove
3.1.9. Blade Sharpen
3.1.10. Blade Install

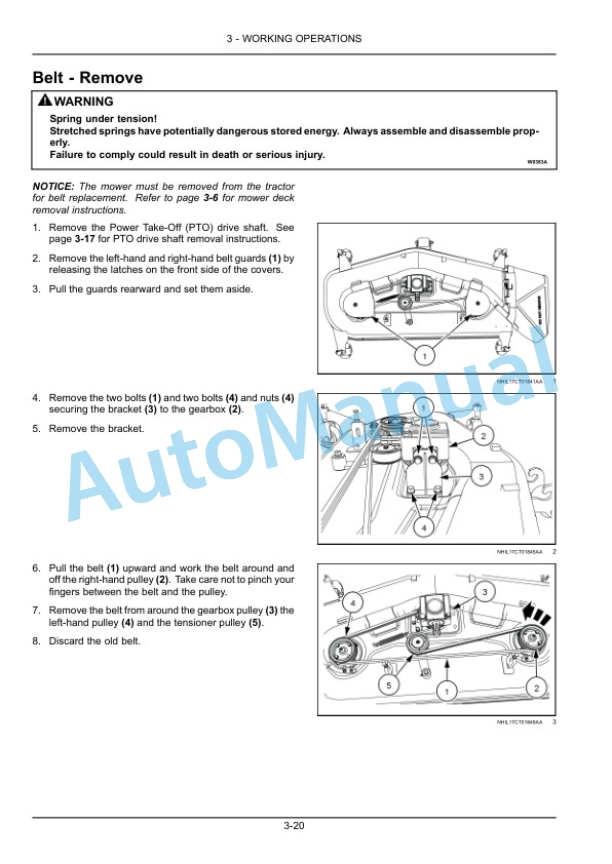

3.1.11. Belt Remove
3.1.12. Belt Install
3.1.13. Power TakeOff (PTO) shaft Install
3.1.14. Power TakeOff (PTO) shaft Remove
3.1.15. Common mowing problems
4. MAINTENANCE
4.1. General information
4.1.1. Safety rules
4.2. Maintenance planning
4.2.1. Mower deck attachment Maintenance chart
4.3. Every 10 hours or daily
4.3.1. Grease fittings Lubricate
4.3.2. Gearbox oil level Check
4.4. Initial 50 hours
4.4.1. Gearbox oil Change fluid
4.5. Every 200 hours

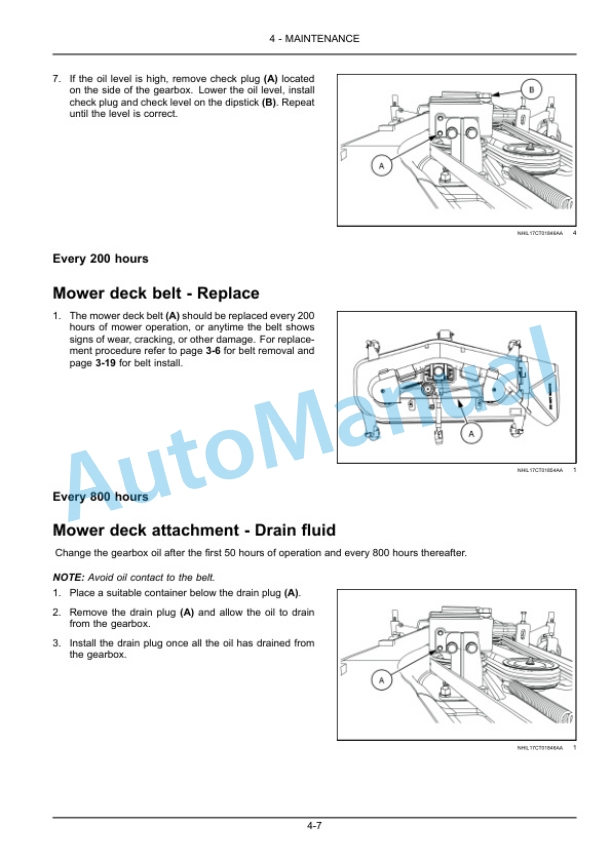

4.5.1. Mower deck belt Replace
4.6. Every 800 hours
4.6.1. Mower deck attachment Drain fluid
4.7. Storage
4.7.1. Storing the mower deck
5. TROUBLESHOOTING
5.1. Symptom(s)
5.1.1. Troubleshooting Foreword
5.1.2. Mower deck attachment Troubleshooting
6. SPECIFICATIONS
6.1. General specifications
7. FORMS AND DECLARATIONS
7.1. Delivery report Dealer copy
7.2. Delivery report Owner copy
