New Holland CR8.90, CR9.90, CX8.90 Tier 4A, CR10.90, CX8.80 Tier 4B Final Combine Service Manual 48017723

$30.00

Type Of Manual: Service Manual
Manual ID: 48017723
Format: PDF
Size: 11.8MB
Number of Pages: 259
Serial Number:
48017723

Category: New Holland Service Manual PDF

Model List:
- CR8.90 Tier 4A Combine
- CR9.90 Tier 4A Combine
- CX8.90 Tier 4A Combine
- CR10.90 Tier 4B Final Combine
- CX8.80 Tier 4B Final Combine

1. Brakes and controls 33
1.1. Hydraulic service brakes 202
1.2. Parking brake or parking lock 110
2. Hydraulic systems 35
2.1. Hydraulic systems 000
2.2. Reservoir, cooler, and filters 300

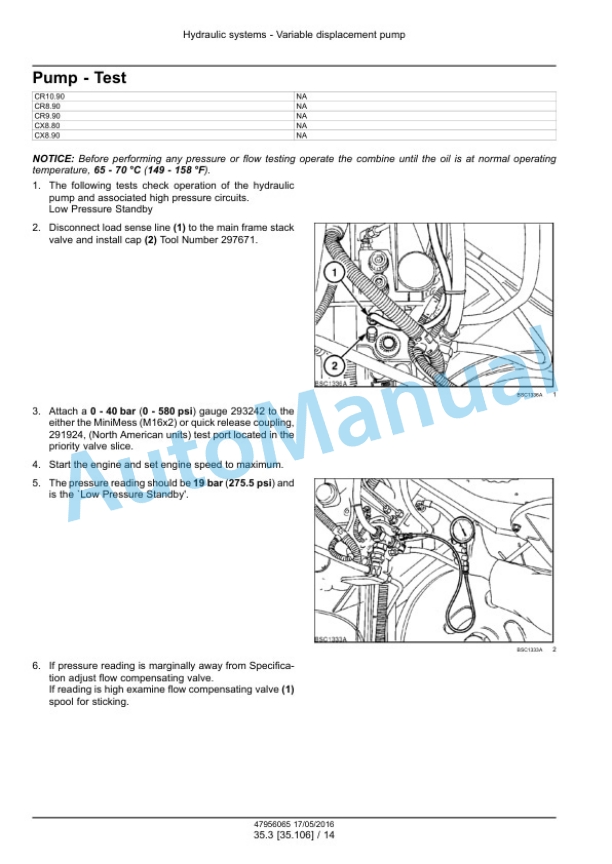

2.3. Variable displacement pump 106
2.4. Pump control valves 102
2.5. Main control valve 359
2.6. Regulated/Low pressure system 322

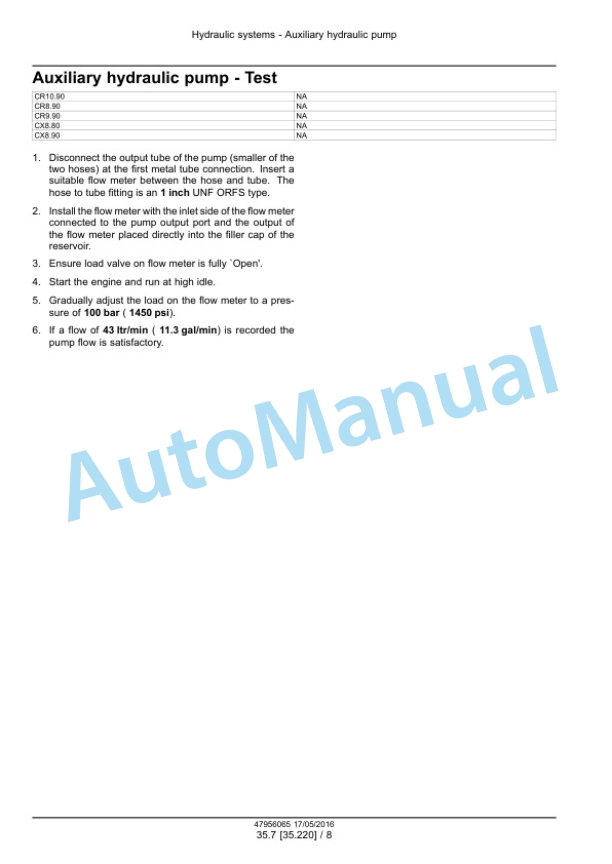

2.7. Auxiliary hydraulic pump 220
2.8. Header or attachment height system 410
2.9. Header or attachment leveling system 602
2.10. Header reverser drive 760

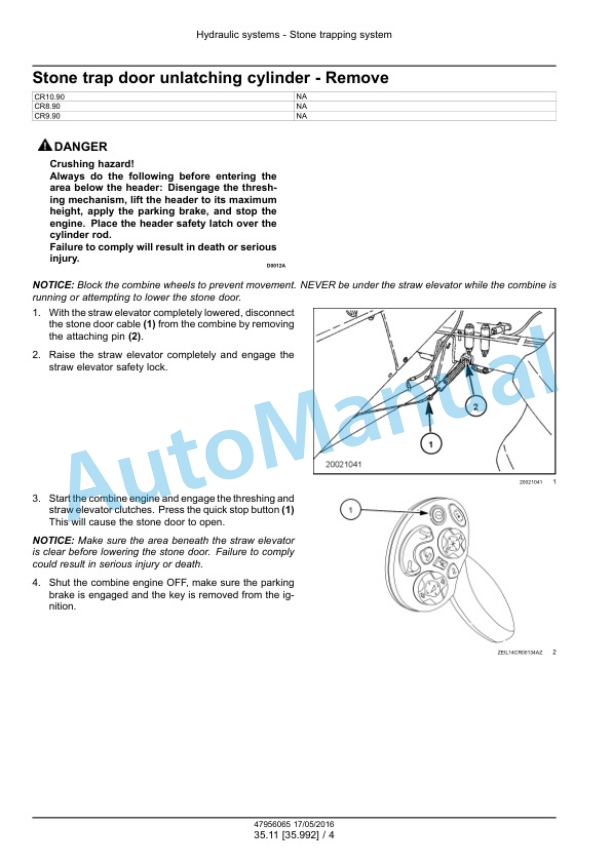

2.11. Stone trapping system 992
2.12. Positive Straw Discharge (PSD) 994
2.13. Chaff spreader control 796
2.14. Grain tank unload system 440
2.15. Variator system 450
