Yale A974 GLP20LX, GLP25LX, GDP20LX, GDP25LX Parts Manual 550038064

$50.00

Series: A974
Type Of Manual: Parts Manual
Manual ID: 550038064
Format: PDF

Category: Yale Parts Manual PDF

Model List:
- GLP20LX, GLP25LX, GDP20LX, GDP25LX

1. GENERAL TRUCK
1.1. COUNTERWEIGHT
1.2. OVERHEAD GUARD
1.3. SEMI-SUSPENSION SEAT MANUAL HYDRAULICS
1.4. FULL SUSPENSION SEAT MANUAL HYDRAULIC – SHEET 1 OF 3
1.5. FULL SUSPENSION SEAT RECLINER AND DAMPER KITS – SHEET 2 OF 3
1.6. FULL SUSPENSION SEAT SERVICE KITS FOR NON-SWIVEL – SHEET 3 OF 3
1.7. FLOORPLATES AND COVERS
1.8. COWL MOUNT
1.9. LOAD BACKREST EXTENSION
1.10. FORKS STANDARD
1.11. FORKS OPTIONAL ( 10/2013)
1.12. FORKS OPTIONAL (10/2013 )
1.13. LABELS SHEET 1 OF 2
1.14. LABELS SHEET 2 OF 2
1.15. BOLT ON CAB WITH STANDARD (HIGH) OVERHEAD GUARD FRONT SCREEN WITH WIPER/WASHER – PAGE 1 OF 2
1.16. BOLT ON CAB WITH STANDARD (HIGH) OVERHEAD GUARD FRONT SCREEN WITH WIPER/WASHER – PAGE 2 OF 2
1.17. BOLT ON CAB WITH STANDARD (HIGH) OVERHEAD GUARD TOP SCREEN
1.18. BOLT ON CAB WITH STANDARD (HIGH) OVERHEAD GUARD PVC DOORS
1.19. BOLT ON CAB WITH STANDARD (HIGH) OVERHEAD GUARD REAR SCREEN WITH WIPER/WASHER – PAGE 1 OF 2
1.20. BOLT ON CAB WITH STANDARD (HIGH) OVERHEAD GUARD REAR SCREEN WITH WIPER/WASHER – PAGE 2 OF 2
2. ENGINE ASSEMBLY – DIESEL
2.1. ENGINE MOUNTING YANMAR – 2.6L DIESEL
2.2. CYLINDER HEAD YANMAR – 2.6L DIESEL
2.3. CYLINDER BLOCK YANMAR – 2.6L DIESEL
2.4. OIL PAN YANMAR – 2.6L DIESEL
2.5. GEAR HOUSING YANMAR – 2.6L DIESEL
2.6. CAMSHAFT AND DRIVE GEAR YANMAR – 2.6L DIESEL
2.7. CRANKSHAFT AND PISTONS YANMAR – 2.6L DIESEL
2.8. WATER PUMP YANMAR – 2.6L DIESEL
2.9. LUBRICATION SYSTEM YANMAR – 2.6L DIESEL
2.10. INTAKE AND EXHAUST MANIFOLD YANMAR – 2.6L DIESEL
2.11. FLYWHEEL AND HOUSING YANMAR – 2.6L DIESEL
2.12. COOLING SYSTEM YANMAR – 2.6L DIESEL
2.13. EXHAUST SYSTEM YANMAR – 2.6L DIESEL
3. ENGINE ASSEMBLY – LPG
3.1. ENGINE MOUNTING
3.2. ASSEMBLED ENGINE MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.3. CYLINDER HEAD AND COVER MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.4. CYLINDER BLOCK MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.5. TIMING GEAR COVER AND OIL PAN MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.6. CRANKSHAFT AND PISTONS MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.7. INTAKE MANIFOLD MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.8. EXHAUST MANIFOLD MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.9. ENGINE COOLING SYSTEM MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.10. EMISSION CONTROL SYSTEM MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.11. OIL PUMP AND FILTER MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.12. CAMSHAFT AND VALVES MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
3.13. FLYWHEEL AND HOUSING ASSEMBLY MAZDA 2.0L AND 2.2L LPG
3.14. EXHAUST SYSTEM MAZDA 2.0L LPG – WITHOUT CATALYTIC CONVERTER
3.15. EXHAUST SYSTEM MAZDA 2.2L LPG – WITHOUT CATALYTIC CONVERTER
3.16. COOLING SYSTEM MAZDA 2.0L AND 2.2L LPG
4. FUEL SYSTEM
4.1. AIR INTAKE SYSTEM MAZDA 2.0L AND 2.2L LPG
4.2. AIR INTAKE SYSTEM YANMAR DIESEL
4.3. AIR INTAKE SYSTEM AIR FILTER ASSEMBLY
4.4. FUEL SYSTEM DIESEL ( 1/2013)
4.5. FUEL SYSTEM YANMAR DIESEL (1/2013 )
4.6. FUEL FILTER YANMAR DIESEL
4.7. FUEL INJECTION YANMAR DIESEL
4.8. THROTTLE CABLE LINKAGE YANMAR DIESEL
4.9. LPG FUEL TANK AND MOUNTING WITH FABRIC STRAP
4.10. LPG FUEL TANK AND MOUNTING WITH TWIN STEEL STRAP (S/N A974B01940M )
4.11. FUEL SYSTEM MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
4.12. FUEL SYSTEM HOSES AND ATTACHING PARTS MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
4.13. FUEL SUPPLY SYSTEM WITH PREMIUM LOW FUEL SENSORS AND LPG SHUTOFF SOLENOID BRACKET – MAZDA 2.0L AND 2.2L LPG (S/N A974B01940M )
4.14. FUEL SUPPLY SYSTEM WITHOUT PREMIUM LOW FUEL SENSORS AND LPG SHUTOFF SOLENOID BRACKET – MAZDA 2.0L AND 2.2L LPG (S/N A974B01940M )
4.15. MIXER AND THROTTLE BODY ASSEMBLY MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES
4.16. ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG – EMISSION COMPLIANT ENGINES ( 2/2012)
4.17. ELECTRONIC PRESSURE REGULATOR ASSEMBLY MAZDA 2.0L AND 2.2L LPG (2/2012 )
4.18. ELECTRONIC PRESSURE REGULATOR KIT MAZDA 2.0L AND 2.2L LPG
4.19. THROTTLE PEDAL AND ATTACHING PARTS
4.20. THROTTLE PEDAL ASSEMBLY STANDARD PEDAL (S/N A974B01694L )
5. ELECTRICAL SYSTEM
5.1. ELECTRICAL ARRANGEMENT LPG AND DIESEL
5.2. ENGINE ELECTRICAL SYSTEM YANMAR DIESEL
5.3. ENGINE ELECTRICAL COMPONENTS MAZDA 2.0L AND 2.2L LPG
5.4. FUEL SYSTEM SENSORS MAZDA 2.0L AND 2.2L LPG
5.5. ENGINE CONTROL MODULE MAZDA 2.0L AND 2.2L LPG
5.6. FUSE BOX POWER DISTRIBUTION MODULE
5.7. BATTERY AND CABLES
5.8. LIGHTS STOP, TAIL, TURN, BACKUP, AND STROBE – WITH OVERHEAD GUARD
5.9. DISPLAY CLUSTER WITH STEERING WHEEL
5.10. ALTERNATOR AND MOUNTING YANMAR DIESEL
5.11. WIRE HARNESS POWERTRAIN-MAZDA 2.0L AND 2.2L – SHEET 1 OF 2
5.12. WIRE HARNESS POWERTRAIN-MAZDA 2.0L AND 2.2L – SHEET 2 OF 2
5.13. WIRE HARNESS RH CHASSIS – SHEET 1 OF 2
5.14. WIRE HARNESS RH CHASSIS – SHEET 2 OF 2
5.15. WIRE HARNESS RH CHASSIS WITH SEAT BELT SEQUENCE MODULE – SHEET 1 OF 2
5.16. WIRE HARNESS RH CHASSIS WITH SEAT BELT SEQUENCE MODULE – SHEET 2 OF 2
5.17. WIRE HARNESS ADAPTER LOW FUEL PRESSURE
5.18. WIRE HARNESS YANMAR 2.6L DIESEL – POWERTRAIN
5.19. WIRE HARNESS YANMAR 2.6L DIESEL – FUSED ALTERNATOR
5.20. WIRE HARNESS LIGHTS
5.21. WIRE HARNESS LIGHTS WITH REVERSE ACTIVATED REAR WORK LIGHTS
5.22. WIRE HARNESS ALTERNATOR
6. STEERING SYSTEM
6.1. STEERING WHEEL AND COLUMN NON-ISOLATED – LPG
6.2. STEERING WHEEL AND COLUMN ISOLATED – DIESEL
6.3. STEERING COLUMN ASSEMBLY NON-ISOLATED – LPG
6.4. STEERING COLUMN ASSEMBLY ISOLATED, DIESEL
6.5. STEERING AXLE AND ATTACHING PARTS
6.6. STEERING CYLINDER
6.7. STEER TIRE AND WHEEL SOLID PNEUMATIC
6.8. STEER TIRE AND WHEEL SOLID PNEUMATIC (4/2014 )
7. BRAKE SYSTEM
7.1. BRAKE ASSEMBLY
7.2. BRAKE PEDAL LINKAGE
7.3. PARK BRAKE
8. Drive Axle
8.1. DRIVE AXLE ASSEMBLY
8.2. CENTER SECTION
8.3. DRIVE TIRES AND WHEELS SOLID PNEUMATIC
8.4. DRIVE TIRE AND WHEEL SOLID PNEUMATIC (4/2014 )
9. TRANSMISSION
9.1. TRANSMISSION COOLING MAZDA 2.0L AND 2.2L LPG
9.2. TRANSMISSION COOLING YANMAR DIESEL
9.3. TRANSMISSION MOUNT SINGLE SPEED
9.4. TORQUE CONVERTER
9.5. TORQUE CONVERTER HOUSING AND ATTACHING PARTS SINGLE SPEED, ALUMINUM CHAIN DRIVE
9.6. TRANSMISSION HOUSING AND ASSEMBLY SINGLE SPEED, ALUMINUM CHAIN DRIVE
9.7. STATOR SUPPORT HOUSING

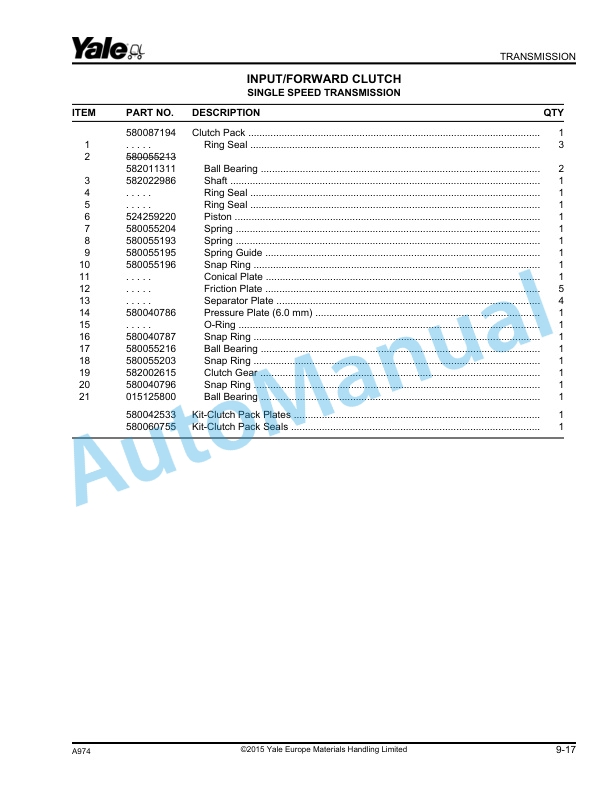

9.8. INPUT/FORWARD CLUTCH SINGLE SPEED TRANSMISSION
9.9. COUNTER/REVERSE CLUTCH SINGLE SPEED TRANSMISSION
10. HYDRAULIC SYSTEM
10.1. HYDRAULIC SUPPLY AND RETURN
10.2. HYDRAULIC HOSES STEERING
10.3. HYDRAULIC HOSES TILT, HOIST AND AUXILIARY
10.4. GEAR PUMP ASSEMBLY
10.5. HYDRAULIC FILTER
10.6. HAND LEVERS 2 AND 3 FUNCTION
10.7. HYDRAULIC CONTROL VALVE MANUAL – 3 FUNCTION
10.8. CONTROL VALVE LOCKOUT GROUP MANUAL CONTROL VALVE
10.9. VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE – THREE FUNCTION
10.10. VALVE ASSEMBLY, AUXILIARY MANUAL CONTROL VALVE – THREE FUNCTION
10.11. VALVE ASSEMBLY, OUTLET SECTION MANUAL CONTROL VALVE – THREE FUNCTION
10.12. STEERING CONTROL UNIT
10.13. TILT CYLINDER AND MAST INSTALLATION
10.14. TILT CYLINDER ASSEMBLY

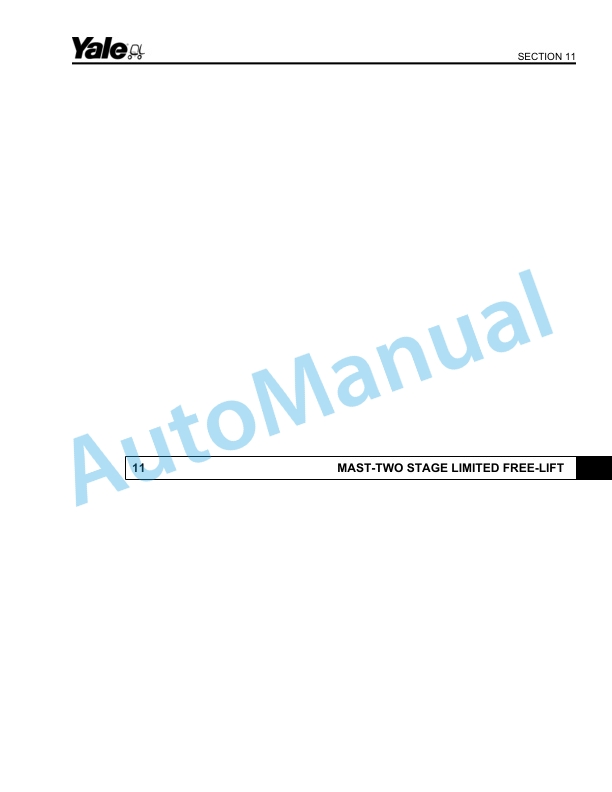

11. Mast-Two Stage Limited Free-Lift
11.1. OUTER MAST TWO STAGE LIMITED FREE LIFT
11.2. INNER MAST TWO STAGE LIMITED FREE LIFT
11.3. MAIN LIFT TWO STAGE LIMITED FREE LIFT
11.4. MAIN CYLINDER TWO STAGE LIMITED FREE LIFT
11.5. HEADER HOSE AND ATTACHING PARTS TWO STAGE LIMITED FREE LIFT – 3 FUNCTION
11.6. CARRIAGE TWO STAGE LIMITED FREE-LIFT
11.7. AUXILIARY EXTENSION TUBES TWO STAGE LIMITED FREE LIFT

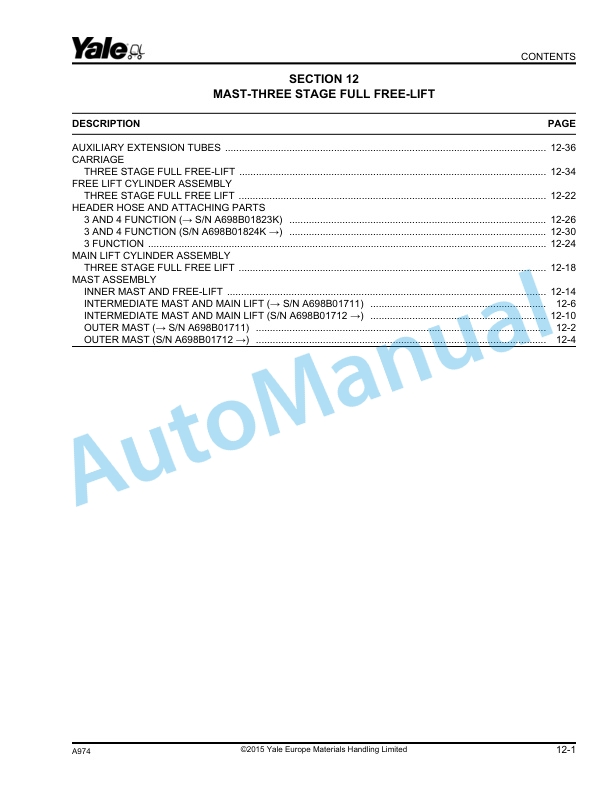

12. Mast-Three Stage Full Free-Lift
12.1. MAST ASSEMBLY OUTER MAST ( S/N A698B01711)
12.2. MAST ASSEMBLY OUTER MAST (S/N A698B01712 )
12.3. MAST ASSEMBLY INTERMEDIATE MAST AND MAIN LIFT ( S/N A698B01711)
12.4. MAST ASSEMBLY INTERMEDIATE MAST AND MAIN LIFT (S/N A698B01712 )
12.5. MAST ASSEMBLY INNER MAST AND FREE-LIFT
12.6. MAIN LIFT CYLINDER ASSEMBLY THREE STAGE FULL FREE LIFT
12.7. FREE LIFT CYLINDER ASSEMBLY THREE STAGE FULL FREE LIFT
12.8. HEADER HOSE AND ATTACHING PARTS 3 FUNCTION
12.9. HEADER HOSE AND ATTACHING PARTS 3 AND 4 FUNCTION ( S/N A698B01823K)
12.10. HEADER HOSE AND ATTACHING PARTS 3 AND 4 FUNCTION (S/N A698B01824K )
12.11. CARRIAGE THREE STAGE FULL FREE-LIFT
12.12. AUXILIARY EXTENSION TUBES
13. OPTIONS
13.1. MIRRORS
13.2. AUDIBLE BACKUP ALARM
13.3. FIRE EXTINGUISHER
13.4. INTEGRAL SIDE-SHIFT CARRIAGE THREE STAGE FULL FREE-LIFT
13.5. INTEGRAL SIDE-SHIFT HYDRAULIC HOSES THREE STAGE FULL FREE-LIFT
13.6. INTEGRAL SIDE-SHIFT CYLINDER
13.7. INTEGRAL SIDE-SHIFT ASSEMBLY TWO STAGE LIMITED FREE-LIFT
13.8. INTEGRAL SIDE-SHIFT HYDRAULIC HOSES TWO STAGE LIMITED FREE-LIFT
14. FIELD CONVERSION KITS
14.1. REPLACEMENT KITS
14.2. ADD ON OPTION KITS BOLT ON WEATHER PROTECTION – > UP TO JUNE 2014
14.3. ADD ON OPTION KITS BOLT ON WEATHER PROTECTION – JUNE 2014 FORWARD >
14.4. SERVICE KITS WIDE HOSE SHEAVE (S/N A698B01824K ) (S/N A699B01563K )
14.5. ADD ON TELEMETRY KITS
15. NUMERICAL INDEX
16. USER SUPPORT INFORMATION
