Yale C802 MPW050E Parts Manual 524254442

Series: C802
Type Of Manual: Parts Manual
Manual ID: 524254442
Format: PDF

Name: Yale C802 MPW050E Parts Manual 524254442
Price: 50.00 USD
Availability: InStock

$50.00

Category: Yale Parts Manual PDF

1. GENERAL TRUCK
1.1. DECAL AND PLATE LOCATION
1.2. POWER HEAD ASSEMBLY
2. ELECTRICAL SYSTEM
2.1. BATTERY SPACER
2.2. BATTERY CONNECTOR AND CABLE ASSEMBLY
2.3. CONTROL PANEL ASSEMBLY
2.4. DRIVE MOTOR
2.5. MAIN WIRE HARNESS
3. DRIVE UNIT AND BRAKE ASSEMBLY
3.1. DRIVE UNIT AND BRAKE ASSEMBLY
4. Control Handle
4.1. TILLER HANDLE ARM ASSEMBLY COMPOSITE TILLER HEAD
4.2. TILLER HEAD ASSEMBLY COMPOSITE
4.3. TILLER HANDLE ARM ASSEMBLY METAL TILLER HEAD (S/N C802N03446G )
4.4. TILLER HEAD ASSEMBLY METAL (S/N C802N03446G )
5. HYDRAULIC SYSTEM
5.1. HYDRAULIC POWER UNIT
5.2. HYDRAULIC SYSTEM
5.3. LIFT CYLINDER ASSEMBLY
6. LIFT LINKAGE AND LOAD WHEEL
6.1. FORK AND FRAME WELDMENT WITHOUT LOAD BACKREST ( S/N C802N03781H)
6.2. FORK AND FRAME WELDMENT WITHOUT LOAD BACKREST (S/N C802N03782H )
6.3. LOAD WHEEL AND LINK ASSEMBLY
6.4. LOWER LINK
6.5. UPPER LINK
7. OPTIONS
7.1. BATTERY AND MOUNTING

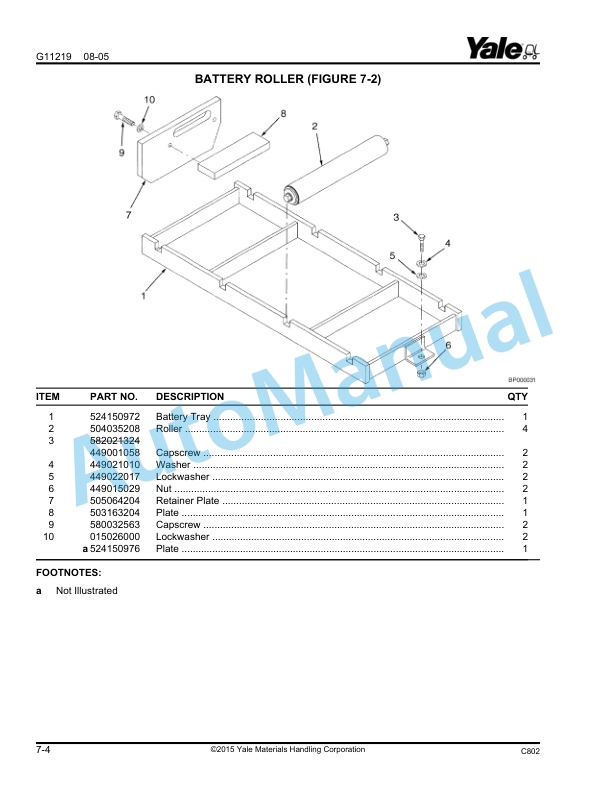

7.2. BATTERY ROLLER
7.3. CASTER ASSEMBLY
7.4. FORK AND FRAME WELDMENT OPTION WITH BOLT-ON LOAD BACKREST ( S/N C802N03781H)
7.5. FORK AND FRAME WELDMENT WITH BOLT-ON LOAD BACKREST (S/N C802N03782H )
7.6. LOAD BACKREST

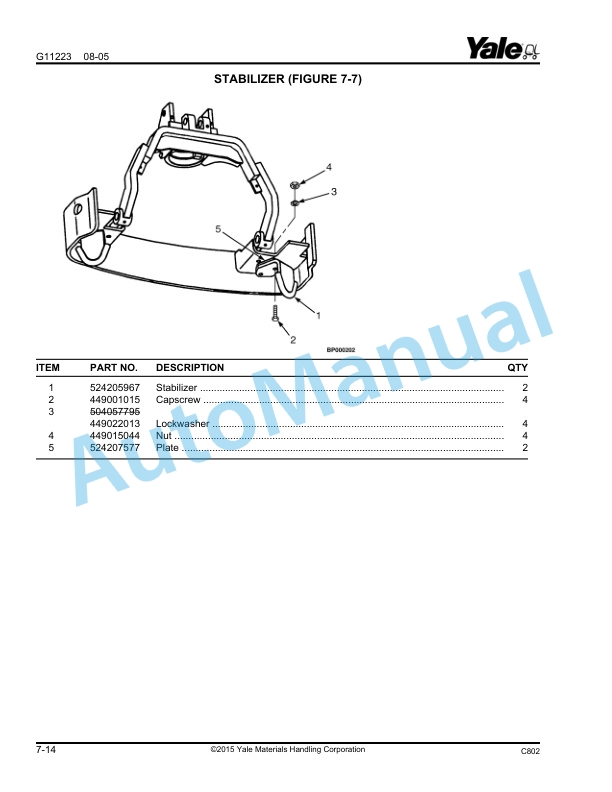

7.7. STABILIZER
7.8. ZAPI HANDSET KIT
7.9. ZAPI LAPTOP/PC KIT

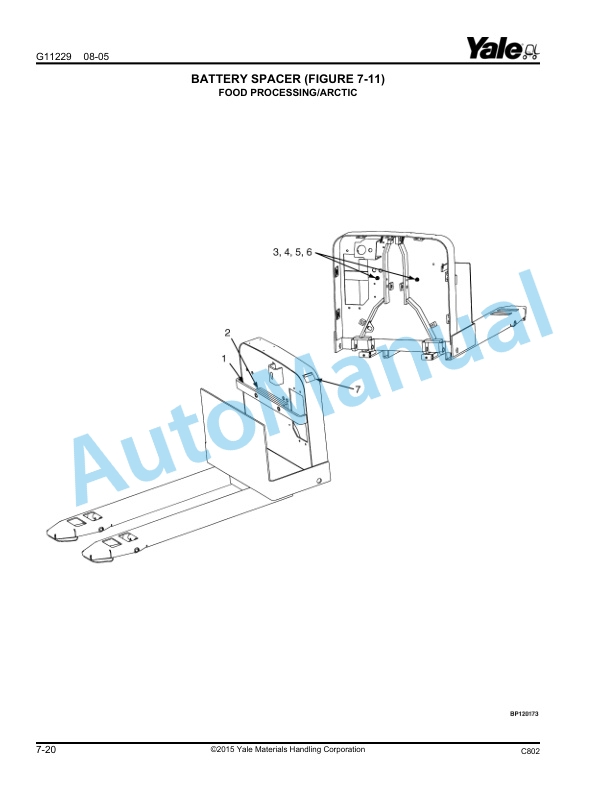

7.10. BATTERY CONNECTOR FOOD PROCESSING/ARCTIC
7.11. BATTERY SPACER FOOD PROCESSING/ARCTIC
7.12. CONTROL PANEL ASSEMBLY FOOD PROCESSING
7.13. HEATER ASSEMBLY ARCTIC
8. FIELD CONVERSION KITS
8.1. HANDLE UPGRADE KIT
9. NUMERICAL INDEX
10. USER SUPPORT INFORMATION
