Yale C813 GDP070-090LJ, GDP100-120MJ Parts Manual 524139553

Yale C813 GDP070-090LJ, GDP100-120MJ Parts Manual 524139553 - Image 2

Yale C813 GDP070-090LJ, GDP100-120MJ Parts Manual 524139553 - Image 3

Yale C813 GDP070-090LJ, GDP100-120MJ Parts Manual 524139553 - Image 4

Yale C813 GDP070-090LJ, GDP100-120MJ Parts Manual 524139553 - Image 5

yale c813 gdp070 090lj gdp100 120mj parts manual 524139553 2

yale c813 gdp070 090lj gdp100 120mj parts manual 524139553 3

Yale C813 GDP070-090LJ, GDP100-120MJ Parts Manual 524139553

$50.00

Series: C813
Type Of Manual: Parts Manual
Manual ID: 524139553
Format: PDF

Category: Yale Parts Manual PDF

Model List:
- GDP070LJ, GDP080LJ, GDP090LJ, GDP100MJ, GDP110MJ, GDP120MJ

1. GENERAL TRUCK
1.1. HOOD AND COVERS
1.2. FLOOR PLATES AND COVERS
1.3. SOUND REDUCTION
1.4. UNDERCARRIAGE PAN
1.5. COUNTERWEIGHT
1.6. OVERHEAD GUARD
1.7. OPERATOR MODULE
1.8. NON-SUSPENSION SEAT
1.9. REAR SCREEN
1.10. FULL SUSPENSION SEAT SHEET 1 OF 2
1.11. FULL SUSPENSION SEAT SHEET 2 OF 2
1.12. REAR SCREEN
2. DIESEL ENGINE (1004.42)
2.1. FAN DRIVE ASSEMBLY – GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.2. DRIVE SHAFT DIESEL
2.3. BAFFLE AND ATTACHING PARTS GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ,GDP55MJ
2.4. ENGINE MOUNT GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.5. ENGINE AND ATTACHING PARTS GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.6. ALTERNATOR MOUNT – GDP 35 LJ, GDP 40 LJ, GDP 45 MJ, GDP 50 MJ, GDP 55 MJ ( 7/2001)
2.7. ALTERNATOR MOUNT – GDP 35 LJ, GDP 40 LJ, GDP 45 MJ, GDP 50 MJ, GDP 55 MJ (7/2001 )
2.8. CYLINDER BLOCK GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ ( 7/2001)
2.9. CYLINDER BLOCK GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ (7/2001 )
2.10. CRANKSHAFT AND PISTON GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ ( 7/2001)
2.11. CRANKSHAFT AND PISTON GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ (7/2001 )
2.12. OIL SUMP AND PUMP GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.13. OIL FILTER GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.14. MANIFOLDS GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ ( 7/2001)
2.15. MANIFOLDS GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ (7/2001 )
2.16. CYLINDER HEAD GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.17. COOLANT PUMP GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ ( 9/2001)
2.18. COOLANT PUMP GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ (9/2001 )
2.19. TIMING GEAR GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.20. VALVE COVER GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.21. COOLING GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.22. EXHAUST GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
2.23. ROTARY EXHAUSTER GDP 35 LJ, GDP 40 LJ, GDP 45 MJ, GDP 50 MJ, GDP 55 MJ
3. LPG ENGINE (4.3L)
3.1. EXHAUST MANIFOLD GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ ( S/N C813A02831A)
3.2. EXHAUST MANIFOLD GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ (S/N C813A02832A )
3.3. EXHAUST GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ – WITHOUT LOW EMISSIONS ( S/N C813A02831A)
3.4. EXHAUST GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ – WITHOUT LOW EMISSIONS (S/N C813A02832A )
3.5. EXHAUST THREE-WAY CATALYTIC CONVERTER WITH LOW EMISSIONS – GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ ( S/N C813A02831A)
3.6. EXHAUST THREE-WAY CATALYTIC CONVERTER WITH LOW EMISSIONS – GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ (S/N C813A02832A )
3.7. COOLING GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
3.8. BAFFLE AND ATTACHING PARTS GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
3.9. FAN DRIVE ASSEMBLY – GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
3.10. DRIVE SHAFT LPG
3.11. ENGINE AND ATTACHING PARTS GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
3.12. ENGINE MOUNT POWERSHIFT TRANSMISSION – GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
3.13. CYLINDER BLOCK GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
3.14. CYLINDER HEAD GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
3.15. VALVE COVER AND INLET MANIFOLD GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
3.16. CAMSHAFT AND OIL SUMP GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
3.17. OIL PUMP GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
4. FUEL SYSTEM
4.1. FUEL SYSTEM GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
4.2. LOW PRESSURE SYSTEM GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ ( 7/2001)
4.3. LOW PRESSURE SYSTEM GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ) (7/2001 )
4.4. FUEL FILTER LOW PRESSURE SYSTEM
4.5. FUEL INJECTION GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
4.6. WATER SEPARATOR
4.7. LIFT PUMP DIESEL
4.8. FUEL SYSTEM OPEN LOOP – GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ ( S/N C813A01935Y)
4.9. FUEL SYSTEM OPEN LOOP – GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ (S/N C813A01936Y 12/2003)
4.10. FUEL SYSTEM OPEN LOOP – GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ (12/2003 )
4.11. FUEL SYSTEM CLOSED LOOP – GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ ( 12/2003)
4.12. FUEL SYSTEM CLOSED LOOP – GLP 070 LJ – GLP 120 MJ (12/2003 )
4.13. CARBURETOR LPG – WITH LOW EMISSIONS
4.14. LPG TANK BRACKET FIXED
4.15. LPG TANK BRACKET SWING OUT
4.16. FILTER AND LOCK-OFF VALVE GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ ( S/N C813A01935Y)
4.17. LPG CONVERTER OPEN LOOP ( S/N C813A01935Y)
4.18. LPG CONVERTER OPEN LOOP (S/N C813A01936Y 10/2003)
4.19. GOVERNOR GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
4.20. AIR SYSTEM
4.21. AIR FILTER
4.22. THROTTLE LINKAGE GLP035LJ, GLP040LJ, GLP045MJ, GLP050MJ, GLP055MJ
4.23. THROTTLE LINKAGE WITH THROTTLE UP – GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
4.24. THROTTLE LINKAGE WITHOUT THROTTLE UP – DIESEL
4.25. THROTTLE UP ASSEMBLY
4.26. DIRECTIONAL CONTROL PEDAL LINKAGE
4.27. DIRECTIONAL CONTROL PEDAL
5. ELECTRICAL SYSTEM
5.1. ELECTRICAL SYSTEM COWL – POWERSHIFT TRANSMISSION
5.2. ELECTRICAL SYSTEM COWL – HYDROSTATIC TRANSMISSION
5.3. INSTRUMENT PANEL
5.4. ELECTRICAL SYSTEM THROTTLE UP – HYDROSTATIC TRANSMISSION
5.5. ELECTRICAL SYSTEM GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ ( S/N C813A01696)
5.6. ELECTRICAL SYSTEM GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ (S/N C813A01697 )
5.7. ELECTRICAL SYSTEM GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
5.8. ELECTRICAL SYSTEM ALTERNATOR AND BATTERY – GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
5.9. STARTER MOTOR GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
5.10. ALTERNATOR
5.11. DISTRIBUTOR GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
5.12. SHIFT LEVER
5.13. WIRE HARNESS HYDROSTATIC MODULE
5.14. WIRE HARNESS DIESEL ENGINE ( S/N C813A02228Y)
5.15. WIRE HARNESS DIESEL ENGINE (S/N C813A02229Y )
5.16. WIRE HARNESS LPG ( S/N C813A02004Y)
5.17. WIRE HARNESS MODULE POWERSHIFT ( S/N C813A02213Y)
5.18. WIRE HARNESS PS TRANSMISSION CONTROL
5.19. WIRE HARNESS THROTTLE UP ( S/N C813A02486Z)
5.20. WIRE HARNESS THROTTLE UP (S/N C813A02487Z )
5.21. WIRE HARNESS LPG SWITCH
5.22. WIRE HARNESS CLOSED LOOP ( S/N C813A02832A)
5.23. WIRE HARNESS ESOS ADAPTER ( 9/2001)
5.24. WIRE HARNESS DIAGNOSTIC
5.25. WIRE HARNESS GASOLINE ENGINE, GM V6 – SHEET 1 OF 2 (S/N C813A02004Y S/N C813A02228Y)
5.26. WIRE HARNESS GASOLINE ENGINE, GM V6 – SHEET 2 OF 2 (S/N C813A02004Y S/N C813A02228Y)
5.27. WIRE HARNESS ENGINE, LPG, GM V6, 4.3L – SHEET 1 OF 2 (S/N C813A02004Y S/N C813A02228Y)
5.28. WIRE HARNESS ENGINE, LPG, GM V6, 4.3L – SHEET 2 OF 2 (S/N C813A02004Y S/N C813A02228Y)
5.29. WIRE HARNESS ENGINE, LPG, GM V6, 4.3L – SHEET 1 OF 2 (S/N C813A02229Y )
5.30. WIRE HARNESS ENGINE, LPG, GM V6, 4.3L – SHEET 2 OF 2 (S/N C813A02229Y )
5.31. WIRE HARNESS MODULE POWERSHIFT – SHEET 1 0F 2 (S/N C813A02264Y )
5.32. WIRE HARNESS MODULE POWERSHIFT – SHEET 2 OF 2 (S/N C813A02264Y )
5.33. WIRE HARNESS MODULE, TYPE S POWERSHIFT – SHEET 1 OF 2 (S/N C813A02014Y S/N C813A02264Y)
5.34. WIRE HARNESS MODULE, TYPE S POWERSHIFT – SHEET 2 OF 2 (S/N C813A02014Y S/N C813A02264Y)
5.35. WIRE HARNESS BRAKE PRESSURE SWITCH
6. STEERING SYSTEM
6.1. STEERING SYSTEM
6.2. STEERING COLUMN
6.3. STEERING AXLE
6.4. STEERING PUMP
6.5. STEERING CYLINDER
7. BRAKE SYSTEM
7.1. BRAKE SYSTEM POWERSHIFT TRANSMISSION
7.2. BRAKE SYSTEM HYDROSTATIC TRANSMISSION
7.3. BRAKE ASSEMBLY GLP/GDP35LJ, GLP/GDP40LJ
7.4. BRAKE ASSEMBLY GLP/GDP45MJ, GLP/GDP50MJ, GLP/GDP55MJ ( S/N C813A02995A)
7.5. BRAKE ASSEMBLY GLP/GDP45MJ, GLP/GDP50MJ, GLP/GDP55MJ (S/N C813A02996A )
7.6. MASTER CYLINDER AND BRAKE BOOSTER
7.7. PARK BRAKE
7.8. BRAKE RELAY ASSEMBLY
8. TRANSMISSION
8.1. TORQUE CONVERTER
8.2. POWERTRAIN MOUNT
8.3. TRANSMISSION LINES
8.4. TRANSMISSION TWO SPEED POWERSHIFT – SHEET 1 OF 2
8.5. TRANSMISSION TWO SPEED POWERSHIFT – SHEET 2 OF 2
8.6. INPUT AND DIRECTIONAL CLUTCH
8.7. CONTROL VALVE TRANSMISSION
8.8. MANIFOLD VALVE
8.9. VALVE HIGH AND LOW
8.10. DIFFERENTIAL ASSEMBLY
8.11. DRIVE AXLE
8.12. DRIVE AXLE HYDROSTATIC TRANSMISSION
8.13. VALVE HYDROSTATIC TRANSMISSION
8.14. HYDRAULIC PUMP AND MOUNT HYDROSTATIC TRANSMISSION
8.15. TRANSMISSION LINES HYDROSTATIC TRANSMISSION
8.16. FILTER ASSEMBLY HYDROSTATIC TRANSMISSION
8.17. TRANSMISSION PUMP HYDROSTATIC TRANSMISSION
9. HYDRAULIC SYSTEM
9.1. HYDRAULIC SYSTEM WITH POWERSHIFT TRANSMISSION
9.2. HYDRAULIC SYSTEM WITH HYDROSTATIC TRANSMISSION
9.3. HYDRAULIC CONTROL LINES THREE FUNCTION
9.4. HYDRAULIC CONTROL LINES FOUR FUNCTION
9.5. HYDRAULIC CONTROL VALVE ATTACHING PARTS THREE FUNCTION
9.6. HYDRAULIC CONTROL VALVE ATTACHING PARTS FOUR FUNCTION
9.7. HYDRAULIC CONTROL VALVE ATTACHING PARTS WITH HYDROSTATIC TRANSMISSION
9.8. HYDRAULIC CONTROL VALVE THREE AND FOUR FUNCTION ( S/N C813A02191Y)
9.9. HYDRAULIC CONTROL VALVE SHEET 1 OF 2 – THREE AND FOUR FUNCTION (S/N C813A02192Y )
9.10. HYDRAULIC CONTROL VALVE SHEET 2 OF 2 – THREE AND FOUR FUNCTION (S/N C813A02192Y )
9.11. HYDRAULIC FILTER HOUSING
9.12. MAST INSTALLATION
9.13. MAST INSTALLATION
9.14. TILT CYLINDER
9.15. HYDRAULIC PUMP
10. Mast-Two Stage Limited Free-Lift
10.1. OUTER MAST TWO STAGE LIMITED FREE-LIFT
10.2. INNER MAST TWO STAGE LIMITED FREE-LIFT

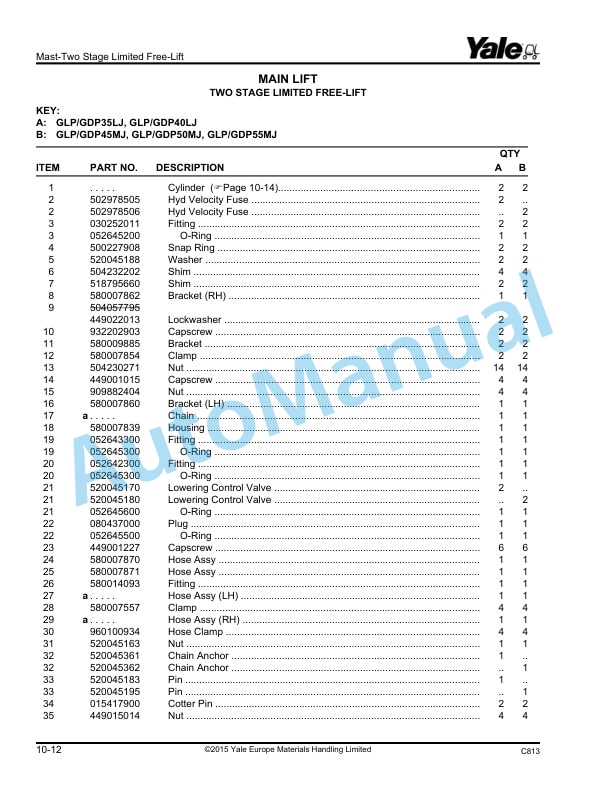

10.3. MAIN LIFT TWO STAGE LIMITED FREE-LIFT
10.4. MAIN CYLINDER TWO STAGE LIMITED FREE-LIFT
10.5. CARRIAGE TWO STAGE LIMITED FREE-LIFT
10.6. LOAD BACKREST EXTENSION TWO STAGE LIMITED FREE-LIFT

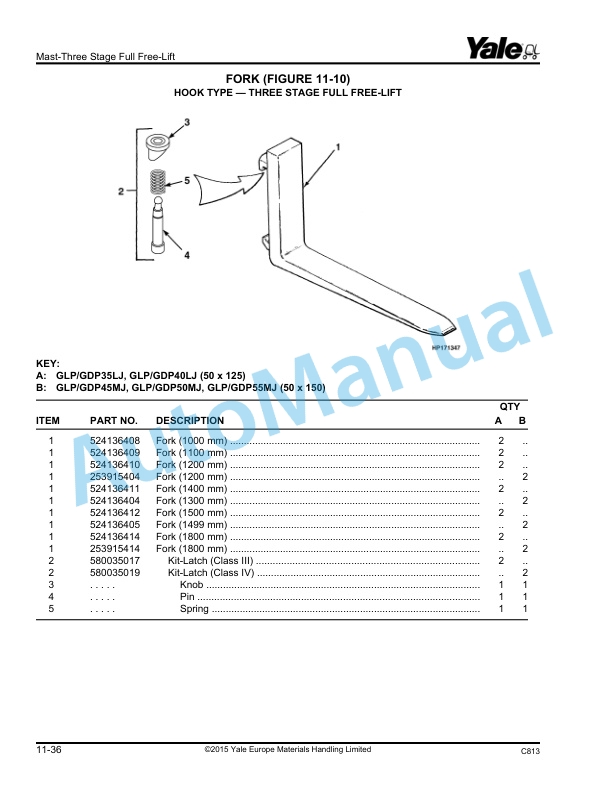

10.7. FORK HOOK TYPE – TWO STAGE LIMITED FREE-LIFT
10.8. HEADER HOSE TWO STAGE LIMITED FREE-LIFT ( S/N A749A02522Z) ( S/N A750A02672Z)
10.9. HEADER HOSE TWO STAGE LIMITED FREE-LIFT (S/N A749A02523Z ) (S/N A750A02673Z )
11. Mast-Three Stage Full Free-Lift
11.1. OUTER MAST THREE STAGE FULL FREE-LIFT
11.2. INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT
11.3. INNER MAST THREE STAGE FULL FREE-LIFT
11.4. MAIN LIFT THREE STAGE FULL FREE-LIFT
11.5. FREE-LIFT THREE STAGE FULL FREE-LIFT
11.6. MAIN CYLINDER THREE STAGE FULL FREE-LIFT
11.7. FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT
11.8. CARRIAGE THREE STAGE FULL FREE-LIFT
11.9. LOAD BACKREST EXTENSION THREE STAGE FULL FREE-LIFT
11.10. FORK HOOK TYPE – THREE STAGE FULL FREE-LIFT
11.11. HEADER HOSE THREE STAGE FULL FREE-LIFT
12. Mast-Two Stage Full Free-Lift
12.1. OUTER MAST AND MAIN LIFT TWO STAGE FULL FREE-LIFT
12.2. INNER AND FREE-LIFT MAST TWO STAGE FULL FREE-LIFT
12.3. LIFT CYLINDER TWO STAGE FULL FREE-LIFT
12.4. FREE-LIFT CYLINDER TWO STAGE FULL FREE-LIFT
12.5. CARRIAGE TWO STAGE FULL FREE-LIFT
12.6. FORK HOOK TYPE – TWO STAGE FULL FREE-LIFT
12.7. HEADER HOSE TWO STAGE FULL FREE-LIFT

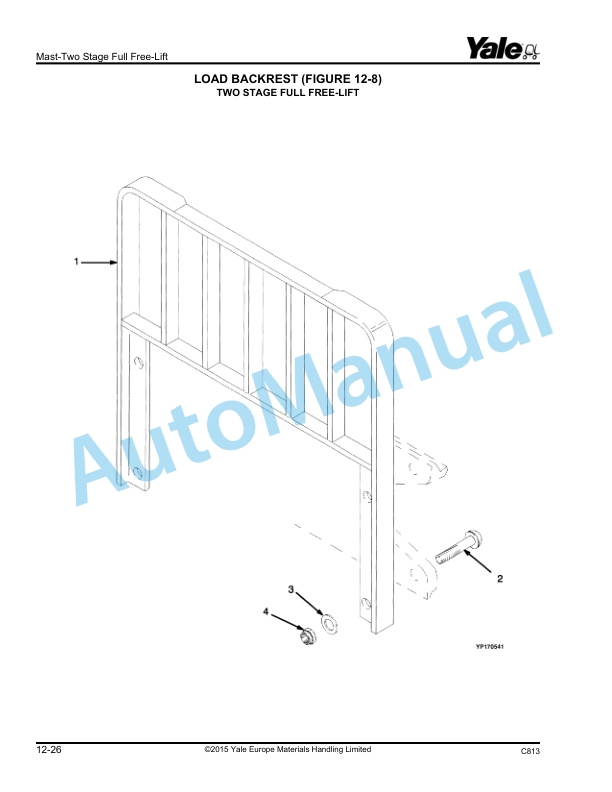

12.8. LOAD BACKREST TWO STAGE FULL FREE-LIFT
13. OPTIONS
13.1. TIRE AND WHEEL SINGLE DRIVE WHEEL – GLP/GDP35LJ, GLP/GDP40LJ
13.2. TIRE AND WHEEL SINGLE DRIVE WHEEL – GLP/GDP45MJ, GLP/GDP50MJ, GLP/GDP55MJ
13.3. TIRE AND WHEEL DUAL DRIVE WHEEL
13.4. TIRE AND WHEEL DRIVE WHEEL – RADIAL
13.5. TIRE AND WHEEL STEERING
13.6. TIRE AND WHEEL STEERING RADIAL – 7.00 X 12 PNEUMATIC TIRE
13.7. FENDER EXTENSION – GLP/GDP35LJ, GLP/GDP40LJ
13.8. FENDER EXTENSION – GLP/GDP45MJ, GLP/GDP50MJ, GLP/GDP55 MJ
13.9. AUXILIARY TUBE EXTENSION KIT TWO STAGE LIMITED FREE-LIFT
13.10. AUXILIARY TUBE EXTENSION KIT THREE STAGE FULL FREE-LIFT
13.11. HEADLIGHTS, REAR LIGHTS, AND SIDE LAMPS WITHOUT CAB ( S/N C813A02993A)
13.12. HEADLIGHTS, REAR LIGHTS, AND SIDE LIGHTS WITHOUT CAB (S/N C813E02994A )
13.13. REAR DRIVE LIGHTS SINGLE – WITHOUT CAB
13.14. SPOT LIGHT WITHOUT CAB
13.15. ROTATING BEACON WITHOUT CAB
13.16. MIRROR DUAL WITHOUT CAB
13.17. SIDE-SHIFT CARRIAGE TWO STAGE LIMITED FREE-LIFT – GLP/GDP35LJ, GLP/GDP40LJ
13.18. SIDE-SHIFT CARRIAGE TWO STAGE LIMITED FREE-LIFT – GLP/GDP45MJ, GLP/GDP50MJ, GLP/GDP55MJ
13.19. SIDE-SHIFT CARRIAGE TWO AND THREE STAGE FULL FREE-LIFT – GLP/GDP35LJ, GLP/GDP40LJ
13.20. SIDE-SHIFT CARRIAGE TWO AND THREE STAGE FULL FREE-LIFT – GLP/GDP45MJ, GLP/GDP50MJ, GLP/GDP55MJ
13.21. SIDE-SHIFT CARRIAGE FRAME 1219 MM TWO STAGE LIMITED FREE-LIFT – GLP/GDP35LJ, GLP/GDP40LJ
13.22. SIDE-SHIFT CARRIAGE FRAME 1524 MM TWO STAGE LIMITED FREE-LIFT – GLP/GDP35LJ, GLP/GDP40LJ
13.23. SIDE-SHIFT CARRIAGE FRAME TWO STAGE LIMITED FREE-LIFT – GLP/GDP45MJ, GLP/GDP50MJ, GLP/GDP55MJ
13.24. SIDE-SHIFT CARRIAGE FRAME 1219 MM, TWO AND THREE STAGE FULL FREE-LIFT – GLP/GDP35LJ, GLP/GDP40LJ
13.25. SIDE-SHIFT CARRIAGE FRAME 1524 MM, TWO AND THREE STAGE FULL FREE-LIFT – GLP/GDP35LJ, GLP/GDP40LJ
13.26. SIDE-SHIFT CARRIAGE FRAME TWO AND THREE STAGE FULL FREE-LIFT – GLP/GDP45MJ, GLP/GDP50MJ, GLP/GDP55MJ
13.27. CAB FRAME
13.28. CAB ATTACHING PARTS
13.29. CAB ELECTRICAL
13.30. CAB WINDOWS AND WIPER MOTOR
13.31. CAB DOOR ASSEMBLY
13.32. HEATER INSTALLATION GLP35LJ, GLP40LJ, GLP45MJ, GLP50MJ, GLP55MJ
13.33. HEATER INSTALLATION GDP35LJ, GDP40LJ, GDP45MJ, GDP50MJ, GDP55MJ
13.34. AUDIBLE ALARM
13.35. WIRE HARNESS REVERSE ALARM
13.36. WIRE HARNESS AUXILIARY LIGHTS – WORKLIGHTS
14. NUMERICAL INDEX
15. USER SUPPORT INFORMATION

Rate this product
