Yale C861 NR045EA, NDR035EA Parts Manual 524233347

$50.00

Series: C861
Type Of Manual: Parts Manual
Manual ID: 524233347
Format: PDF

Category: Yale Parts Manual PDF

Model List:
- NR045EA, NDR035EA

1. GENERAL TRUCK
1.1. OPERATOR AND OVERHEAD GUARD
1.2. COVERS AND PADS FORWARD STANCE – SHEET 1 OF 2
1.3. COVERS AND PADS FORWARD STANCE – SHEET 2 OF 2
1.4. COVERS AND PADS SIDE STANCE
1.5. ADJUSTABLE BACKREST SHEET 1 OF 2
1.6. ADJUSTABLE BACKREST SHEET 2 OF 2
1.7. FIXED BACKREST SHEET 1 OF 2
1.8. FIXED BACKREST SHEET 2 OF 2
1.9. DECAL AND PLATE LOCATION SHEET 1 OF 2
1.10. DECAL AND PLATE LOCATION SHEET 2 OF 2
1.11. BATTERY RETAINERS AND ROLLERS
1.12. FLOOR PLATES STANDARD
1.13. FLOOR PLATES FREEZER OPTION
1.14. FLOOR PLATES FREEZER OPTION – COMFORT
1.15. LOAD BACKREST
1.16. HEATER CONTROLS
1.17. HEATER CONTROLS
1.18. HEATER CONTROLS
1.19. HEATER CONTROLS
2. ELECTRICAL SYSTEM
2.1. GENERAL ELECTRICAL SYSTEM
2.2. AC MOTOR CONTROLLER
2.3. CONTROLLER FAN, HORN AND STATIC STRAP
2.4. CONTACTOR
2.5. CONTACTOR EE
2.6. POWER CABLES
2.7. BATTERY CONNECTOR
2.8. CONTROL HANDLE ASSEMBLY SIDE STANCE
2.9. CONTROL HANDLE ASSEMBLY FORWARD STANCE WITH REAR GRIP
2.10. CONTROL HANDLE ASSEMBLY FORWARD STANCE WITH PALM REST
2.11. AFT TRAVEL CONTROL HANDLE ASSEMBLY
2.12. DASH DISPLAY
2.13. FUSE BOARD
2.14. DIODE FOR IFB PROTECTION 36 VOLT WITH 12 AND 24 VOLT REGULATORS
2.15. IMPACT SENSOR
2.16. TILT SENSOR
2.17. MAIN WIRE HARNESS
2.18. WIRE HARNESS HEADLIGHTS
2.19. WIRE HARNESS FLOORPLATE HEATER
2.20. STEER CONTROLLER
2.21. WIRE HARNESS HEATER FREEZER AND ARCTIC ( S/N C861N03826K)
2.22. WIRE HARNESS HEATER FREEZER AND ARCTIC (S/N C861N03827K )
3. DRIVE UNIT
3.1. MASTER DRIVE UNIT
3.2. MASTER DRIVE UNIT COMPARTMENT DOOR
3.3. MASTER DRIVE UNIT ASSEMBLY
3.4. TRACTION MOTOR
4. STEERING SYSTEM
4.1. STEERING PROXIMITY SWITCH
4.2. STEER WHEEL ASSEMBLY MOUNTING ADJUSTABLE AND FIXED
4.3. FIXED STEER WHEEL ASSEMBLY
4.4. FIXED STEER WHEEL ASSEMBLY
4.5. ADJUSTABLE STEER WHEEL ASSEMBLY
4.6. ADJUSTABLE STEER WHEEL ASSEMBLY
5. CASTER, LOAD WHEEL AND BRAKE SYSTEM
5.1. BRAKE ASSEMBLY
5.2. LOAD WHEEL ASSEMBLY
5.3. STEERED WHEEL SUSPENSION
5.4. STANDARD CASTER WHEEL SUSPENSION
5.5. CASTER ASSEMBLY STEERED
5.6. CASTER ASSEMBLY NON-STEERED
5.7. STEER CONTROLLER
5.8. STEER MOTOR
5.9. STEERING CONTROLS MOTOR AND CONTROLLER
6. HYDRAULIC SYSTEM
6.1. HYDRAULIC ARRANGEMENT
6.2. PUMP MOTOR MOUNTING
6.3. LIFT PUMP AND MOTOR ASSEMBLY
6.4. LIFT PUMP
6.5. LIFT MOTOR
6.6. LIFT MOTOR EE
6.7. AUXILIARY PUMP AND MOTOR ASSEMBLY
6.8. HYDRAULIC HOSES SINGLE REACH
6.9. ATTACHMENT SELECTOR VALVE SINGLE REACH
6.10. ATTACHMENT SELECTOR VALVE DOUBLE REACH
6.11. ATTACHMENT VALVE WITHOUT SIDESHIFT
6.12. ATTACHMENT VALVE WITH SIDESHIFT
6.13. HYDRAULIC TANK ASSEMBLY
6.14. HYDRAULIC TANK ASSEMBLY
7. MAST-THREE STAGE
7.1. MAST CONNECTION 5.5 INCH
7.2. MAST CONNECTION 6.9 INCH
7.3. OUTER, INTERMEDIATE, AND INNER MAST 5.5 INCH
7.4. MAIN LIFT 5.5 INCH
7.5. MAIN LIFT CYLINDER ASSEMBLY 5.5 INCH
7.6. FREE-LIFT 5.5 INCH
7.7. FREE-LIFT CYLINDER ASSEMBLY 5.5 INCH ( 9/2014)
7.8. FREE-LIFT CYLINDER ASSEMBLY 5.5 INCH (9/2014 )
7.9. SHEAVES 5.5 INCH
7.10. OUTER, INTERMEDIATE, AND INNER MAST 6.9 INCH
7.11. MAIN LIFT 6.9 INCH
7.12. MAIN LIFT CYLINDER ASSEMBLY 6.9 INCH – 8606700 Series
7.13. MAIN LIFT CYLINDER 6.9 IN. MAST – 8607700 Series
7.14. FREE-LIFT 6.9 INCH

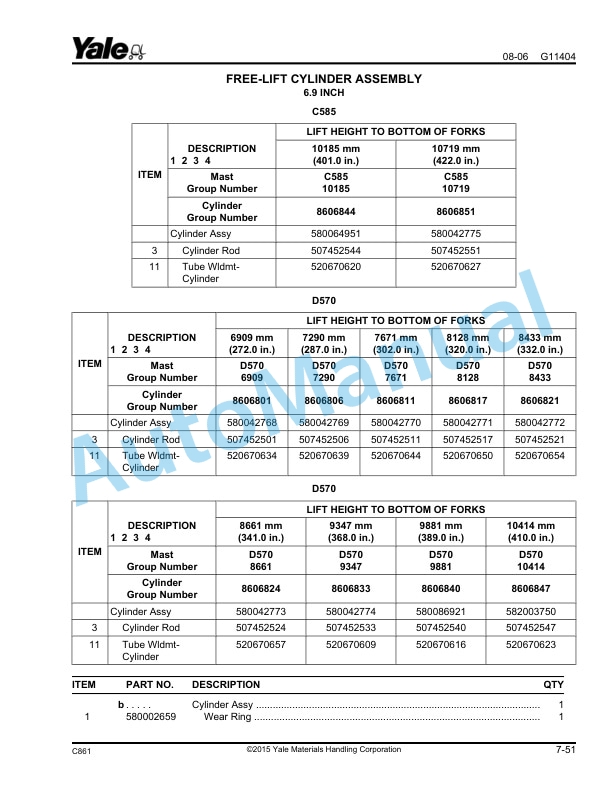

7.15. FREE-LIFT CYLINDER ASSEMBLY 6.9 INCH
7.16. SHEAVES 6.9 INCH
7.17. HEIGHT SENSOR SHEET 1 OF 2 ( 1/2008)
7.18. HEIGHT SENSOR SHEET 1 OF 2 (1/2008 )
7.19. HEIGHT SENSOR SHEET 2 OF 2
8. ATTACHMENTS AND HEADER HOSE GROUP
8.1. ATTACHMENTS SINGLE REACH
8.2. SCISSOR ASSEMBLY SINGLE REACH
8.3. SCISSORS SINGLE REACH
8.4. HOSE GROUP SINGLE REACH
8.5. ATTACHMENTS DOUBLE REACH
8.6. SCISSOR ASSEMBLY DOUBLE REACH
8.7. SCISSORS DOUBLE REACH

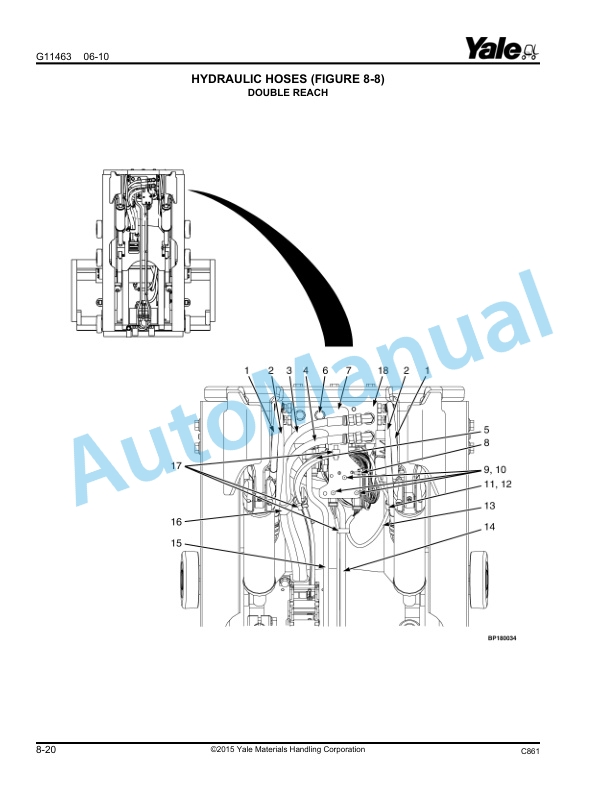

8.8. HYDRAULIC HOSES DOUBLE REACH
8.9. ATTACHMENT VALVE AND HOSES
8.10. ATTACHMENT VALVE AND HOSES
8.11. FRONT FRAME
8.12. REAR FRAME
8.13. REACH CYLINDER
8.14. MAST CONNECTION 5.5 HEAVY
8.15. MAST CONNECTION 6.9

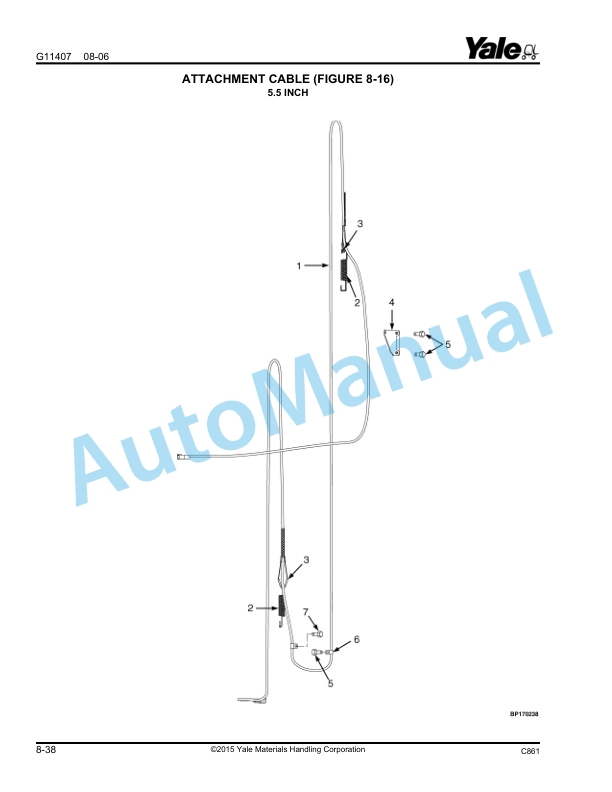

8.16. ATTACHMENT CABLE 5.5 INCH
8.17. ATTACHMENT HOSES 5.5 INCH
8.18. DRIP SHIELD
8.19. DRIP SHIELD ALTERNATE PART
8.20. ATTACHMENT HOSES AND CABLE 6.9 INCH MAST
9. OPTIONS
9.1. BATTERY STAND AND PULLER
9.2. HEADLIGHTS
9.3. OPTIONS HARNESS
9.4. TERMINAL MOUNTING
9.5. HANDHELD HOLSTER AND 12V RECEPTACLE
9.6. AUDIBLE ALARM
9.7. OPERATOR COMPARTMENT LIGHT
9.8. FORK CAMERA OPTION MODULE ASSEMBLY
9.9. FORK CAMERA ASSEMBLY SHEET 1 OF 2
9.10. FORK CAMERA ASSEMBLY SHEET 2 OF 2
9.11. FAN ASSEMBLY
9.12. TERMINAL CONNECTION ASSEMBLY
9.13. STROBE/WORKLIGHT COMBINATION
9.14. CASTER WHEEL BUMPER FOR STEERED CASTER
9.15. OPERATOR COMPARTMENT LIGHT
10. FIELD CONVERSION KITS
10.1. ADD-ON OPTION KITS
10.2. AFT TRAVEL CONTROL HANDLE KIT
10.3. BOLT-ON WHEEL HANGERS
10.4. CAMERA/MONITOR SYSTEM KITS
10.5. EE MOTOR BAND KIT
10.6. FUEL CELL KIT
10.7. MAST DRAIN KIT
10.8. PRESSURE TRANSDUCER PIGTAIL KIT
10.9. SPLASH GUARD KIT
10.10. STEERING TILLER
10.11. TELEMETRY KITS
11. NUMERICAL INDEX
12. USER SUPPORT INFORMATION
