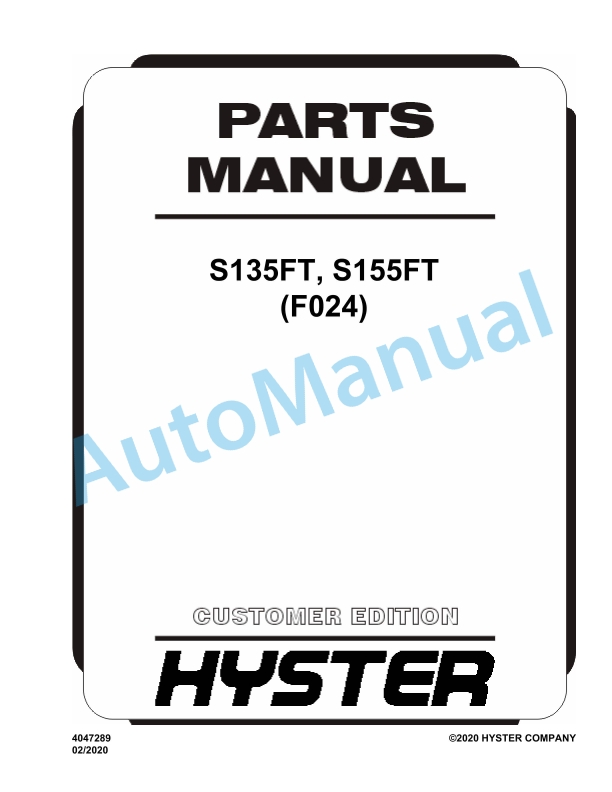

Hyster S135FT, S155FT (F024) Parts Manual

Hyster S135FT, S155FT (F024) Parts Manual - Image 2

Hyster S135FT, S155FT (F024) Parts Manual - Image 3

Hyster S135FT, S155FT (F024) Parts Manual - Image 4

Hyster S135FT, S155FT (F024) Parts Manual - Image 5

hyster s135ft s155ft f024 parts manual 2

hyster s135ft s155ft f024 parts manual 3

Hyster S135FT, S155FT (F024) Parts Manual

$30.00

Type Of Manual: Parts Manual
Number of Pages: 640
Size: 14.5MB
Format: PDF

Category: Hyster Parts Manual PDF

Model List:
- S135FT, S155FT (F024)

1. COWL MOUNT
2. OVERHEAD GUARD
3. COUNTERWEIGHT
4. FLOORPLATES AND COVERS
5. HOOD ASSEMBLY
6. STATIC STRAP INSTALLATION
7. FORKS STANDARD TAPER – CLASS IV
8. LOAD BACKREST EXTENSION
9. LABELS EXTERIOR
10. LABELS INTERIOR
11. LABELS CONTROL LEVERS
12. LABELS MINI LEVER MODULES – SINGLE FUNCTION
13. LABELS MINI-LEVER MODULES – DUAL FUNCTION
14. NON SUSPENSION SEAT WITHOUT ELECTRONIC CONTROLS
15. SEATS SEMI SUSPENSION SEAT – MANUAL AND ELECTRO-HYDRAULIC
16. FULL SUSPENSION SEAT MANUAL AND ELECTRO-HYDRAULIC SWIVEL AND NON SWIVEL – SHEET 1 OF 4
17. FULL SUSPENSION SEAT RECLINER AND DAMPER KITS – SHEET 2 OF 4
18. FULL SUSPENSION SEAT SERVICE KITS FOR NON SWIVEL AND SWIVEL – SHEET 3 OF 4
19. SEAT ATTACHING PARTS NOT INCLUDED WITH SEAT – SHEET 4 OF 4
20. ARMREST ASSEMBLY MINI-LEVER MODULES – SEMI-SUSPENSION SEAT WITH HIP RESTRAINTS
21. ARMREST ASSEMBLY MINI-LEVER MODULES
22. ENGINE GASOLINE/LPG
22.1. COOLING GM 4.3L GASOLINE AND LPG
22.2. EXHAUST SYSTEM GM 4.3L LPG – OVERHEAD EXHAUST OPTION
22.3. EXHAUST SYSTEM GM 4.3L LPG – COUNTERWEIGHT EXHAUST OPTION
22.4. EXHAUST WRAPS GM 4.3L GASOLINE AND LPG
22.5. ELECTRICAL MOUNTING PLATE AND LIFTING EYE GM 4.3L LPG – PSI
22.6. ELECTRICAL MOUNTING PLATE AND LIFTING EYE GM 4.3L GASOLINE – PSI OPTION
22.7. ENGINE MOUNTING GM 4.3L GASOLINE AND LPG
22.8. FAN MOUNT ASSEMBLY GM 4.3L LPG AND GASOLINE – PSI
22.9. FAN ASSEMBLY GM 4.3L GASOLINE AND LPG – PSI
22.10. FLYWHEEL AND HOUSING GM 4.3L GASOLINE AND LPG
22.11. PULLEY AND TENSIONER GM 4.3L GASOLINE AND LPG – PSI
22.12. CRANKSHAFT PULLEY GM 4.3L GASOLINE AND LPG – PSI
22.13. CYLINDER HEAD GM 4.3L GASOLINE AND LPG
22.14. CYLINDER BLOCK GM 4.3L GASOLINE AND LPG – PSI
22.15. CAMSHAFT AND OIL PAN GM 4.3L GASOLINE AND LPG – PSI
22.16. VALVE COVER AND INLET MANIFOLD GM 4.3L GASOLINE AND LPG – PSI
22.17. INTAKE AIR FUEL MODULE GM 4.3L GASOLINE
22.18. EXHAUST MANIFOLDS GM 4.3L LPG AND GASOLINE – PSI
22.19. THERMOSTAT AND WATER OUTLET HOUSING GM 4.3L LPG – PSI OPTION
22.20. THERMOSTAT AND WATER OUTLET HOUSING GM 4.3L GASOLINE – PSI OPTION
22.21. DISTRIBUTOR AND COIL GM 4.3L GASOLINE AND LPG – PSI
22.22. OIL PUMP GM 4.3L GASOLINE AND LPG
22.23. WATER BYPASS GM 4.3L GASOLINE – PSI
23. ENGINE DIESEL
23.1. COOLING KUBOTA DIESEL
23.2. RADIATOR ASSEMBLY KUBOTA DIESEL
23.3. EXHAUST SYSTEM KUBOTA DIESEL – OVERHEAD EXHAUST OPTION
23.4. EXHAUST SYSTEM KUBOTA DIESEL – COUNTERWEIGHT EXHAUST OPTION
23.5. ENGINE MOUNTING AND TORQUE CONVERTER
23.6. FLYWHEEL AND HOUSING KUBOTA DIESEL
23.7. FAN PULLY KUBOTA DIESEL
23.8. CYLINDER BLOCK KUBOTA DIESEL
23.9. CYLINDER HEAD KUBOTA DIESEL
23.10. CYLINDER HEAD COVERS KUBOTA DIESEL
23.11. INLET AND EXHAUST VALVES KUBOTA DIESEL
23.12. ROCKER ARM SHAFT KUBOTA DIESEL
23.13. GEAR CASE KUBOTA DIESEL
23.14. PISTON AND CRANKSHAFT KUBOTA DIESEL
23.15. CAMSHAFT AND IDLE GEAR SHAFT KUBOTA DIESEL
23.16. COVER BEARING CASE KUBOTA DIESEL
23.17. OIL PAN KUBOTA DIESEL
23.18. DIPSTICK KUBOTA DIESEL
23.19. FUEL INJECTION PUMP KUBOTA DIESEL
23.20. INJECTION PIPE KUBOTA DIESEL
23.21. FUEL RAIL KUBOTA DIESEL
23.22. ALTERNATOR AND PULLEY KUBOTA DIESEL
23.23. STARTER KUBOTA DIESEL
23.24. SENSORS KUBOTA DIESEL
23.25. INJECTOR HARNESS KUBOTA DIESEL
23.26. WIRE HARNESS BRACKET KUBOTA DIESEL
23.27. WATER PUMP KUBOTA DIESEL
23.28. WATER PUMP FLANGE AND THERMOSTAT KUBOTA DIESEL
23.29. INTAKE MANIFOLD KUBOTA DIESEL
23.30. EXHAUST MANIFOLD KUBOTA DIESEL
23.31. EGR VALVE FLANGE KUBOTA DIESEL
23.32. EGR VALVE AND COOLER KUBOTA DIESEL
23.33. TURBOCHARGER KUBOTA DIESEL
23.34. TURBO CHARGER OIL PIPE KUBOTA DIESEL
23.35. OIL COOLER KUBOTA DIESEL
23.36. OIL SEPARATOR KUBOTA DIESEL
23.37. BREATHER AND SEPARATOR PIPES KUBOTA DIESEL
24. FUEL SYSTEM
24.1. FUEL SYSTEM GM 4.3L GASOLINE – PSI OPTION
24.2. FUEL SYSTEM GM 4.3L LPG
24.3. FUEL SYSTEM KUBOTA DIESEL
24.4. FUEL SENDER AND ATTACHING PARTS GM 4.3L GASOLINE – PSI OPTION
24.5. FUEL CAP
24.6. AIR CLEANER GM 4.3L, GASOLINE AND LPG – PSI
24.7. AIR FILTER
24.8. PRE-CLEANER AND MOUNT DIESEL
24.9. AIR INTAKE KUBOTA DIESEL
24.10. THROTTLE BODY GM 4.3L GASOLINE
24.11. THROTTLE BODY GM 4.3L LPG – PSI OPTION
24.12. LPG REGULATOR AND MIXER GM 4.3L – PSI OPTION
24.13. LPG CONVERTER GM 4.3L LPG – PSI OPTION
24.14. LPG LOCK OFF GM 4.3L – PSI OPTION
24.15. LPG TANK BRACKET SWING OUT ( 6/2014)
24.16. LPG TANK BRACKET SWING OUT (6/2014 )
24.17. LPG TANK BRACKET SWING OUT/ DROP DOWN ( 6/2014)
24.18. LPG TANK BRACKET SWING OUT/ DROP DOWN (6/2014 )
24.19. THROTTLE PEDAL AND ATTACHING PARTS MONOTROL PEDAL ( S/N F024V01743K)
24.20. MONOTROL PEDAL ASSEMBLY
24.21. THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS STANDARD PEDAL
24.22. THROTTLE PEDAL ASSEMBLY AND ATTACHING PARTS MONOTROL (S/N F024V01744K )
25. ELECTRICAL SYSTEM
25.1. ENGINE ELECTRICAL SYSTEM KUBOTA 3.8L DIESEL
25.2. ENGINE ELECTRICAL SYSTEM GM 4.3L GASOLINE AND LPG – PSI OPTION
25.3. ELECTRICAL SYSTEM RIGHT HAND CHASSIS
25.4. COWL ELECTRICAL ELECTRIC HYDRAULIC
25.5. COWL ELECTRICAL MANUAL HYDRAULIC
25.6. LIGHTS WORK, REAR DRIVE, AND BRAKE/TAIL
25.7. BATTERY CABLES GM 4.3L GASOLINE AND LPG
25.8. BATTERY CABLES KUBOTA DIESEL
25.9. STARTER GM 4.3L LPG
25.10. ALTERNATOR SEALED – GM 4.3L GASOLINE AND LPG
25.11. ALTERNATOR SEALED – KUBOTA 3.8L DIESEL
25.12. ALTERNATOR AND MOUNTING GM 4.3L LPG – PSI OPTION
25.13. SPARK PLUGS AND WIRES GM 4.3L LPG – PSI OPTION
25.14. ENGINE CONTROL MODULE AND SENSORS GM 4.3L LPG – PSI OPTION
25.15. ENGINE CONTROL MODULE AND SENSORS GM 4.3L GASOLINE – PSI OPTION
25.16. CONTROL MODULE DIESEL INTERFACE
25.17. FUSE BOX GM 4.3L LPG – PSI OPTION
25.18. DISTRIBUTOR ASSEMBLY GM 4.3L LPG AND GASOLINE
25.19. INSTRUMENT CLUSTER
25.20. MINI-LEVER CONTROLS WITH ARMREST – THREE FUNCTION
25.21. MINI-LEVER CONTROLS WITH ARMREST – FOUR FUNCTION
25.22. MINI-LEVER CONTROLS WITH ARMREST – FIVE FUNCTION
25.23. LOAD WEIGH ELECTRICAL
25.24. MAST ELECTRICAL
25.25. POWER DISTRIBUTION MODULE
25.26. REMOTE KEY SWITCH
25.27. TRANSMISSION ELECTRICAL SYSTEM TWO SPEED TRANSMISSION
25.28. TRANSMISSION ELECTRICAL SYSTEM THREE SPEED TRANSMISSION
25.29. WIRE HARNESS ADAPTER – LOW FUEL PRESSURE
25.30. WIRE HARNESS ALTERNATOR TO BATTERY DISCONNECT SWITCH – KUBOTA 3.8L DIESEL
25.31. WIRE HARNESS ALTERNATOR TO STARTER – KUBOTA 3.8L DIESEL
25.32. WIRE HARNESS-COWL ELECTRO-HYDRAULICS WITH MONOTROL PEDAL – WITH HYDRAULIC PUMP SOLENOID
25.33. WIRE HARNESS-COWL ELECTRO-HYDRAULICS WITH FORWARD/REVERSE – WITH HYDRAULIC PUMP SOLENOID
25.34. WIRE HARNESS-COWL MANUAL HYDRAULICS WITH MONOTROL PEDAL – WITH HYDRAULIC PUMP SOLENOID
25.35. WIRE HARNESS-COWL MANUAL HYDRAULICS WITH FORWARD/REVERSE – WITH HYDRAULIC PUMP SOLENOID
25.36. WIRE HARNESS ELECTRONIC CONTROL VALVE – THREE FUNCTION
25.37. WIRE HARNESS ELECTRONIC CONTROL VALVE – FOUR FUNCTION
25.38. WIRE HARNESS ELECTRONIC CONTROL VALVE – FIVE FUNCTION
25.39. WIRE HARNESS (ENGINE) GM 4.3L LPG – PSI OPTION
25.40. WIRE HARNESS ENGINE – KUBOTA 3.8L DIESEL
25.41. WIRE HARNESS LEFT HAND CHASSIS – GM 4.3L LPG (WITHOUT PREMIUM LOW FUEL SENSOR)
25.42. WIRE HARNESS LIGHTS – WITH OVERHEAD GUARD

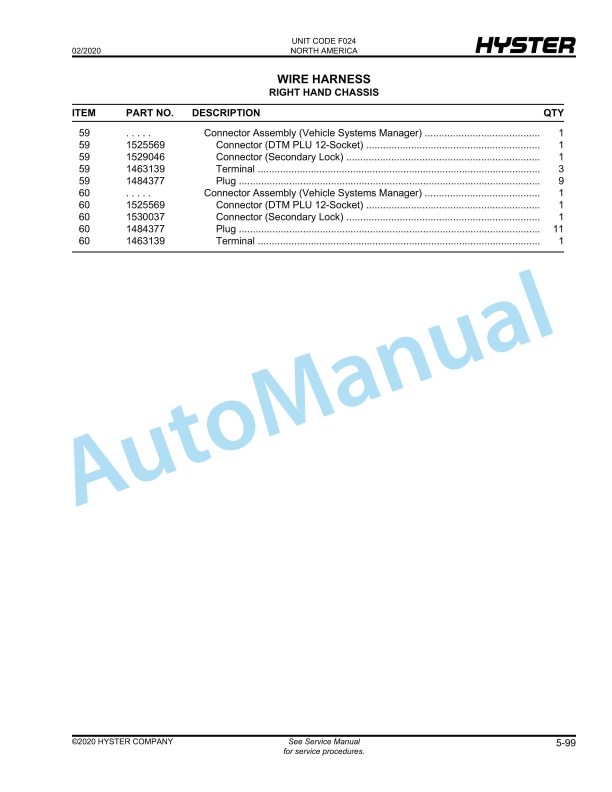

25.43. WIRE HARNESS RIGHT HAND CHASSIS
25.44. WIRE HARNESS SEALED ALTERNATOR – GM 4.3L GASOLINE AND LPG
25.45. WIRE HARNESS TRANSMISSION – TWO SPEED
25.46. WIRE HARNESS TRANSMISSION – THREE SPEED
26. TRANSMISSION
26.1. TRANSMISSION COOLING LINES KUBOTA DIESEL
26.2. TRANSMISSION COOLING LINES GM 4.3L LPG
26.3. TRANSMISSION MOUNT
26.4. TRANSMISSION ASSEMBLY THREE SPEED – SHEET 1 OF 2
26.5. TRANSMISSION ASSEMBLY THREE SPEED – SHEET 2 OF 2
26.6. FORWARD CLUTCH LOW AND SECOND SHAFT THREE SPEED TRANSMISSION – FWD1, RANGE2
26.7. FORWARD CLUTCH HIGH AND OUTPUT SHAFT THREE SPEED TRANSMISSION – FWD2
26.8. REVERSE CLUTCH AND FIRST SHAFT THREE SPEED TRANSMISSION – REV1, RANGE 1
26.9. CONTROL VALVE THREE SPEED TRANSMISSION
26.10. TRANSMISSION ASSEMBLY TWO SPEED – SHEET 1 OF 2
26.11. TRANSMISSION ASSEMBLY TWO SPEED – SHEET 2 OF 2
26.12. REVERSE CLUTCH TWO SPEED TRANSMISSION
26.13. OUTPUT SHAFT TWO SPEED TRANSMISSION
26.14. FORWARD CLUTCH LOW TWO SPEED TRANSMISSION
26.15. CONTROL VALVE TWO SPEED TRANSMISSION
26.16. TORQUE CONVERTER GM 4.3L GASOLINE AND LPG
26.17. CHARGE PUMP
26.18. PUMP DRIVE
27. Drive Axle
27.1. DRIVE AXLE AND ATTACHING PARTS WET BRAKE
27.2. DRIVE AXLE HOUSING AND HUB
27.3. AXLE HOUSING LEFT HAND
27.4. DIFFERENTIAL
27.5. WET BRAKE ASSEMBLY
27.6. DRIVE TIRE AND WHEEL
28. STEERING SYSTEM
28.1. STEERING COLUMN AND ATTACHING PARTS GASOLINE AND LPG
28.2. STEERING COLUMN AND ATTACHING PARTS DIESEL
28.3. STEERING COLUMN ASSEMBLY GASOLINE AND LPG
28.4. STEERING COLUMN ASSEMBLY DIESEL
28.5. STEER CONTROL UNIT
28.6. STEER TIRE AND WHEEL
28.7. STEER AXLE
28.8. STEER CYLINDER
29. BRAKE SYSTEM
29.1. BRAKE LINKAGE SINGLE PEDAL – WET BRAKE
29.2. BRAKE LINKAGE DUAL PEDAL – WET BRAKE
29.3. BRAKE MASTER CYLINDER ASSEMBLY
29.4. PARK BRAKE ASSEMBLY
29.5. BRAKE COOLING SYSTEM SINGLE AND DUAL PEDAL
30. HYDRAULIC SYSTEM
30.1. HYDRAULIC SUPPLY AND RETURN
30.2. HYDRAULIC HOSES STEERING
30.3. HYDRAULIC FILTER
30.4. HOIST HOSE AND ATTACHING PARTS
30.5. HOIST HOSE AND ATTACHING PARTS
30.6. TILT HYDRAULICS
30.7. VENT LINES
30.8. GEAR PUMP ASSEMBLY
30.9. GEAR PUMP
30.10. HAND LEVERS THREE FUNCTION – WITH DETENTED LEVERS
30.11. HAND LEVERS THREE FUNCTION – WITHOUT DETENTED LEVERS
30.12. HAND LEVERS FOUR FUNCTION – WITH DETENTED LEVERS
30.13. HAND LEVERS FOUR FUNCTION – WITHOUT DETENTED LEVERS
30.14. CONTROL VALVE AND STEERING UNIT ASSEMBLY MANUAL CONTROL – THREE FUNCTION
30.15. CONTROL VALVE AND STEERING UNIT ASSEMBLY MANUAL CONTROL – FOUR FUNCTION
30.16. CONTROL VALVE LOCKOUT GROUP MANUAL CONTROL VALVE
30.17. VALVE ASSEMBLY, LIFT AND TILT MANUAL CONTROL VALVE – THREE AND FOUR FUNCTION
30.18. AUXILIARY ONE AND TWO SECTIONS MANUAL CONTROL VALVE – THREE AND FOUR FUNCTION
30.19. OUTLET SECTION MANUAL CONTROL VALVE – THREE AND FOUR FUNCTION
30.20. MID INLET SECTION MANUAL AND ELECTRONIC CONTROL VALVE – THREE, FOUR AND FIVE FUNCTION
30.21. CONTROL VALVE AND STEERING UNIT ASSEMBLY ELECTRO-HYDRAULIC – THREE FUNCTION
30.22. CONTROL VALVE AND STEERING UNIT ASSEMBLY ELECTRO-HYDRAULIC – FOUR AND FIVE FUNCTION
30.23. VALVE ASSEMBLY, LIFT AND LOWER ELECTRONIC CONTROL VALVE – THREE, FOUR AND FIVE FUNCTION
30.24. TILT SECTION ELECTRONIC CONTROL VALVE – THREE, FOUR AND FIVE FUNCTION
30.25. ELECTRO HYDRAULIC POPPET VALVE ELECTRONIC CONTROL VALVE – THREE, FOUR, AND FIVE FUNCTION
30.26. AUXILIARY ONE SECTION ELECTRONIC CONTROLLER – THREE, FOUR AND FIVE FUNCTION
30.27. AUXILIARY TWO SECTION ELECTRONIC CONTROL VALVE – FOUR AND FIVE FUNCTION
30.28. OUTLET SECTION ELECTRONIC CONTROL VALVE – THREE, FOUR, AND FIVE FUNCTION WITH ANTI-STALL SOLENOID
30.29. TILT CYLINDER AND MAST INSTALLATION
30.30. TILT CYLINDERS

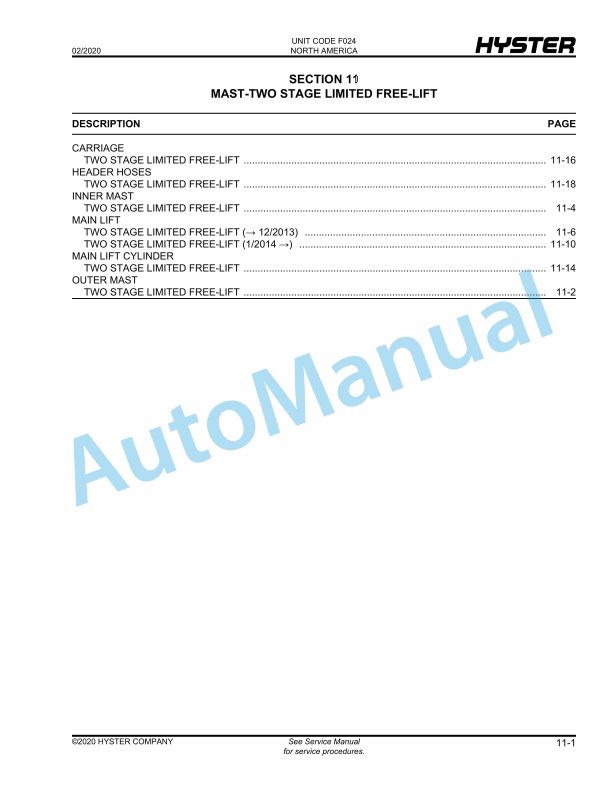

31. Mast-Two Stage Limited Free-Lift
31.1. OUTER MAST TWO STAGE LIMITED FREE-LIFT
31.2. INNER MAST TWO STAGE LIMITED FREE-LIFT
31.3. MAIN LIFT TWO STAGE LIMITED FREE-LIFT ( 12/2013)
31.4. MAIN LIFT TWO STAGE LIMITED FREE-LIFT (1/2014 )
31.5. MAIN LIFT CYLINDER TWO STAGE LIMITED FREE-LIFT
31.6. CARRIAGE TWO STAGE LIMITED FREE-LIFT
31.7. HEADER HOSES TWO STAGE LIMITED FREE-LIFT
32. Mast-Three Stage Full Free-Lift
32.1. OUTER MAST THREE STAGE FULL FREE-LIFT
32.2. INTERMEDIATE MAST THREE STAGE FULL FREE-LIFT
32.3. INNER MAST THREE STAGE FULL FREE-LIFT
32.4. MAIN LIFT THREE STAGE FULL FREE-LIFT ( 12/2013)
32.5. MAIN LIFT THREE STAGE FULL FREE-LIFT (1/2014 )
32.6. MAIN LIFT CYLINDER THREE STAGE FULL FREE-LIFT
32.7. FREE-LIFT THREE STAGE FULL FREE-LIFT ( 12/2013)
32.8. FREE-LIFT THREE STAGE FULL FREE-LIFT (1/2014 )
32.9. FREE-LIFT CYLINDER THREE STAGE FULL FREE-LIFT
32.10. CARRIAGE THREE STAGE FULL FREE-LIFT
32.11. HEADER HOSE AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT – 147.2 INCH LIFT-HEIGHT
32.12. HEADER HOSE AND ATTACHING PARTS THREE STAGE FULL FREE-LIFT – 182.7-218.1 INCH LIFT-HEIGHT
33. OPTIONS
33.1. BACK-UP ALARM
33.2. MIRRORS
33.3. FIRE EXTINGUISHER
33.4. ACCUMULATOR
33.5. STROBE LIGHT (LED)
33.6. AUXILIARY FUNCTION HOSES TWO AND THREE STAGE MASTS
33.7. PRESSURE REGULATOR
33.8. HANG-ON SIDE-SHIFT CARRIAGE AND HOSES WITH FORK POSITIONER ( S/N B514V03281K) ( S/N B513V02254K)
33.9. ATTACHMENT HANG-ON SIDE-SHIFT – FORK POSITIONER ASSEMBLY ( S/N B513V02254K) ( S/N B514V03281K)
33.10. SIDE-SHIFT ASSEMBLY WITH FORK POSITIONER ( S/N B514V03281K) ( S/N B513V02254K)
33.11. SIDE-SHIFT CYLINDER WITH FORK POSITIONER ( S/N B513V02254K) ( S/N B514V03281K)
33.12. HANG-ON SIDE-SHIFT CARRIAGE AND HOSES WITHOUT FORK POSITIONER
33.13. HANG-ON SIDE-SHIFT CARRIAGE AND HOSES WITH BACKREST AND FORK POSITIONER (S/N B513V02255K ) (S/N B514V03282K )
33.14. ATTACHMENT HANG-ON SIDE-SHIFT ASSEMBLY – WITHOUT FORK POSITIONER
33.15. SIDESHIFT CYLINDER WITH AND WITHOUT FORK POSITIONER
33.16. ATTACHMENT CARRIAGE WITH FORK POSITIONER AND BACKREST (S/N B513V02255K ) (S/N B514V03282K )

Rate this product
