Komatsu PC900LC-11 Hydraulic Excavator Field Assembly Manual GEN00251-01

$20.00

Type Of Manual: Field Assembly Manual
Manual ID: GEN00251-01
Format: PDF
Size: 35.6MB
Number of Pages: 216

Category: Komatsu Operation and Maintenance Manual PDF

Model List:
- PC900LC-11 Hydraulic Excavator

1. Cover
2. FOREWORD
3. CONTENTS
4. SAFETY INFORMATION
4.1. SAFETY NOTICE FOR OPERATION
4.2. PRECAUTIONS TO PREVENT FIRE
4.3. ACTIONS IF FIRE OCCURS
4.4. PRECAUTIONS FOR DISPOSING OF WASTE MATERIALS
4.5. ACTIONS TAKEN TO MEET EXHAUST GAS REGULATIONS
4.6. PRECAUTIONS FOR DEF
4.7. STORE AdBlue/DEF
4.8. PRECAUTIONS FOR HANDLING HYDRAULIC EQUIPMENT
4.9. PRECAUTIONS FOR DISCONNECTION AND CONNECTION OF PIPINGS
4.10. PRECAUTIONS FOR HANDLING ELECTRICAL EQUIPMENT
4.11. PRECAUTIONS FOR HANDLING FUEL SYSTEM EQUIPMENT
5. HANDLING OF TIEOFF ANCHOR POINTS
6. BE CAREFUL NOT TO HIT BUCKET WHEN RETRACTING WORK EQUIPMENT
7. SPECIFICATIONS
8. PRECAUTIONS FOR FIELD ASSEMBLY
9. DISPOSAL OF REMOVED PARTS
10. ASSEMBLY PROCEDURE, FACILITY USED, AND SCHEDULE
11. KIT LAYOUT DIAGRAM
12. FLOW OF MAIN FIELD ASSEMBLY
13. TRANSPORTATION PACKING STYLE
14. FIELD ASSEMBLY TOOLS LIST
15. TIGHTENING TORQUE
16. COATING MATERIALS
17. SELECTION OF WIRE ROPES USED FOR ASSEMBLY
18. SELECTION OF NYLON SLINGS USED FOR ASSEMBLY
19. ASSEMBLY OF CHASSIS
19.1. A1 Replacement of return filter (Standard > Flushing)
19.2. A2 Installation of R.H. and L.H. track frames
19.3. A3 Installation of travel piping
19.4. A4 Installation of step
19.5. A5 Sticking revolving frame sheets
19.6. A6 Installation of L.H. side step
19.7. A7 Installation of R.H. side step

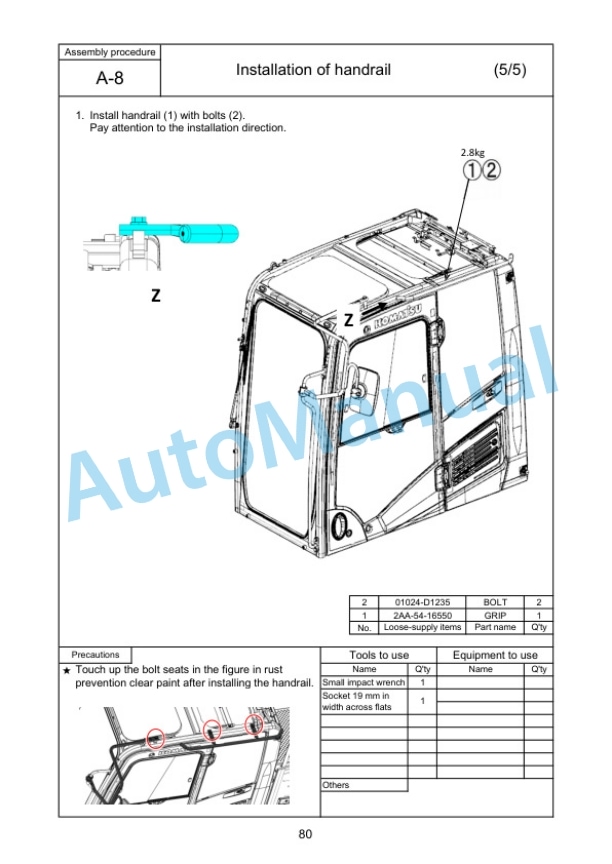

19.8. A8 Installation of handrail
19.9. A9 Installation of R.H. rearview mirror
19.10. A10 Installation of L.H. rearview mirror
19.11. A11 Installation of R.H. side step
19.12. A12 Installation of swivel travel piping
19.13. A13 Sticking counterweight sheets
19.14. A14 Assembly procedure of KomVision camera
19.15. A15 Installation of counterweight revolving lamp (if equipped)
19.16. A16 Installation of counterweight rear lamp
19.17. A17 Installation of counterweight
19.18. A18 Installation of cab top step lamp
19.19. A19 Installation of cab revolving lamp (if equipped)
19.20. A20 Bleed air from hydraulic pump
19.21. A21 Bleed air from travel motor
19.22. A22 Installation of travel piping covers
19.23. A23 Installation of track frame undercovers
19.24. A24 Installation of travel motor guards
19.25. A25 Adjustment of track tension
19.26. A26 Installation of fire extinguisher (if equipped)
19.27. A27 Installation of transportation jigs (muffler)
20. Assembly of work equipment
20.1. B1 Release pressure remaining in hydraulic circuit
20.2. B2 Installation of boom cylinder to revolving frame
20.3. B3 Installation of boom cylinder hoses
20.4. B4 Bleed air from cylinder
20.5. B5 Installation of dust seal to boom foot
20.6. B6 Installation of boom assembly

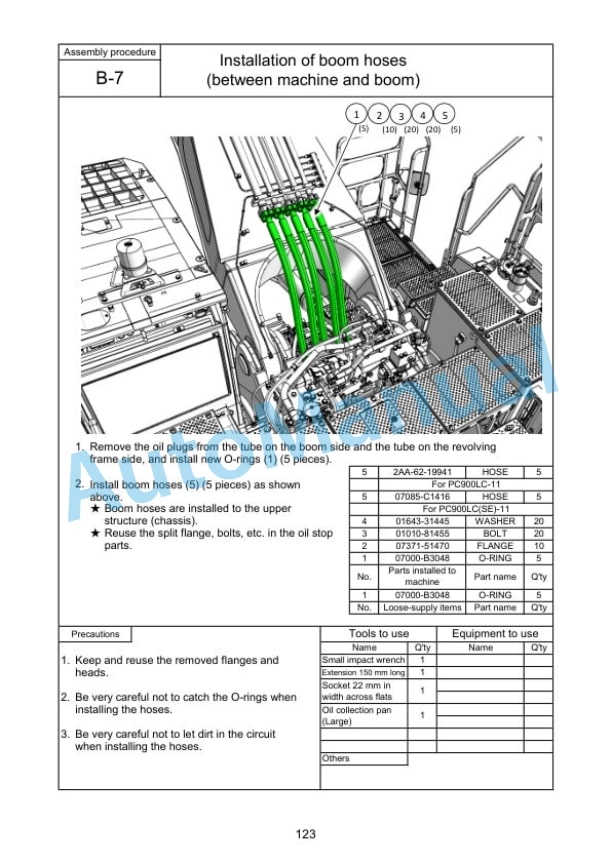

20.7. B7 Installation of boom hoses (between machine and boom)
20.8. B8 Installation of boom cylinder
20.9. B9 Installation of arm assembly
20.10. B10 Installation of hoses between boom and bucket cylinder
20.11. B11 Installation of bucket assembly
20.12. B12 Clearance standard for installation of work equipment
20.13. B13 Installation of work equipment grease piping
20.14. B14 Installation of work equipment lamp wiring
20.15. B15 Greasing after assembling work equipment
21. . Installation of counterweight remover (Optional)
21.1. D1 Sticking counterweight sheets (Machine with optional remover)
21.2. D2 Sticking revolving frame sheets
21.3. D3 Installation of counterweight remover
21.4. D4 Greasing
21.5. D5 Installation of counterweight
21.6. D6 Assembly procedure of KomVision camera
22. Testing and maintenance procedures after completing assembly
22.1. M1 Check hydraulic tank oil level and add oil
22.2. M2 Flushing of hydraulic circuit
22.3. M3 Replacement of return filter (Flushing > Standard)
22.4. M4 Check of oil and coolant levels at each section
22.5. M5 Places to touch up after field assembly

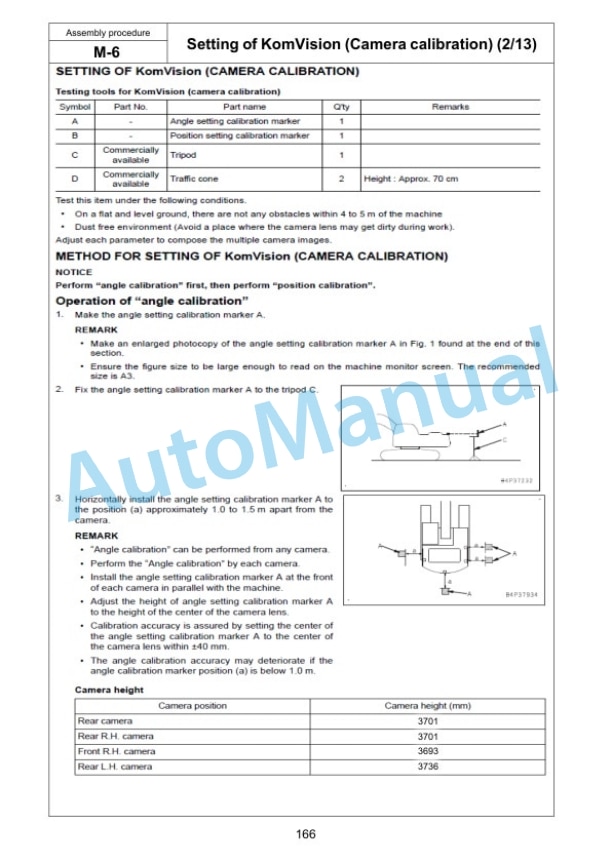

22.6. M6 Setting of KomVision (Camera calibration)
22.7. M7 Inspection method of 12 m visibility (KomVision)
22.8. M8 Check display of failure code
22.9. M9 Installation of fuel tank oil filler lock
23. Field assembly inspection check sheet
