Komatsu D155CX-8 Bull Dozer Field Assembly Instruction GEN00222-00

Type Of Manual: Field Assembly Instruction
Manual ID: GEN00222-00
Format: PDF
Size: 2.2MB
Number of Pages: 35

Name: Komatsu D155CX-8 Bull Dozer Field Assembly Instruction GEN00222-00
Price: 20.00 USD
Availability: InStock

$20.00

1. Cover
2. Preface
3. CONTENTS
4. SPECIFICATIONS
5. PRECAUTIONS FOR FIELD ASSEMBLY
6. DISPOSAL OF REMOVED PARTS
7. STYLE FOR TRANSPORTATION
8. NECESSARY TOOLS
9. TIGHTENING TORQUE
10. SELECTION OF WIRE ROPES USED FOR ASSEMBLY

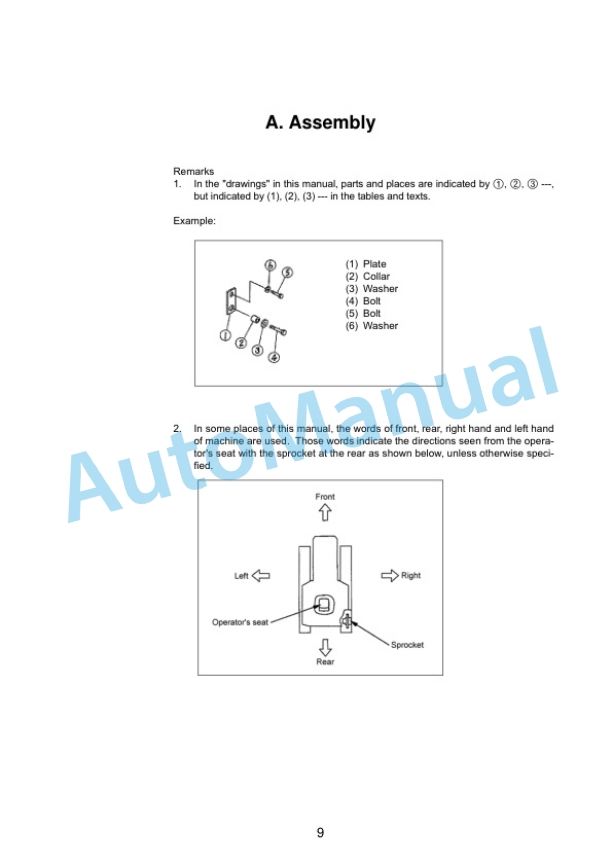

11. Assembly
11.1. A1 Check of oil and coolant levels
11.2. A2 Bleeding air from counterweight hydraulic cylinders and winch (When pipelayer attachment is installed)

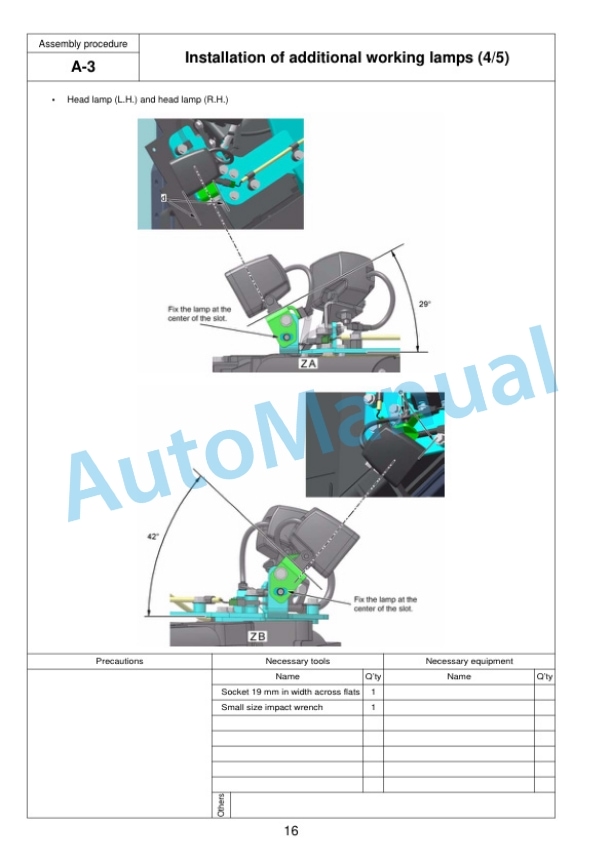

11.3. A3 Installation of additional working lamps
11.4. A4 Installation of fire extinguisher
11.5. A5 Adjustment of mirror
12. CHECK AND MAINTENANCE PROCEDURES AFTER COMPLETION OF ASSEMBLY

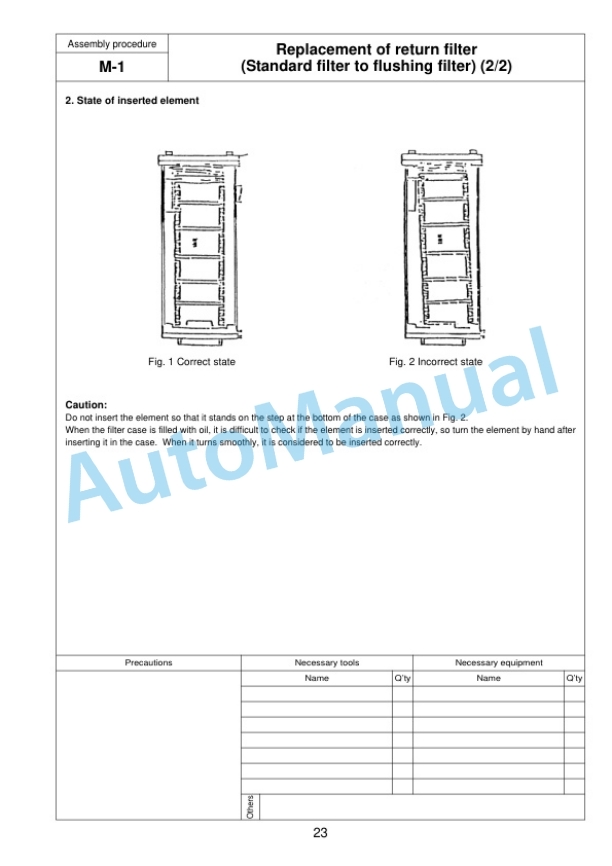

12.1. M1. Replacement of return filter (Standard filter to flushing filter)
12.2. M2. Flushing of hydraulic circuit, and bleeding air from counterweight cylinders and winch (Part 1) (When pipelayer attachment is installed)
12.3. M3. Replacement of return filter (Flushing filter to standard filter)
12.4. M4. Bleeding air from counterweight cylinders and winch (Part 2) (When pipelayer attachment is installed)
12.5. M5. Error code
